Detailed Product Description

Operation  :PLC Control System Makes Labeling Machine Easy To OperateMaterial:Labeling Machine's Main Body Is Made Of SUS304 Stainless Steel
Labeling Speed:60-300pcs/minHeight Of Object:25-95mm
Accuracy Of Labeling:±0.5mmPower Supply:220V 50/60HZ 2KW

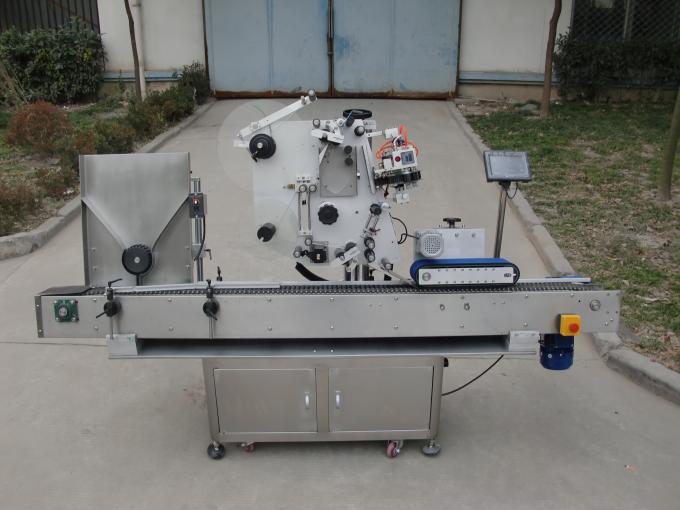

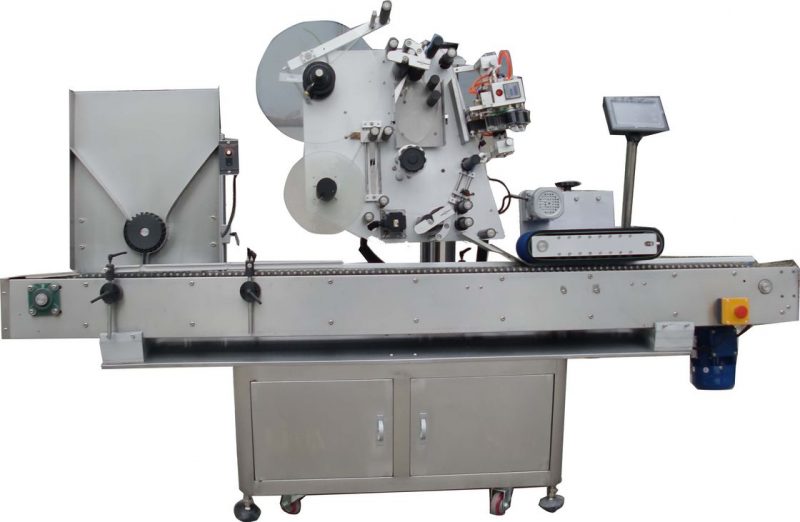

10ml small liquid bottle Full - Automatic vial labeling machine servo motor PLC control


The whole machine is made of high class stainless steel and aluminum alloy using anodizing treatment, it will never rust, which conform to GMP requirements. Marking head adopts imported high speed servo motor, to ensure the labeling speed and accuracy. All of the photoelectric control systems are adopted high-end products importing from Germany, Japan and Taiwan.


This Full-Automatic & Competitive price vial labeling machine servo motor PLC controlis made to label all kinds of small round bottles that cannot stand steady, like pet bottle,penicillin bottle and olive oil bottles. In order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.


OperationTouch screen operation , PLC control system,a truly human-machine communication system is easy to learn and simple to manage.
MaterialLabeling machine's main body is made of SUS304 stainless steel
ConfigurationOur labeling machines adoptwell known Japanese, German, American, Korean or Taiwan brand parts
FlexibilityWe can also add automatic feeding facility to machinery inaccordance with customers special requests.

Technical Parameters

NameVial Labeling Machine
Labeling Speed60-300pcs/min
Height of Object25-95mm
Thickness of Object12-25mm
Label Roller Inside Diameter76mm
Label Roller Outside Diameter350mm
Accuracy of Labeling±0.5mm
Power Supply220V 50/60HZ 2KW
Gas Consumption of Printer5Kg/m2(if add coding machine)
Size of Labeling Machine2500(L)×1250(W)×1750(H)mm
Weight of Labeling Machine150kg


1. What shall I do if our bags not that heavy, it may move right and lefton the conveyorthen make the labeling not that accurate?

►We can add the vacum suction under the conveyor which will ensure the accuracy

2. What should we notice when we make the labels?

►The maximum size of the label roller out side diameter is 320mm; the minimum of the label roller inside diameter is 76mm.

► The direction of the labels: the image should be upward, if without coding the data and exp, the labels roll follow clockwise direction; if with coding, the labels roll should follow anti-clockwise direction.

Trust us,VKPAK Labeling Machinery, Your good choice! Quick response to your request!

To serve you, with your sincere cooperation and common development, is our highest pursuit of habitats.
