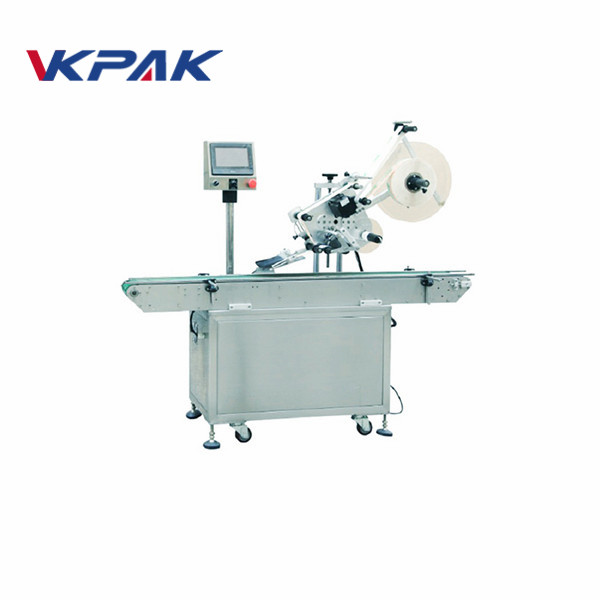

Self Adhesive Labelling Machine for Ice Brick Top Side
Detailed Product Description

Function:Top LabelingLabel Type:Sticker / Self Adhesvie
Driven Type:ElectricProduction Speed:1-50m/min
Labeling Precision:±1mmLabel Height Max.:100mm
Weight:180KGUsing Voltage:220V 50HZ 1500W

Self Adhesive Automatic Labelling Machine for Ice Brick Top Side

Technical Parameters

Production speed1-50m/min
Labeling accuracy±1mm
Label max width130mm
Label inner diameter76.2mm
Label outer diameter330mm
Outline sizeL2000×W700×1400mm
Weight180KG
Using power220V 50HZ 1500W
Bottle diameter10-300mm

Product Characteristic

1 ,It’s available to label on top,the perfect design and the advanced controlling and checking system guarantee it is labeled speedily and precisely. The advanced and kind human interface, interface freely and the on-line helping system make it easy to operate.

2 ,The famous high precise serve motor drives the labeling head and controls to convey the labels

The separated clutch makes the strain more balanced.It ensures accurate labeling

3 , The controlling system adopts SIMEMS and famous panel, the human interface can be operated in Chinese and English

4 ,It is convenient to adjust the labeling head, labeling speed is automatically synchronized with conveyor speed to ensure precisely labeling.

5 , Labeling dynamic entrainment institutions: clamp the product and apply label on product to improve labeling precison

Application

The machine is apply to the Daily Chemical and Food Industry, Labeling max width is 130mm, Label inner diameter is 76.2mm, max outer diameter is 330mm.

Labeling organizations

Labeling head 6-dimensional space adjustment, the angle can be adjusted labeling, easy to paste all kinds of special products;

Elastic or flexible scraper brush, sponge roller extrusion without power, to ensure smooth labeling;

Machine used to strengthen the rigidity of the mechanical structure design, simple, stable

Labeling system for reference

Tag: top label applicator, flat surface label applicator
