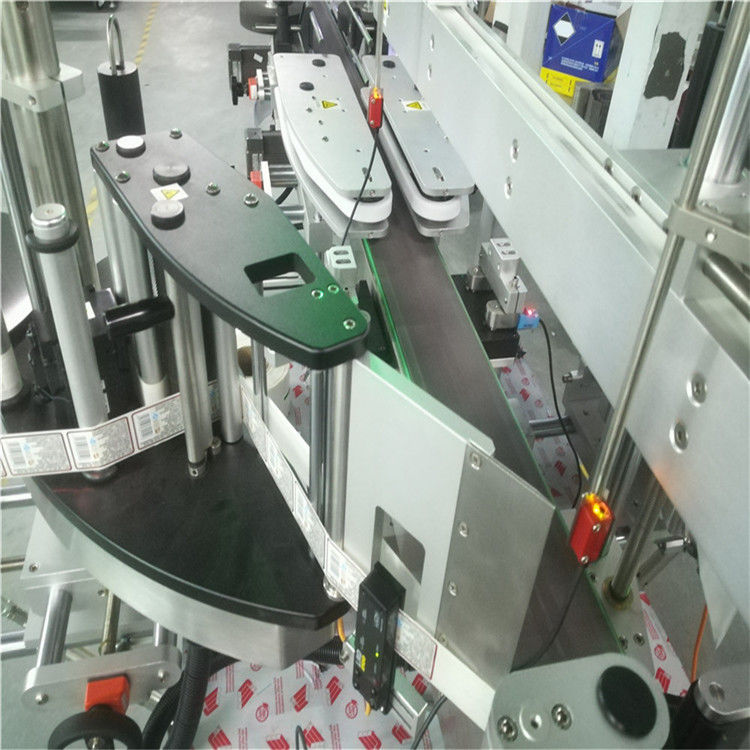

Automatic Double Side Sticker Labelling Machine For Square Round Flat Bottle

Detailed Product Description

Power:	2300W	Production Speed:	45m/min
Label On Bottle Accuracy:	±1mm	Label Max Width:	190mm
Weight:	580KG	Suitable Label Material:	Adhesive Sticker Labeling
Voltage System:	380V / 220V	Eletrics Parts:	Imported Brand

Automatic Double Side Sticker Labelling Machine For Square Round Flat Bottles for Beverage / Food / Chemical industries

Technical Parameter

Production speed	45m/min
Labeling accuracy	±1mm
Label max width	190mm(can be raised according to the require)
Bottle diameter	Thickness≥30mm height≤500mm
Label inner diameter	76.2mm
Label outer diameter	Max330mm
Outline size	L3048×W1700×1500mm
Weight	380KG
Using power	380/220V 50HZ 3000W

Application

sticker labeling machine is suit for round,flat,cone shape products in Cosmetic, food, pharmaceutical and other light industries,labeling on one size one two sides all ok as client need

Advantages

We can design according to your labeling requirement

1. fast speed:6000-8000B/H(speed adjustable,the label is smaller, the speed is faster)

2. high labeling accuracy : ±1mm within(eliminate the error of bottle and labels)

3. The machine can save 20 sets parameters for ever

4. Labeling head with eight orientations adjustment,convient to adjust the angle what you want

5. Machine more stable,convient to change the new products and faster

6. Widely suit for flat bottle , square bottle and some cone bottle’s double sides labeling, no need to change the any parts

7. Transparent label can be sticked without bubble and adhesive label without wrinkle

8. Spare parts with high precision processing

9. Each labeling head with one control system,labeling more stable

10. using new style machine head (patent design),convient to adjust,new design,good stability

11. This sticker labeling machine controlled by PLC system and use touch-screen control operating system.

12. Main parts used improted brand ,increase stablitily and durable of machine

13. Changing different size bottle,only need to adjust the machine

Product Details ( flat bottle and round bottle )
