Automatic Double Side Sticker Labelling Machine With Turntable

Detailed Product Description

Labeling Speed:	60-200pcs/min	Function:	Ahesive Sticker Labeling
Height Of Object:	30-280mm	Thickness Of Object:	20-200mm
Height Of Label:	15-140mm	Length Of Label:	25-300mm
Accuracy Of Labeling:	±1mm	Label Roller Inside Diameter:	76mm
Label Roller Outside Diameter:	320mm	Power Supply:	220V 1.5HP 50/60HZ (if The Power Supply Different, A Transformer Is Needed)
Compressed Air Consumption:	5Kg/cm2 (if Add The Coding Machine)	Key1:	Customized Joyshaker Plastic Water Bottle Label
Key2:	Plastic Bottle Label	Key3:	Plastic Bottle Label Material
Service:	Provide You Lifelong Free Technial Support

Best quality object detect magic eye automatic double side sticker labelling machine with turntable

Features:

1. Well-known motor drive is matched with the complete machine that ensures a stable and reliable label-feeding speed.

2. The jockey for position type adjustment, different workpiece labels switching simple

3. High accuracy and high speed, dispensing & labeling automatically printing date on the bottle at the same time

4. client can choose the option according to your requirement.Coding machine is the code printer, to print the series no. and production date etc. if any.

5.Adopts for screw and star wheel cooperate,ensure high speed operation,products smooth and stable

Application:

Best quality object detect magic eye automatic double side sticker labelling machine with turntableis suitable for all kinds of round cylinder shape objects as the pharmaceutical, food, cosmetic and other industries, the circumference of regular and irregular containers, flat surface or round bottles, especially for top and side labeling.

Technical Parameters:

Name	Best quality object detect magic eye automatic double side sticker labelling machine with turntable
Labeling Speed	60-200pcs/min
Height of Object	30-380mm
Thickness of Object	20-200mm
Height of Label	15-140mm
Length of Label	25-300mm
Label Roller Inside Diameter	76mm
Label Roller Outside Diameter	200mm
Accuracy of Labeling	±1mm
Power Supply	220V 50/60HZ 3.5KW
Gas Consumption of Printer	5Kg/m2(if add coding machine)
Size of Labeling Machine	2800(L)×1450(W)×1360(H)mm
Weight of Labeling Machine	180kg

Main configuration:

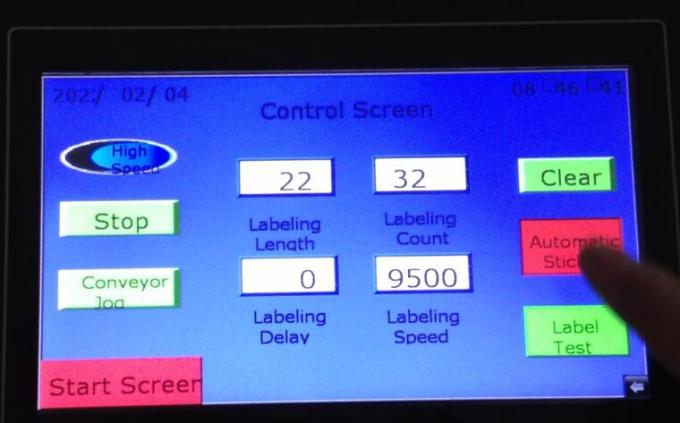

	touch screen: MITSUBISHI(Japan) press the button on the screen Press [Chinese/English] into Chinese or English Language Front Label Setting Front and backLabel operation

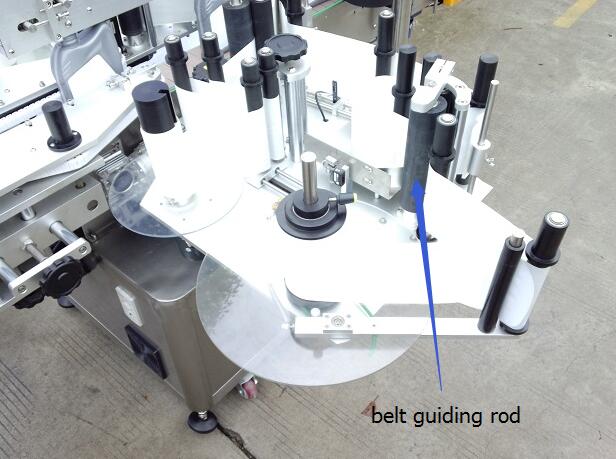

belt guiding rob: smooth rob easy to operator protect paper belt to break

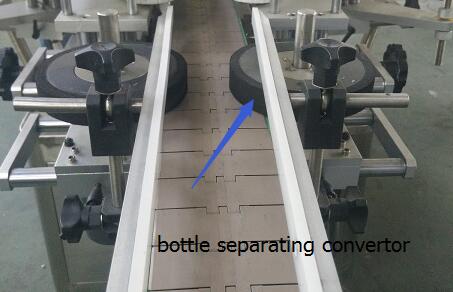

	bottle separating convertor: keep objectputing in line keep the speed constantly

Tag: bottle sticker labeling machine, automatic label applicator machine
