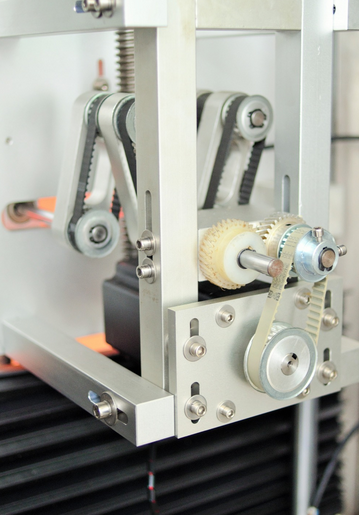

Cap And Body Sealing Shrink Sleeve Labeling Machine With Two Heads
Detailed Product Description

Input Power::2.0KWInput Voltage::3Φ380V/220VAC
Speed:100 Bs/minSize Of Host Machine:2000(L) X 900(W) X 2000(H)
Applicable Diameter Of Bottle Body:Φ28mm-Φ125mmApplicable Length Of Label::30mm-250mm

Cap and body sealing shrink sleeve label machine with two heads HTP-350P2

Feature of pvc shrink sleeve applicator label for bottles cap labeling machine :

1. High Stability of the mechanical structure. Wholeframework of the overall use of stainless steel, solidand stainless.
2. Aprotective cover and man-machine interfaceoperating system, the whole machine operates morehuman-based, more simple control and use.
3. The machine can be worked with the whole production line and fully operated with the whole vline.
4. Unique knife plate design, within the scope of ourspecification, can avoid changing it.
5. Forced sleeve-label style, very economical.
6. Overall rotation system, can be linked to adjustment, suitable forr various label rolls'specification.
7. Lnner dianeter of the label roll: 5"-10", can beadjusted differently.

Input Power:5.5KW
Input Voltage:3Φ380V/220VAC 50HZ
Cap & Body sleeve Speed350bs/min
Size of host machine”3300(L) X 1100(W) X 2100(H)
Bottle type:Round, Square, Flat, Curve
Label Length:25mm-200mm (accept customized)
Label thickness0.03mm-0.13mm
MaterialsPVC. PET. OPS
Core Inner Dia:5”-10”(Free adjustment)
Core Outer Dia:500mm-600mm
Weight:Roughly 850kg
Cutter Scope50-95mm (customized)


1. Offer you professional labeling sulution according to your specific labeling requirements.
2. Supply you high quality labeling machine after placing order.
3. Try to make the delivery time as short to meet your needs.
4. Provide you lifelong free technical support after you receiving our machine.
