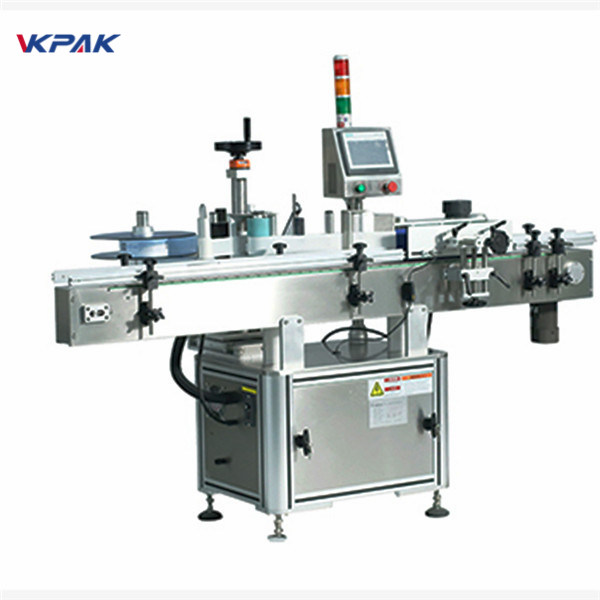

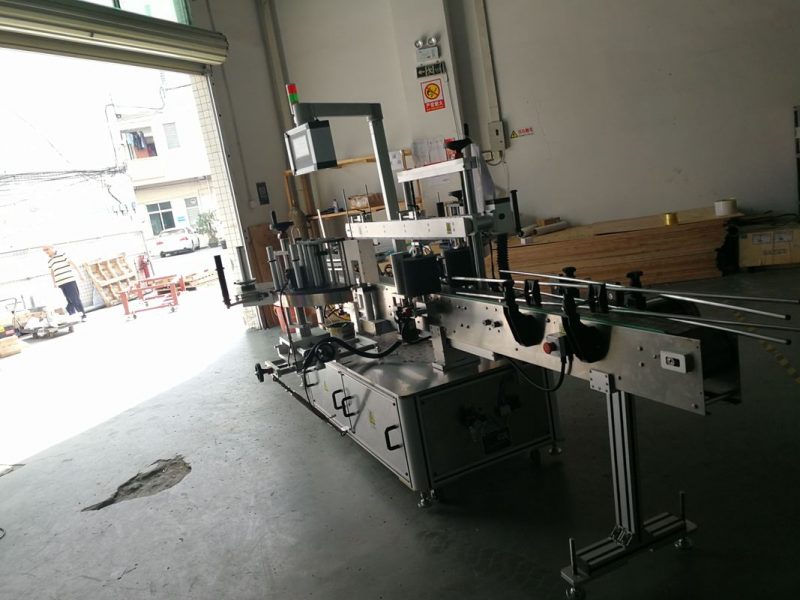

Double-face Round Bottle Sticker Labeling Machine

Detailed Product Description

Labeling Product Width:	30-100mm	Machine Warranty:	1 Year
Label Width:	190mm	Packaging:	Bottles,container,jar,
Accuracy:	±0.8mm	Mc Weight:	400KG

Self-adhesive sticker Double-face automatic labeling machines

Features

1, the machines are suitable for single, double side of flat sides labeling, and party three sides or all around the bottle surround type labeling

2, Chinese and English touch the operating system and realize the man-machine dialogue, easy operation
3, with the German Siemens PLC and servo motor closed-loop control, ensure the labeling stability, high reliability

4, 750 W high power, big torque super small inertia send standard motor, poster speed can reach 45 m/min

5, send labeling module can be 8 d adjustment, header but different Angle adjustment, change different sizes of products regulation simple and quick

6, level 3 above precision extension spring to mark the clutch, make tags tension more stable, run more smoothly, high speed labeling precision is high

7, with pressure by dual made stem support, the double screw chain transmission, easy adjustment

8, separate pressure with article mat, products in different location to the pressure setting, but also conducive to pressure with heat dissipation

9, plastic with the polymer material, the special design, ensure that was posted an accurate positioning, improve the labeling precision, 2 d space adjustment, adjustable space is large

10, may according to the customer needed to connect line flow operation, can also according to the customer request special design

Application

1 , The machine applys to one side/double facelabeling of all kinds of quadrate & flat bottles in pharmacy, food beverage, daily chemical industry etc.

2 , Can quickly switch to a different size bottle , simple to cooperate,orderliness beautiful, clean, easy to wash

3 , Applicable to all industries double sides labeling products,and round bottle labeling such as daily chemicals, petroleum, machine oil, cleaning supplies, food and beverage, pharmaceutical and so on.

4 , Special Note: 1, such as double sides labeling of some irregular oval round bottle ,there may add an additional fixed mold labeling, the bottle is too thin, as the case may be labeling not pretty, high unqualified . The price need discussion

Advantages

1 , This machine suit for double sided labeling of the square bottle,flat bottle and round bottles.

2 , Installed round bottle institution on it ,realize round bottle labeling ,plus one sensor ,can realize orientation labeling of the round bottles.The speed is around 2500B/H,max label high 168mm (accept custom).

3 , Using 82.6mm chain board width ,Suit for diameter / width 30-110mm bottles,flat bottle,round bottle,square bottle and some irregular bottles.

4 , Labeling head: new design,more stable,width 200mm,suit max label high 190mm,eight orienation adjustment.

5 , Machine can work with ribbon date printer and injek printer.

6 , When you have a lot of kinds of bottles,when labeling,only need to adjust machine.

7 , Only need to adjust oval bottle synchronous chain correcting device,for oval bottle.

Technical Parameters

Production speed	45m/min
Labeling accuracy	±1mm
Label max width	190mm
Bottle diameter	30-100mm
Label inner diameter	76.2mm
Label outer diameter	Max330mm
Outline size	L2000×W700×1400mm
Air source	4-6KG 30L/MIn
Using power	220V 50HZ 1200W
