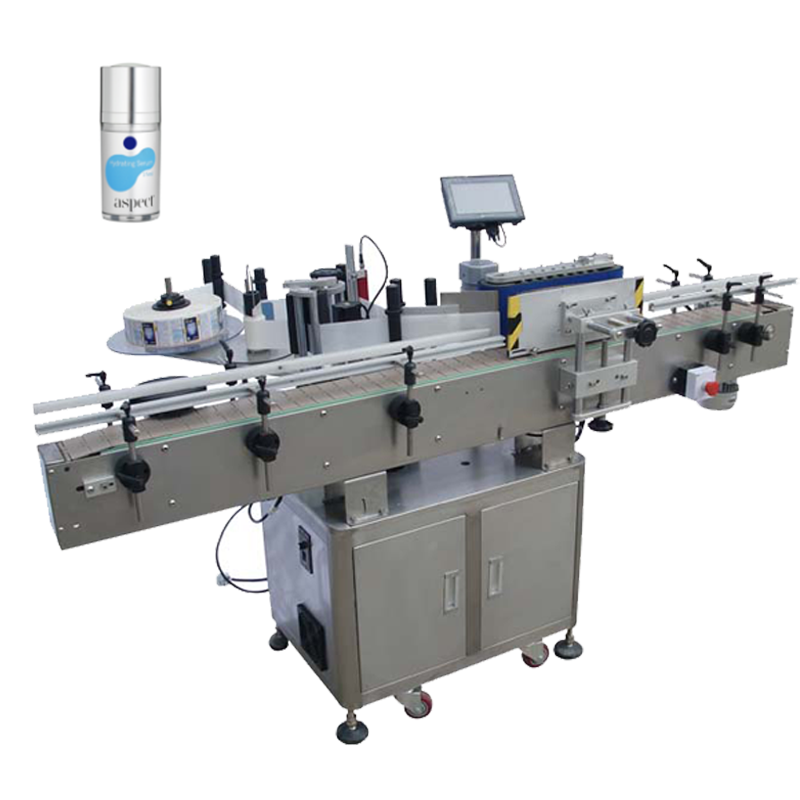

Filling Capping Auto Labelling Machine
Detailed Product Description

Material:SUS304Length Of Label:25-300mm
Power Supply:110/220V 1.5HP 50/60HZMachine Size:2800(L)X1450(W)X1360(H)mm
Roll Outside Diameter:340mmProduct Name:Filling Capping And Automatic Labeling Machine For Sticker Self Adhesive Double Side

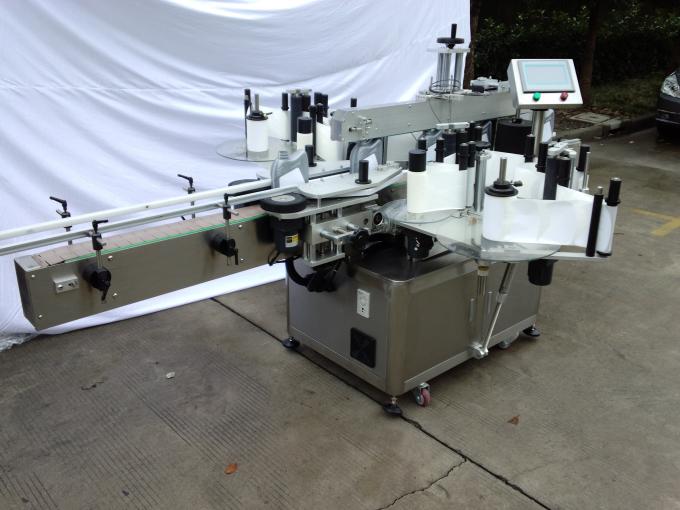

Filling Capping Auto Labelling Machine 110V / 220V With PLC Control System

Features:

OperationPLC control system makes labeling equipment easy to operate
MaterialLabeling equipment's main body is made of SUS304 stainless steel
ConfigurationOur labeling equipments adopt well known Japanese, German, American, Korean or Taiwan brand parts
FlexibilityClient can chose to add printer and code equipment; can chose to connect with converyer or not.

Technical Parameters:

Nameautomatic labeling machine tabletop labeling manual style
Labeling Speed60-350pcs/min
Height of Object30-350mm
Thickness of Object20-120mm
Height of Label5-180mm
Length of Label25-300mm
Label Roller Inside Diameter76mm
Label Roller Outside Diameter420mm
Accuracy of Labeling±1mm
Power Supply220V 50/60HZ 3.5KW
Gas Consumption of Printer5Kg/m2(if add coding equipment)
Size of Labeling equipment2800(L)×1650(W)×1500(H)mm
Weight of Labeling equipment180kg

Packaging & Shipping

  • Port: Shanghai
  • Packaging details: wooden case export packing
  • Delivery detail: Normally 12-15 days after receipt of payment

Our Services

1. Offer you professional labeling sulution according to your specific labeling requirements.

2. Supply you high quality labeling equipment after placing order.

3. Try to make the delivery time as short to meet your needs.

4. Provide you lifelong free technial support after you receiving our equipment.

FAQ

1. What kind of labeling equipment do you have?

Dear Customer, we have automatic and semi-automatic labeling equipment for round containers and flat surface.
Some model for one label and others for two labels or even more. And we can design the equipment according to
your specific labeling situation. Thus, pls fell free to send us your labeling requirements, we'll provide you satisfying labeling solution.

2. Could we add coding equipment to print date and lot No.?

Yes, you can chose to add coding equipment to print the letters and No. you want.
It's hot stamp and can print at most three lines.

3. What information should we supply to check the suitable model?

Pls send us picture of your container and label, as well as the container and label size.
Pls also tell us what kind of label you use, if possible. (For exampe, self-adhesive, could glue, hot glue, etc. whether the label are in roll or pieces.)
Then, we'll let you check the suitable model.

VKPAK provide the following services to make you rest assured and process comfortably and smoothly:

1. Technical design and research
2. Sales & Customer service
3. Export & Shipping
4. Training & Commissioning
5. After sale service

Tag: auto labelling machine, sticker label machine
