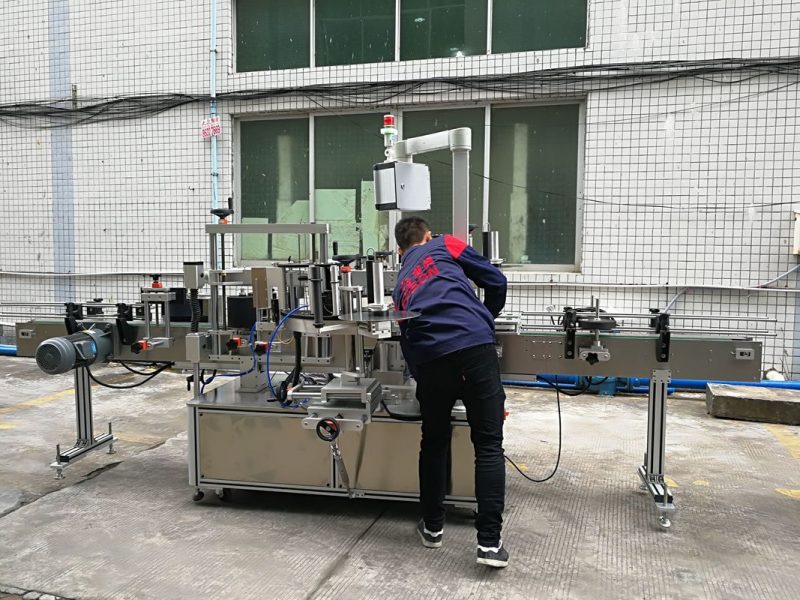

Fully Automatic Water Bottle Labeling Machine For Glass / PET Bottle

Detailed Product Description

Eletric Power System:	2300W 220V	Packaging Material:	Self Adhesive Label
Label On Bottle Accuracy:	±1mm Within	Label Max Width:	190mm
Weight:	580KG	Equipment Type:	Adhesive Sticker Labeling
Automatic Grade:	Full Automatic	Eletrics Parts:	Imported Brand
Machine Size:	3048mm X 1700mm X 1500mm	Warranty:	12 Months

Full Automatic Water Bottle Labeling Machine for Glass/PET Bottle

Technical Parameter

Production speed	45m/min
Labeling accuracy	±1mm
Label max width	190mm(can be raised according to the require)
Bottle diameter	Thickness≥30mm height≤500mm
Label inner diameter	76.2mm
Label outer diameter	Max330mm
Outline size	L3048×W1700×1500mm
Weight	380KG
Using power	380/220V 50HZ 3000W

Application

1 , Automatic Self adhesive sticker labeling machine for single side label to apply labels on single side of square, round or flat products like bottles, glasses bottles, etc

2 , The labeling equipment used in Cosmetics, Drinks, Cleaning, Detergent, Skin Care Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning, Dairy Products

Advantages

1 , Changing the bottle very fast

2 , Labeling speed: 6000-8000B/H(speed adjustable, the label is smaller, the speed is faster)

3 , Machine strickly made according to your labeling requirement

4 , Machine with high labeling accuracy : ±1mm within(eliminate the error of bottle and labels)

5 , Labeling head with eight orientations adjustment, convient to adjust the angle what you want

6 , Sticker Machine is more stable, convient to change the new products and faster

7 , Widely suit for cone bottle’s double sides labeling, no need to change the any parts

8 , Using new style machine head (patent design), convient to adjust, new design, good stability

9 , Transparent label can be sticked without bubble and adhesive label without wrinkle

10 , Changing different size bottle,only need to adjust the machine

11 , Spare parts with high precision processing and smoothly

12 , Each labeling head with one control system,labeling more stable

13 , This sticker labeling machine controlled by PLC system and use touch-screen control operating system.

14 , Main parts used improted brand , increase stablitily and durable of machine
