High Labeling Speed Round Bottle Labeling Machine For Automatic Dairy & Juice

Detailed Product Description

Type:	High Labeling Speed Round Bottle Sticker Labelling Machine For Automatic Dairy & Juice Jar	Advantage:	High Speed
Labeling Speed:	20-200pcs/min	Model:	Juice Bottle Labeling Machine
Bottle Type:	Automatic Round Bottle Labeler Jar	Label Accuracy:	+/- 1/32"
Size Of Machine:	2000(L)*1100(W)*1300(H)mm	Height Of Label:	15-140mm
Length Bof Label:	25-300mm

High Labeling Speed Round Bottle Sticker Labelling Machine For Automatic Dairy & Juice Jar

Application:

High Labeling Speed Round Bottle Sticker Labelling Machine For Automatic Dairy & Juice Jaris suitable for front/back, side panel and wrap label applicator. There is arugged, reliable, economically priced pressure sensitive labeling system . The dairy & juice jar and bottle label sticker machineintegratesinto a automatic production line.

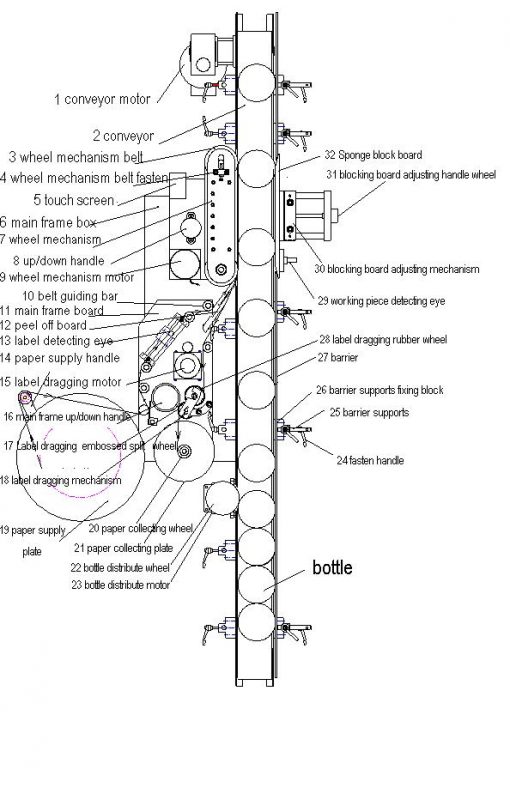

Schematic diadram:

NO.	part	NO.	part
01	Conveyor motor	20	Paper collecting wheel
02	conveyor	21	Paper collecting plate
03	Wheel belt	22	Bottle distribute wheel
04	Wheel belt fasten base	23	Bottle distribute motor
05	Touch screen	24	Fasten handle
06	Main frame box	25	Barrier supports
07	Wheel mechanism	26	Barrier supports fixing part
08	up/down adjusting handle wheel for wheel mechanism	27	Barrier
09	Wheel mechanism motor	28	Dragging label rubber wheel
10	Belt guiding bar	29	Working piece detect photoelectric eye
11	Main frame board	30	Block board adjusting mechanism
12	Peel off board	31	Block board adjust handle wheel
13	Label detect photoelectric eye	32	Sponge block board
14	Paper supply brake handle
15	Label dragging motor
16	Main frame up/down adjusting handle wheel
17	Label dragging embossed split wheel
18	Label dragging mechanism
19	Paper supplying plate

Technical Parameters:

Name : High Labeling Speed Round Bottle Sticker Labelling Machine For Automatic Dairy & Juice Jar
Labeling Speed : 20-200pcs/min
Height of Object : 30-280mm
Thickness of Object : 30-120mm
Height of Label : 15-140mm
Length of Label : 25-300mm
Label Roller Inside Diameter : 76mm
Label Roller Outside Diameter : 380mm
Accuracy of Labeling : ±1mm
Power Supply : 220V 50/60HZ 3.5KW
Gas Consumption of Printer : 5Kg/m2(if add coding machine)
Size of Labeling Machine : 2800(L)×1650(W)×1500(H)mm
Weight of Labeling Machine : 120kg

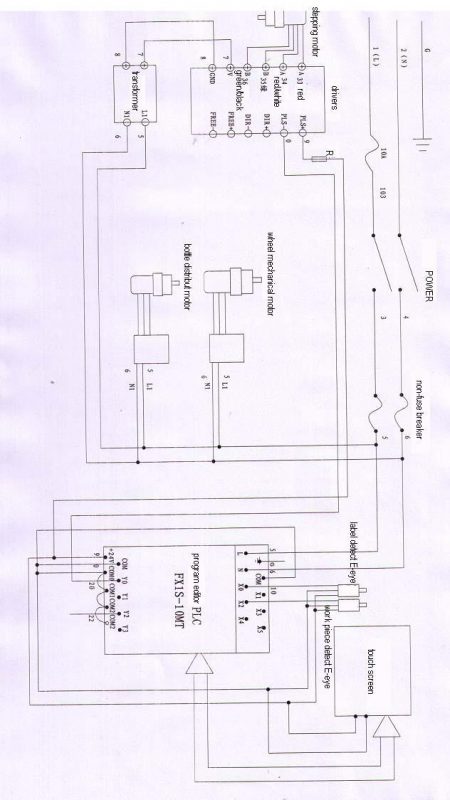

Circuit diadram:

power supply: 220V 1.5kw 50/60hz
