China High Speed Wrap Around Labelling Machine For Oval Bottle 220V supplier
Detailed Product Description

Capacity Per Hour:Round Bottle 2500B/H Around ,oval / Flat Bottle 6000-8000B/HLabeling Precision:±1mm
Label Height Max.:190mmPaper Roll Inner Diameter:76.2mm
Label Outer Diameter:330mmPackaging Material:Adhesive Labels
Electric Machine:Imported MotorDomain:Bevarage/Drinks/Daily Chemical

Automatic Sticker Front-Back-Wrap Labelers for round / flat / square / oval bottle

Suitable for

1 ,This machine suit for front and back labeling of the square bottle,flat bottle ,oval bottle and round bottles (when the label size is not over 1/3 girth of round bottle) speed 5000-8000B/H

2 ,It can install round bottle institution on it ,realize wrap around labeling of the round bottle,plus one sensor ,can realize orientation labeling of the round bottles.The speed is around 2500B/H,max label high 168mm (accept custom)

3 ,Suit for diameter / width 30-110mm bottles,flat bottle,round bottle,square bottle and some irregular bottles

4 ,Labeling head: new type,width 200mm,suit max label high 190mm,eight orienation adjustment

5 ,We can provide ribbon date printer and injek printer for options

6 ,When you have a lot of kinds of bottles,when labeling,only need to adjust institution

7 ,If you also have oval bottle,then only need to adjust oval bottle synchronous chain correcting institution , easy to opearate

8 , We can also design according to your requirement

Technical Parameters

Production speed45m/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameter30-100mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL2000×W700×1400mm
Air source4-6KG 30L/MIn
Using power220V 50HZ 1200W

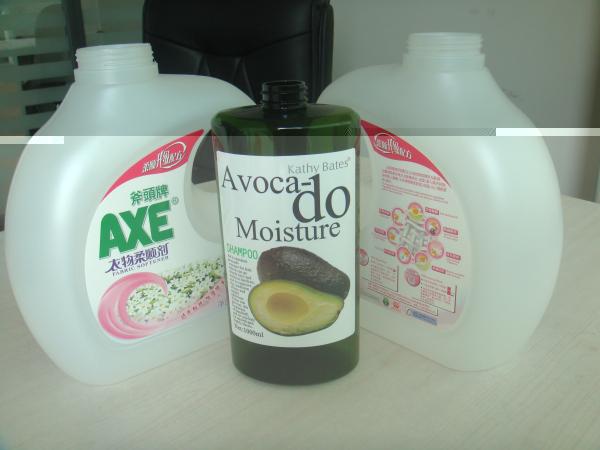

Labeling bottles in cosmetic industry

High Speed Wrap Around Labelling Machine For Oval Bottle 220V

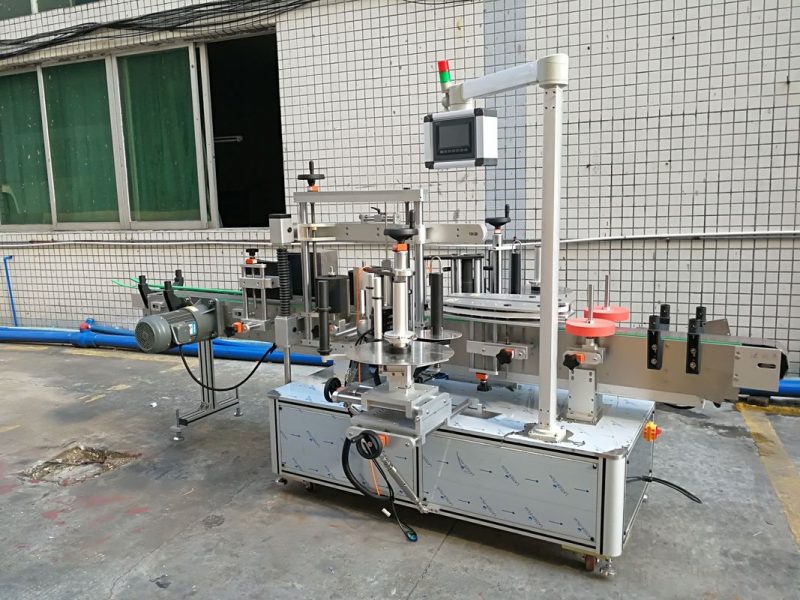

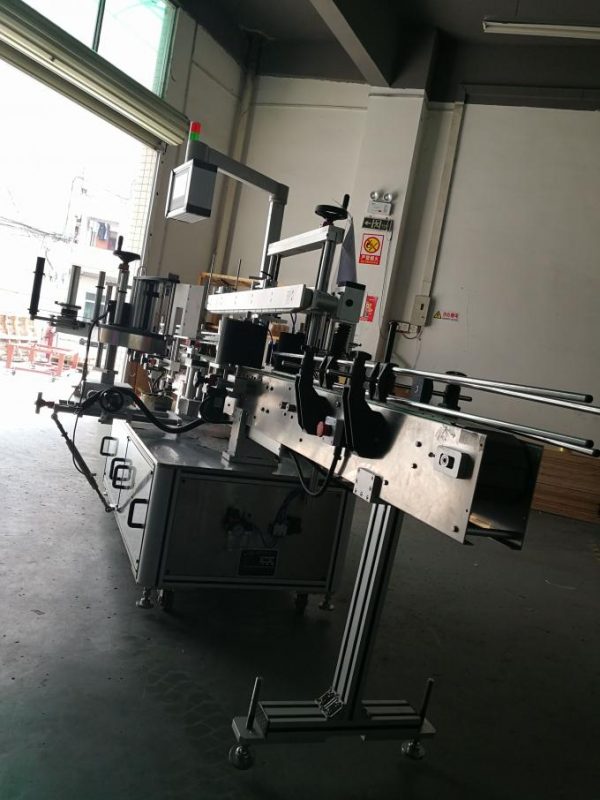

Machine photo

High Speed Wrap Around Labelling Machine For Oval Bottle 220V

Tag: oval labeling machine, double side sticker labelling machine
