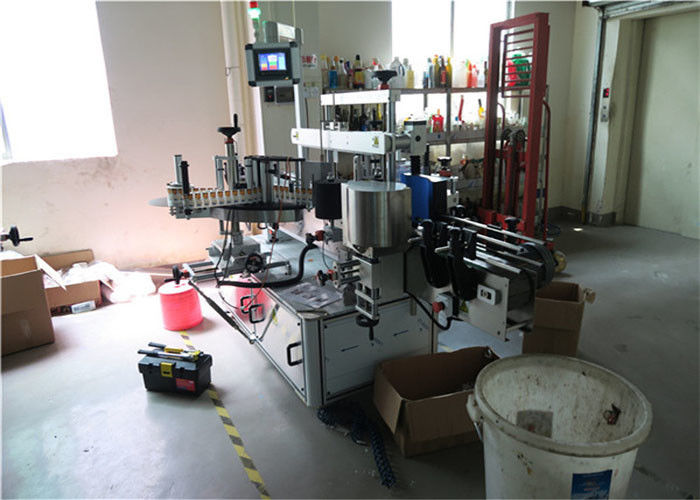

China Plastic / Glass Bottle Double Side Labeling Machine , Square Bottle Labeler supplier
Detailed Product Description

Bottles:Round Bottle/Square Bottle/flatAutomatic Grade:Full Automatic
Driven Type:ElectricProduction Capacity:4000-8000B/H
Labeling Accuracy:±1mmLabel Max Width:190mm

Plastic / Glass Bottle Double Side Labeling Machine , Square Bottle Labeler

Product Characteristic

1 , Be applicable to square bottles or flat bottles in single side labeling , one label of multisurface of square bottle.

2 , Machine Material:The machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy, with high corrosion resistance and never rust.

3. Labeling way : use the servo send label system to send label on product surface.

4.Alarm function: such as label spill, label broken or other malfunction during machine working all will alarm and stop working.

Features

1. Applicable to the pharmaceutical, food, cosmetic and other light industrial products such as oval, square, flat bottles on the single and double sides labeling.

2. The man-machine interface system is advanced and compatible, easy operation, complete functions, has a wealth of online help function

3. The bottle dividing device shaped general, any diameter of the bottle without replacement parts, rapid positioning adjustment; bilateral chain correction device ensure the material on the neutral

4. Special elastic pressing equipment ensure seeding materials stability

5. Automatic optical inspection, have nothing items come without labeling, and without label automatic correction or alarm and automatic detection function, to prevent leakage and waste

6. Labeling speed, conveyor speed, sub-bottle speed stepless speed, adjust as needed

7. The machine has the advantages of simple structure, compact structure, convenient operation and maintenance

Technical Parameters

Production speed200BS/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameter/width30-110mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL23048×W1200×1500mm
Weight480KG
Using power380/220V 50HZ 2300W

Application

1 , The labeling machine is for Daily Chemical and Food Industry,Labeling max width is 190mm.

2 ,Label inner diameter is 76.2mm,max outer diameter is 330mm.

3 , Bottle diameter thickness is Less than or equal to 30mm height is Less than or equal to 500mm.

Labeling system

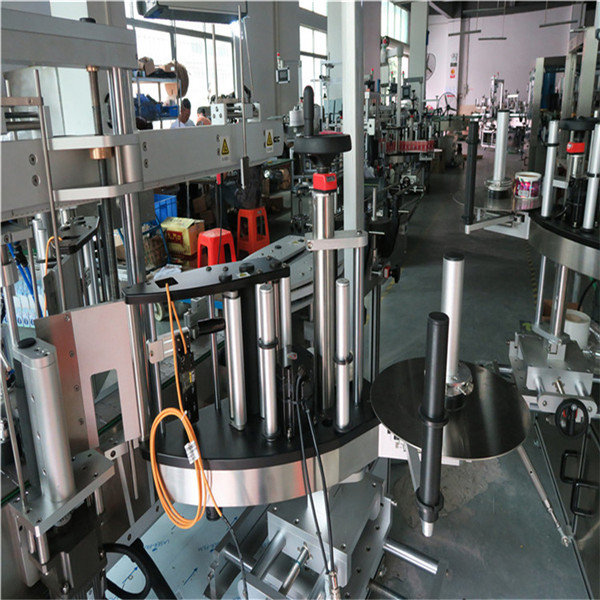

Plastic / Glass Bottle Double Side Labeling Machine , Square Bottle Labeler

Tag: square bottle labeler, jar labeling machine
