Detailed Product Description
Product Of Material: | Most Aluminum And Stainless Stee | Place: | Guangzhou,China |
---|---|---|---|
Bottle Application: | Plastic,Glass | Speed: | 250BS/Min |
Accuracy: | 1mm | Power: | 6500W |

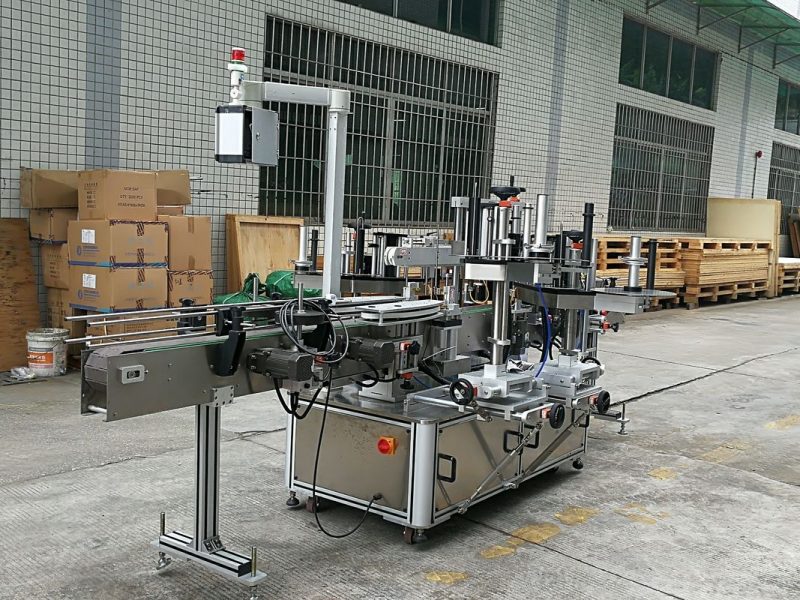

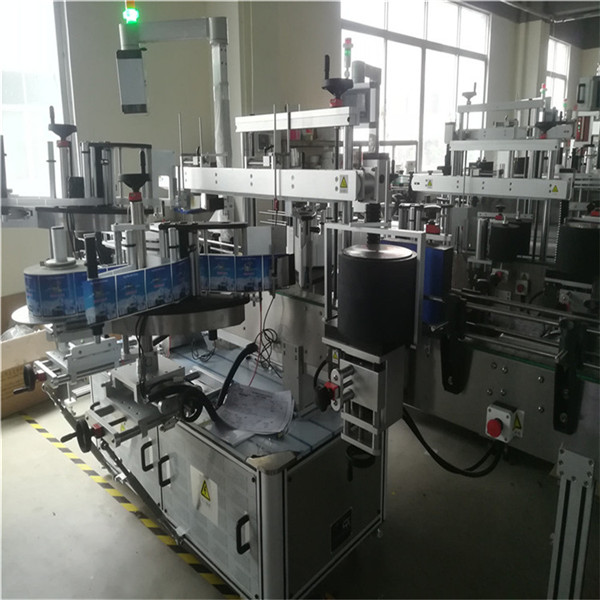

Self Adhesive Sticker Labeling Machine stick 3 labels on one bottle
Application
1 , The machine is apply to the Daily Chemical,Medicineand Food and beverage Industry,
2 , The labeling machine stick 3 labels on one bottle
3 , 125mmLabel max width of Neck label
4 , Labeling height for front / back labels is 195mm.
3 , Bottle diameter of Thickness is greater than or equal to 30mm,height is less than or equal to 500mm,
4 , Label inner diameter is 76.2mm,max outer diameter is 400mm.
Technical Parameter
Production speed | 250BS/min |
Labeling accuracy | ±1mm |
Label max width | Neck label125mm front back label195mm |
Bottle diameter | Thickness≥30mm Height≤500mm |
Label inner diameter | 76.2mm |
Label outer diameter | 400mm |
Outline size | L4080 W1200×1600mm |
Weight of labeling equipment | 650KG |
Using power of machine | 380V/220V 50Hz 6500W |
Product Characteristic
1 , Ensure accurate positioning is attached to objects,to achieve accurate labeling the shaping mechanism with special design.
2 , Adhesive Labeler,suit for neck,front,back labels of round bottle with one time finishing the labeling.
3 , The pressure between the driving shaft and roller is adjustable,when is the labels are running,the direction can be adjusted arbitrarily,rather than the ordinary elastic pressing.
4 , Double compression rollers structure,ensure that the label paper tension and avoid the label break off phenomenon because of back paper cutting injury,sectional type clutch makes tension more balanced.
5 , The machinecan install special institution,realize neck label wrap aound labeling,front and back labels for square,flat bottle at one finish.
6 , From famous factoryservo motor, realize the closed loop control to avoid the general stepping motorthe blind phenomenon,high precision subdivision,built in absolute value encoder all this in order to provide high accuracy.
7 , The new type lebeling head,the eight dimension adjustment,for special angle products,only need to adjust angle,easy operation and convenient.
Advantages
1 , The machine can do front and back ,neck labeling for one bottle with non-position labeling at one time
2 , It can neck and front labeling,front and back labeling;wrap around labeling of bottles
3 , Labeling equipment capacity 5000-8000B/H up to bottle size and label size
Product Details
