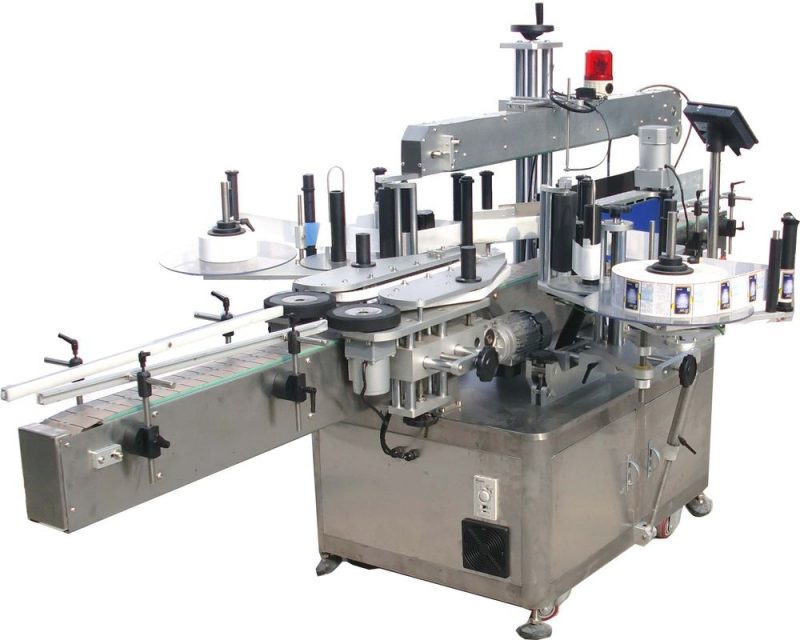

Up-Press Mechanism Top Bottles Automatic Bottle Labeler Machine

Detailed Product Description

Type:	Labeling Machine	Size Of Machine:	2800(L)×1450(W)×1360(H)mm
Labeling Speed:	60-200pcs/min	Height Of Object:	30-280mm
Thickness Of Object:	20-200mm	Length Of Label:	25-300mm
Accuracy Of Labeling:	±1mm

Up-press mechanism top bottles automatic bottle labeler machine with CE certificate

Application:

The labeling Machine is suitable for all kinds of regular and irregular containers, flat surface or round bottles, especially ideal for flat surface and square containers.

Features:

1. It can make labeling on both sides at the same time efficiently. Of course client can choose to make one side or double sides labeling.

2. Client can choose to add coding machine.

3. It can work separately or work connecting with conveyor.

4. Equipped with touch screen & PLC control system.

Techinical parameter:

Type	Labeling machine
Condition	New
Packaging Type	Case
Packaging Material	Ply-wood
Automatic Grade	Automatic
Driven Type	Electric
Power Supply	220V 3.5KW 50/60HZ
Size of Machine	2800(L)×1650(W)×1500(H)mm
Speed	60-350pcs/min(relate to materials and labels'size)
Height of Object	30-350mm
Diameter of object	20-120mm
Height of Label	5-180mm
Length of Label	25-300mm
Accuracy of Labeling	±1mm (excluding the error of bottle and label)
Can choose different types of sending label module according to clients' higher requirement for labeling speed and precision.

Spare Part:

parts	image

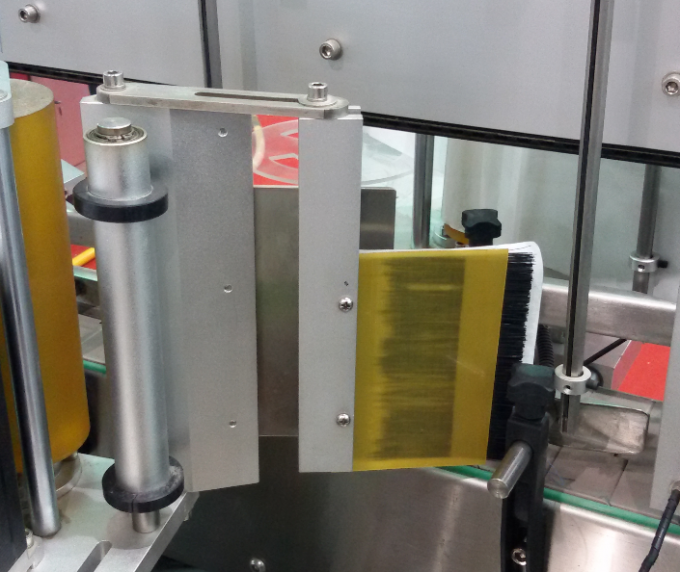

board for peeling off label (for different size of label The size of board matches the size of label)
Timing belt ( For pulling the label belt)
Timing belt (For runing with conveyor, the is on the product (bottles, boxes and jars etc. it makes the product stable and safe)

Tag: bottle sticker labeling machine, automatic bottle labeling machine
