Self Adhesive Labeler Machine Two Sets Labeling Heads
Detailed Product Description

Voltage:220V/380V 50HzMachine Power:6500W
Production Capacity:6000-80000B/hType:Full Automatic Labeling Machine
Key Material:AluminumFunction:Label On Bottle Jar Container

6000B/h - 80000B/h Self Adhesive Labeler Machine Two Sets Labeling Heads

Application

1 , Top and side Labeling Machine apply to label top label and front / back label on bottle at one time ,top and side labeling, one side labeling of square, flat, ellipse and abnormity bottles in the industry of Cosmetics, Drinks, Cleaning, Detergent, Skin Care Products, Hair Care Products, Oil, Tea etc.

2 , Two sets labeling heads, each labeling head with one set PLC

3 , The machine has advanced HIM and more function, simple operation, compact configuration.

4 , Using PLC control system, Touch screen operation interface

5 , No object no labelling, no label can revise and inspect by itself.

6 , The machine can work alone or work with other machines.

Features:

1 , The machine using servo motor not step motor.

2 , High labeling precision.

3 , Advanced TAIWAN HITECH interface control system.

4 , Germany Siemens PLC control, high reliability.

5 ,Machine structure is simple, compact, easy to operation and maintenance.

6 , Labeling qualitied rate 98-99%

Description ofProduct

1 , Neck, front, back labels of round bottles would besuited for.

2 , Thespecial design of shaping mechanism, ensure accurate positioning is attached to objects,to achieve accurate labeling.

3 , With the special bottles added fold top label,also could be finished.

4 , The type of machinecan install special institution, realize neck label wrap aound labeling, front and back labels for square, flat bottle at one finish.

5, Our machineries used servo motor from famous factory, they canrealize the closed loop control to avoid the general stepping motor the blind phenomenon, high precision subdivision, built in absolute value encoder all this in order to provide high accuracy.

6 ,The eight dimension adjustment with the new type lebeling head,for special angle products,only need to adjust angle,easy operation and convenient.

7 , While it has some problems withthe labels,running or broken,the pressure between the driving shaft and roller would adjustable, the direction can be adjusted arbitrarily,rather than the ordinary elastic pressing.

8 , The labeling head use double compression rollers structure,ensure that the label paper tension and avoid the label break off phenomenon because of back paper cutting injury,sectional type clutch makes tension more balanced.

Technical Parameter

Production speed250BS/min
Labeling accuracy±1mm
Label max widthNeck label125mm front back label195mm
Bottle diameterThickness≥30mm Height≤500mm
Label inner diameter76.2mm
Label outer diameter400mm
Outline sizeL4080 W1200×1600mm
Weight650KG
Using power380V/220V 50Hz 6500W

Added Details

1 , Touch Screen Control System with 20 sets Job Memory

2 , Labeling speed up to 250BPM ( according to the length of label )

3 , Simple Straight Forward Operator Controls

4 , Special design for three-side labeling,also added fold label.

5 , On-Screen trouble description which is easy to solve

6 , Most material are made by Aluminum and less are Stainless Frame

7 , Open Frame design, easy to adjust and change the label

8 , Variable Speed with stepless motor

9 , Label Count Down (for precise run of set number of labels) to Auto Shut Off

10 , Stamping Coding Device attached

Advantages

1 , Most component are made by aluminum,cutting the weight and cutting the transportation fees.

2 , The production max speed is about 250BS/min.Labeling accuracy is ±1mm.

3 , The machine’s Using power,dimension,Weight are customized.

4 , The machine is apply to the Daily Chemical and Food Industry,

5 , Label max width of Neck label is 125mm,front back label is 195mm.

6 , Bottle diameter of Thickness is greater than or equal to 30mm,height is less than or equal to 500mm,

7 , Label inner diameter is 76.2mm,max outer diameter is 400mm.

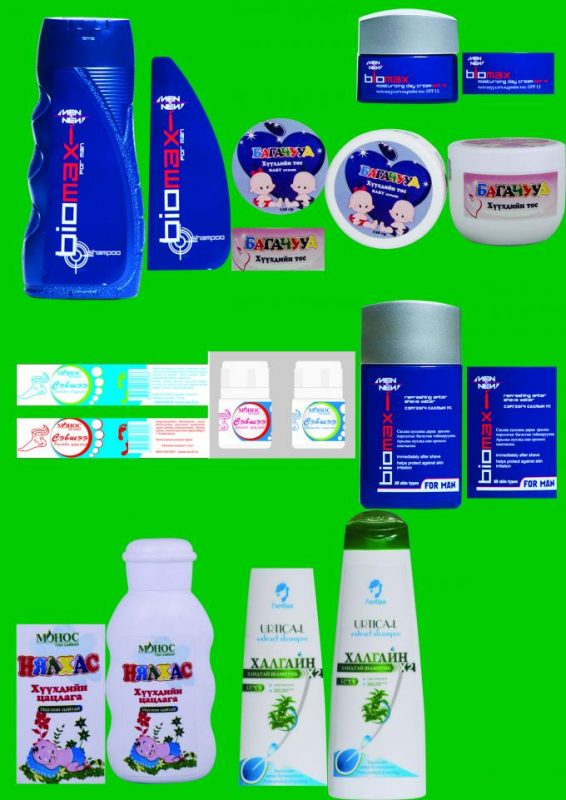

Sample of bottles

6000B/h - 80000B/h Self Adhesive Labeler Machine Two Sets Labeling Heads
