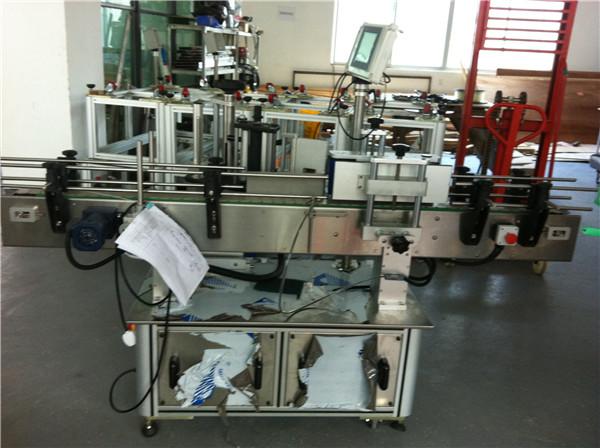

Automatic Adhesive Labeling Machine For Round Bottle Labeler
Detailed Product Description

Label Max Width:190mmLabel Inner Diameter:76.2mm
Label Outer Diameter:330mmUsage:Adhesive Labels Bottles
Motor:Imported MotorAdvantage:Widely Used

Automatic Adhesive Labeling Machine For Round Bottle Labeler

Technical Parameters

Production speed45m/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameter30-100mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL2000×W700×1400mm
Air source4-6KG 30L/MIn
Using power220V 50HZ 1200W

Product Characteristic

1 , This machine applys to single side, double side of all kinds round bottles in pharmacy, food beverage, daily chemical industry etc.

2 , The machine adopts PLC process control, photoelectricity bottle checking and label delivery.

3 , The mahcine composes of high production effiency, labeling precise and reliable, operation convenience, and wide adaptive scope etc.

4 , Start-up system: depend on 3-5 pole motor driving, electron control speed, full automatic transmission device.

5 , Electrcity source place conbine with high precise density steel star gear, including automatic suited machinery safty device

6 ,The machine adopts our company patent technology. The inaccurate labeling is eliminated largely because of the structure of three rollers capable of locating labeling position, automatically.

7 , The machine can be chosen to label one piece or two pieces,and it can label the washing hand liquid bottles in front and back at the same time.

8 , The advanced kind human interface system,on-line helping system,really human-machine communicating,it is easy to operate so the worker can operate the machine in several hours.

9 , The machine is particularly applicable to circular label for big round bottles,high repeat accuracy, without air bladder, with special design,no need the structure of separate bottle it makes the system easier,higher efficiency.

10 , The range of labels is extended because of hign-power servo motor. Solves the common problem of the insufficient strength.

Application

1 , The machine is apply to the Daily Chemical and Food Industry.

2 , Labeling max width is 190mm(can be raised according to the require)Bottle diameter:30-100mm.

3 , Label inner diameter is 76.2mm, max outer diameter is 330mm.

4 , The air pressure pump of air source is 4-6KG, about 30L/MIn.

Advantages

1 , Most component are made by aluminum,cutting the weight and cutting the transportation fees.

2 , The production max speed is about 45m/min.Labeling accuracy is ±1mm.

3 , The machine’s Using power,dimension,Weight are customized.

ClientBottles

Automatic Adhesive Labeling Machine For Round Bottle Labeler

Automatic Adhesive Labeling Machine For Round Bottle Labeler

Shippment

Automatic Adhesive Labeling Machine For Round Bottle Labeler

Tag: round bottle labeler, wrap around label applicator
