Automatic Feeding Top Labeling Machine
Detailed Product Description

Automatic Grade:AutomaticLabel Type:Sticker / Self Adhesvie
Driven Type:ElectricMachine Material:SS304 And Aluminium By Anode Treatment
Labeling Accuracy:±1mmLabel Max Width:130mm
Suitable Range:Label On Top

Automatic feeding and labeling on flat items such as unfolded cartons, leaflets, cards and tags

Technical Parameters

Production speed1-50m/min
Labeling accuracy±1mm
Label max width130mm
Label inner diameter76.2mm
Label outer diameter330mm
Outline sizeL2000×W700×1400mm
Weight180KG
Using power220V 50HZ 1500W
Bottle diameter10-300mm

Product Characteristic

1 , The labeling machine is specifically designed for automatic feeding and labeling on flat items such as unfolded cartons, leaflets, cards and tags etc. Specially designed feeder handles various size and thickness of items smoothly. Suction assisted conveyor ensures stable transport of light and thin items and ensures precise label registration.

2 , The famous high precise serve motor drives the labeling head and controls to convey the labels.

3 , The separated clutch makes the strain more balanced.It ensures accurate labeling.

4 , The advanced HMI,interface freely and the online helping system,easy to operate.

5 , The controlling system adopts SIMEMS PLC and famous panel,the interface can be operated in English to Chinese.

6 , It is convenient to adjust the labeling head,labeling speed is automatically synchronized with conveyor speed to ensure precisely labeling.

8 , During the labeling,no need to people to check the labeling for each bottle,you only need put the bottle on the conveyor,the labeling accuracy of first labeled bottle and the last labeled bottle is same.

9 , All machine before delivery,our engineers would debug the machine,inspect everything then delivery.

10 , Electrics are used international brand.

FAQ

1. Q: What label material does your machine use ?
A: Self-adhesive sticker.

2. Q: The machine is automatic or semi-auto?
A: We only produce the automatic machine .

3. Q: Which kinds of machine are suit for our products labeling requirement?
A:Pls supply us your products and label size (the photo of products with label on it is rather helpful), then I will suggest you the suitable machine for reference.

4. Q: The machine can connect with the product line or not ?
A: Machine can connect with production line or put on the production line or operation alon all ok as you need .

Application

1 , The machine is widely used in the Daily Chemical and Food Industry,Labeling max width is 130mm.

2 , Top label on plastic empty envelope bag labeling ,mask,unspreading carton labeling

Adantages

1 , Most component are made by aluminum adozing and 304 stainless steel .

2 , The production max speed is about 50m/min,Labeling accuracy is ±1mm.

3 , The machine can save 20 sets parameters

Product details

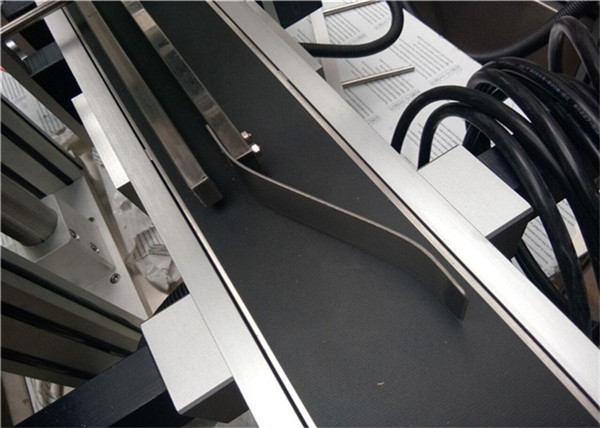

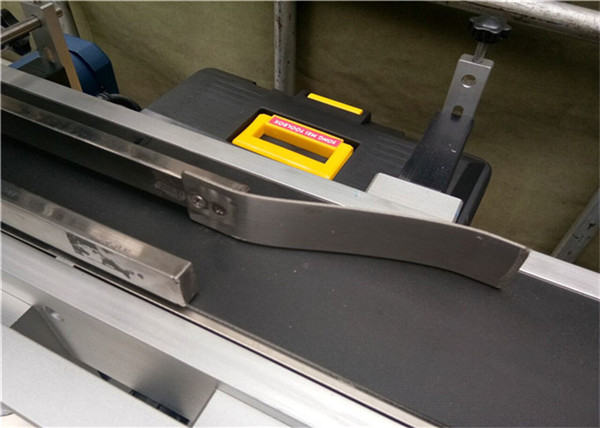

Automatic feeding Top Labeling Machine Sticker / self adhesvie Label type

Automatic feeding Top Labeling Machine Sticker / self adhesvie Label type

Tag: top label applicator, flat surface label applicator
