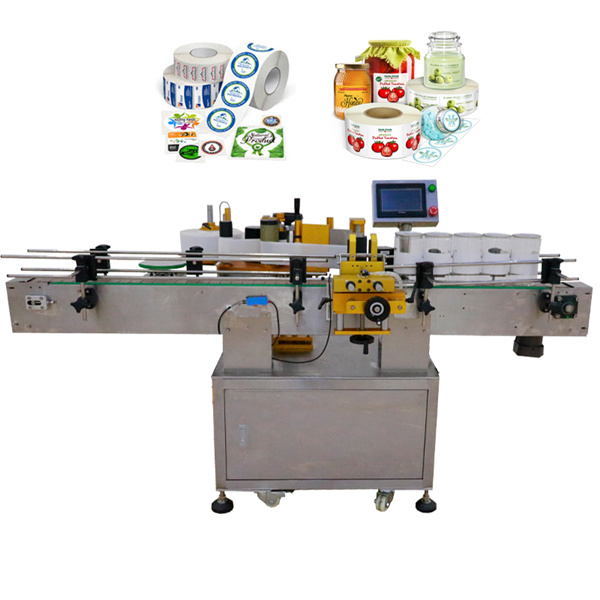

Automatic Self Adhesive Labeling Machine
Detailed Product Description

Prime Mover:ElectricPackage:Woodcase Packaging
Production Speed:250BS/minMax Width:Neck Label125mm Front Back Label195mm
Diameter Of Bottle:Thickness≥30mm Height≤500mmPower Of Using:380V/220V 50Hz 6500W

Automatic Self adhesive Sticker three labels labeling machine​

Labeling machine Characteristic

1 , Linear high-speed three labels labeling machine, suit for neck, front, back labels of round bottle with one time finishing the labeling.one side / double sides for square bottle, flat bottle , cone bottle labeling.

2 , It can install special institution, realize neck label wrap aound labeling, front and back labels for square, flat bottle at one finish.

3 , The new type lebeling head, the eight dimension adjustment, for special angle products, only need to adjust angle, easy operation and convenient.

4 , Labeling head use eight orienations adjustment, so that can suit for large cone bottles..

5 , The pressure between the driving shaft and roller is adjustable, when is the labels are running, the direction can be adjusted arbitrarily, rather than the ordinary elastic pressing.

6, the host uses servo motor from famous factory, realize the closed loop control to avoid the general stepping motor the blind phenomenon, high precision subdivision, built in absolute value encoder all this in order to provide high accuracy.

6 , Thecorrecting mechanism with special design, ensure accurate positioning is attached to objects, to achieve accurate labeling.

7, Label max width of Neck label is 125mm, front back label is 195mm.

8, Bottle diameter of Thickness is greater than or equal to 30mm, height is less than or equal to 500mm,

9, Label inner diameter is 76.2mm, max outer diameter is 400mm.

Technical Parameter

Production speed250BS/min
Labeling accuracy±1mm
Label max widthNeck label125mm front back label195mm
Bottle diameterThickness≥30mm Height≤500mm
Label inner diameter76.2mm
Label outer diameter400mm
Outline sizeL4080 W1200×1600mm
Weight650KG
Using power380V/220V 50Hz 6500W

Features

1 , Labeling speed up to 250BPM ( according to the length of label )

2 , Touch Screen Control System with Job Memory

3 , Simple Straight Forward Operator Controls

4 , Special design for three-side labeling

5 , On-Screen trouble description which is easy to solve

6 , Stainless Frame

7 , Open Frame design, easy to adjust and change the label

8 , Variable Speed with stepless motor

9 ,  Label Count Down (for precise run of set number of labels) to Auto Shut Off

10 , Stamping Coding Device attached

Advantages

1 , Most component are made by aluminum, cutting the weight and cutting the transportation fees.

2 , The production max speed is about 250BS/min. Labeling accuracy is ±1mm.

3 , The machine’s Using power, dimension, Weight are customized.

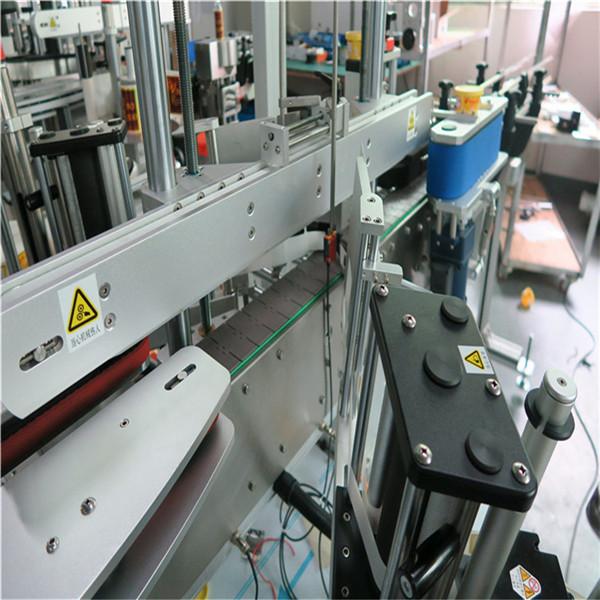

Product Details And Bottle Samples

Automatic Self Adhesive Labeling Machine Sticker three labels 250BS/min Production speed

Automatic Self Adhesive Labeling Machine Sticker three labels 250BS/min Production speed
