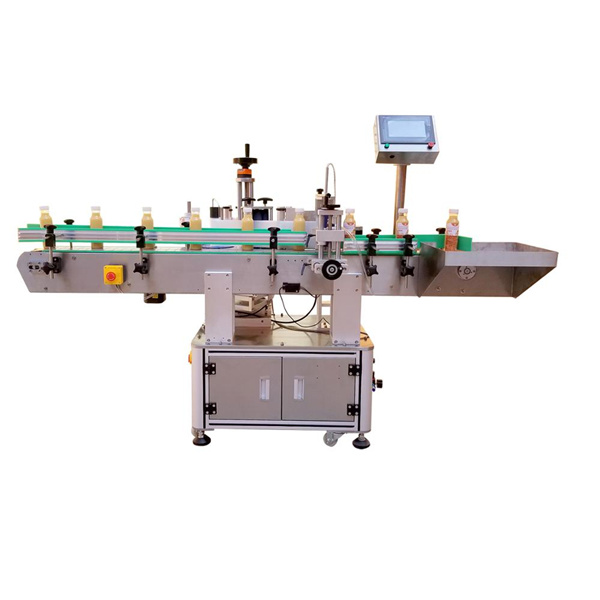

Linear Vertical Four Labels Stick Labeling Machine
Detailed Product Description

Mode Of Driving:Servo MotorLabeling Accuracy:±1mm
Speed:250BS/minMax Width:Neck Label125mm Front Back Label195mm
Key Material:AluminumFunction Added:Fold Label

Self Adhesive Labeler Machine , Linear Vertical Four Labels Stick Labeling Machine

Description ofProduct

1 , Neck, front, back labels of round bottles would besuited for.

2 , The special design of shaping mechanism, ensure accurate positioning is attached to objects,to achieve accurate labeling.

3 , With the special bottles added fold top label,also could be finished.

4 , The type of machinecan install special institution, realize neck label wrap aound labeling, front and back labels for square, flat bottle at one finish.

5, Our machineries usedservo motor from famous factory, they canrealize the closed loop control to avoid the general stepping motor the blind phenomenon, high precision subdivision,built in absolute value encoder all this in order to provide high accuracy.

6 , The eight dimension adjustment with the new type lebeling head, for special angle products,only need to adjust angle, easy operation and convenient.

7 , While it has some problems withthe labels,running or broken,the pressure between the driving shaft and roller would adjustable, the direction can be adjusted arbitrarily,rather than the ordinary elastic pressing.

8 , The labeling head use double compression rollers structure, ensure that the label paper tension and avoid the label break off phenomenon because of back paper cutting injury, sectional type clutch makes tension more balanced.


1 , Touch Screen Control System with 20 sets Job Memory

2 , Labeling speed up to 250BPM ( according to the length of label )

3 , Simple Straight Forward Operator Controls

4 , Special design for three-side labeling,also added fold label.

5 , On-Screen trouble description which is easy to solve

6 , Most material are made by Aluminum and less are Stainless Frame

7 , Open Frame design, easy to adjust and change the label

8 , Variable Speed with stepless motor

9 , Label Count Down (for precise run of set number of labels) to Auto Shut Off

10 , Stamping Coding Device attached

Technical Parameter

Production speed250BS/min
Labeling accuracy±1mm
Label max widthNeck label125mm front back label195mm
Bottle diameterThickness≥30mm Height≤500mm
Label inner diameter76.2mm
Label outer diameter400mm
Outline sizeL4080 W1200×1600mm
Using power380V/220V 50Hz 6500W


1 , Most component are made by aluminum, cutting the weight and cutting the transportation fees.

2 , The production max speed is about 250BS/min. Labeling accuracy is ±1mm.

3 , The machine’s Using power, dimension, Weight are customized.


1 , The machine is apply to the Daily Chemical and Food Industry,

2 , Label max width of Neck label is 125mm, front back label is 195mm.

3 , Bottle diameter of Thickness is greater than or equal to 30mm, height is less than or equal to 500mm,

4 , Label inner diameter is 76.2mm, max outer diameter is 400mm.

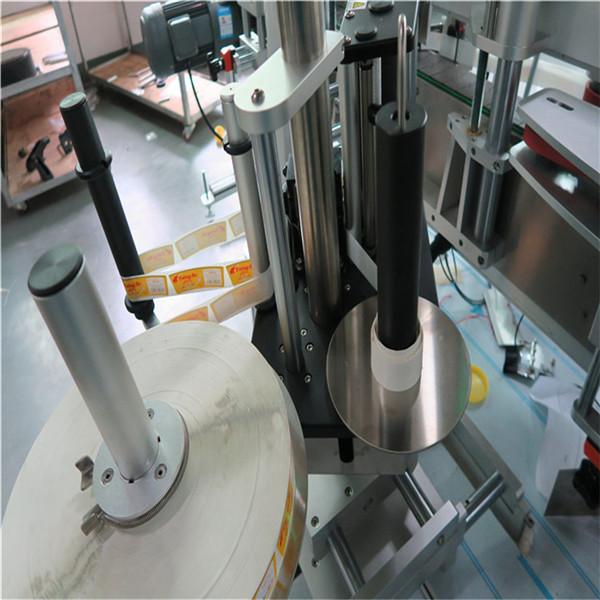

Product Details And Bottle Samples

Self Adhesive Labeler Machine , Linear Vertical Four Labels Stick Labeling Machine

Self Adhesive Labeler Machine , Linear Vertical Four Labels Stick Labeling Machine
