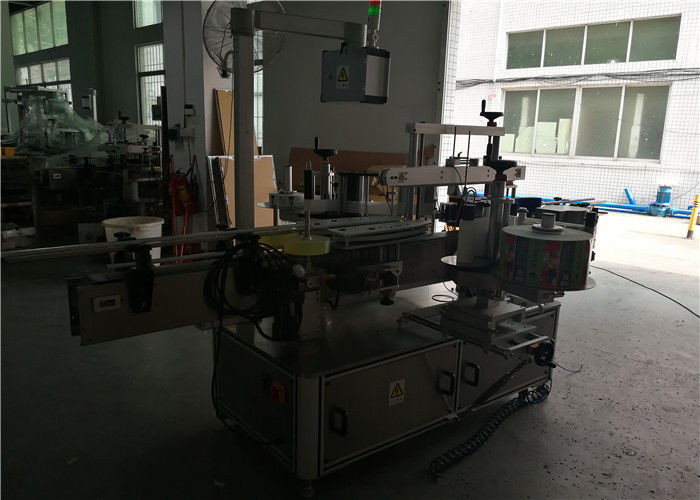

China Double Sided Round / Square / Flat Plastic Bottle Labeling Machine , Automatic Bottle Label Applicator supplier
Detailed Product Description

Warranty Of Equipment:12 MonthsOEM & ODM:Labeling Machine
Control System:PLC And Touch ScreenName Of Machine:Self Adhesive Labeling Machine
Specification:3048mm X 1700mm X 1600mmLabeling Packaging:Glass Bottle ,plastic Bottle ,container
Applications Area:Bevarage/Drinks/Daily Chemical

Double Sided Round Bottle, Square Bottle, Flat Bottle Etc Plastic Bottle Labeler

Applications for

1 , For oval bottle, only need to adjust oval bottle labeling device.

2 , This machine suit for one side or double sided labeling of the square bottle,flat bottle and round bottles

3 , Installed round bottle labeling device ,adhesiving labeling for round bottles , plus one sensor ,can realize orientation labeling of the round bottles.The speed is around 2500B/H,max label high 168mm (accept custom)

4 , Using 82.6 mm chain board width ,applications to bottle diameter / width 30-110mm for flat bottle,round bottle,square bottle and some irregular bottles

5 , Labeling head: Width 200mm,suit max label high 190mm,eight orienation adjustment

6 , Ribbon date printer and injek printer for options

7 , Labeling all kinds of bottles ,only need to adjust machine

Technical Parameters

Production speed45m/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameter30-100mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL2000×W700×1400mm
Air source4-6KG 30L/MIn
Using power220V 50HZ 1200W

Product Feature

1 , This labeling machine is made of SS 304 and high-class alloy, the controlling system adopts advanced PLC with touch screen.

2 , Unique design, new style, complete functions, multi-purpose, convenient in operation, beautiful construction, high automaticity

3 , This machine can stick Double Sides Lables on various olive, round, squarel objects, bottles, jars, boxes, hardwares, etc

4 , This labeling machine can work independently, and can be installed on any product lines, work with automatic filling machine, capping machine, coding machine, etc.

UniqueFeature

1 , Nolabel data input / retrievals programming require for any label size.

2 , No change parts required.

3 , Virtually maintenance free machine.

4 , Stainless steel 304 construction.

5 , GMP Design.

6 , User friendly label placing adjustment.

7 , Built in A.C. variable frequency drive system.

8 , Accurate label placement.

9 , In built digital pulse counter.

10 , Suitable for Glass, Plastic, Pet, Aluminum, Tin containers.

Description

1 , Automatic model is equipped with roller spacing device resulting in a simple to “No change parts required.” The in built automated label length detection systems eliminates any need for manualing feeding and storing of label length data in memory and retrieving the same every time for change of label size and re-starting the machine. The system thus saves valuable time, avoiding machine-down time, and helps to achieve higher production

2 , Vertical Automatic Sticker Labeling Machine is one of the most user friendly. The machine is suitable for labeling on round Vials, Bottles and other round objects. It is capable of labelling up to 100-120 containers per minutes depending on product size and label size.

3 ,The labeling machine is manufactured using quality tested components and advanced technology in compliance with industry norms. Used in labeling on single side, both sides simultaneously on any shape and sizes, we offer this labeling machine in different designs and sizes as per the needs of the customers. In order to provide a qualitative range, this labeling machine is tested on different quality measures.

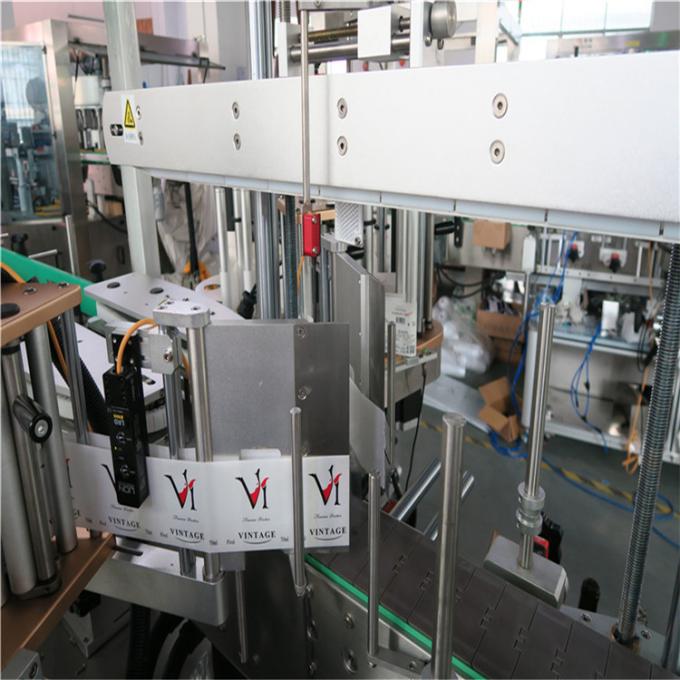

Double Sided Round / Square / Flat Plastic Bottle Labeling Machine , Automatic Bottle Label Applicator

Tag: water bottle label printing machine, sticker applicator machine
