Detailed Product Description
| Warranty Of Equipment: | 12 Months | OEM & ODM: | Labeling Machine |
|---|---|---|---|
| Control System: | PLC And Touch Screen | Name Of Machine: | Self Adhesive Labeling Machine |
| Specification: | 3048mm X 1700mm X 1600mm | Labeling Packaging: | Glass Bottle ,plastic Bottle ,container |
| Applications Area: | Bevarage/Drinks/Daily Chemical |

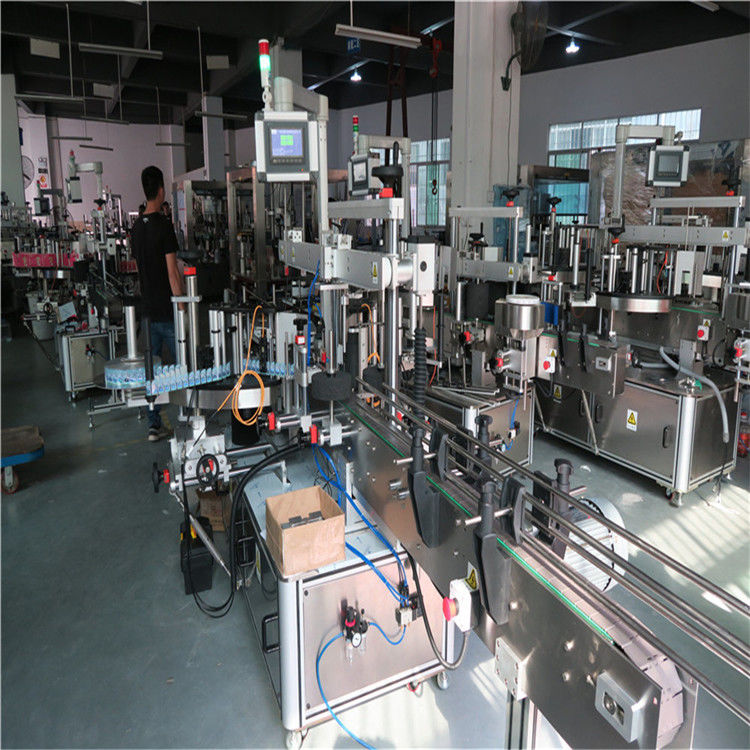

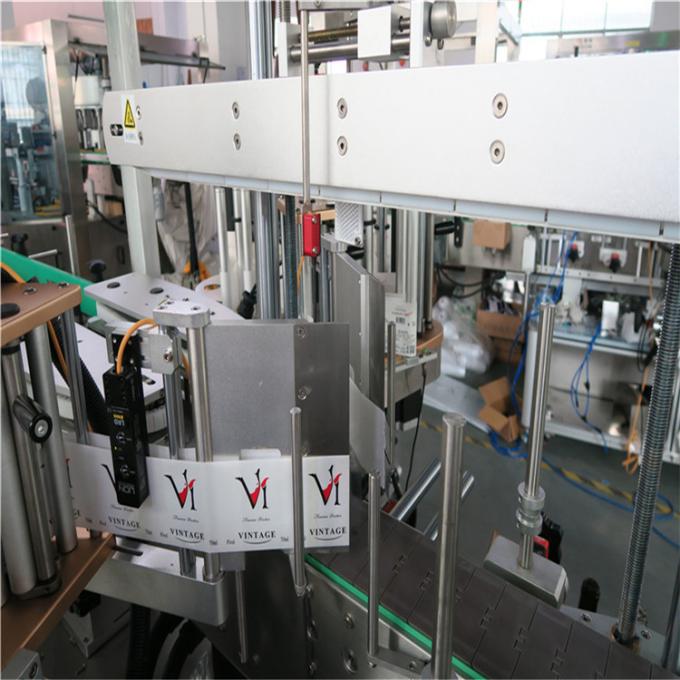

Pet Bottle Labeling Machine , Drinking Mineral Water Bottling Labeling Machine
Product Feature
1 , This labeling machine is made of SS 304 and high-class alloy, the controlling system adopts advanced PLC with touch screen.
2 , unique design, new style, complete functions, multi-purpose, convenient in operation, beautiful construction, high automaticity
3 , This labeling machine can work independently, and can be installed on any product lines, work with automatic filling machine, capping machine, coding machine, etc.
4 ,This machine can stick lables on various olive, round, squarel objects, bottles, jars, boxes, hardwares, etc.
Advantages
1 ,This machine suit for one side or double sided labeling of the square bottle,flat bottle and round bottles
2 ,Installed round bottle labeling device ,adhesiving labeling for round bottles , plus one sensor ,can realize orientation labeling of the round bottles.The speed is around 2500B/H,max label high 168mm (accept custom)
3 ,Using 82.6 mm chain board width ,applications to bottle diameter / width 30-110mm for flat bottle,round bottle,square bottle and some irregular bottles
4 ,Labeling head: Width 200mm,suit max label high 190mm,eight orienation adjustment
5 ,Ribbon date printer and injek printer for options
6 ,Labeling all kinds of bottles ,only need to adjust machine
7 ,For oval bottle, only need to adjust oval bottle labeling device.
Technical Parameters
| Production speed | 45m/min |
| Labeling accuracy | ±1mm |
| Label max width | 190mm |
| Bottle diameter | 30-100mm |
| Label inner diameter | 76.2mm |
| Label outer diameter | Max330mm |
| Outline size | L2000×W700×1400mm |
| Air source | 4-6KG 30L/MIn |
| Using power | 220V 50HZ 1200W |

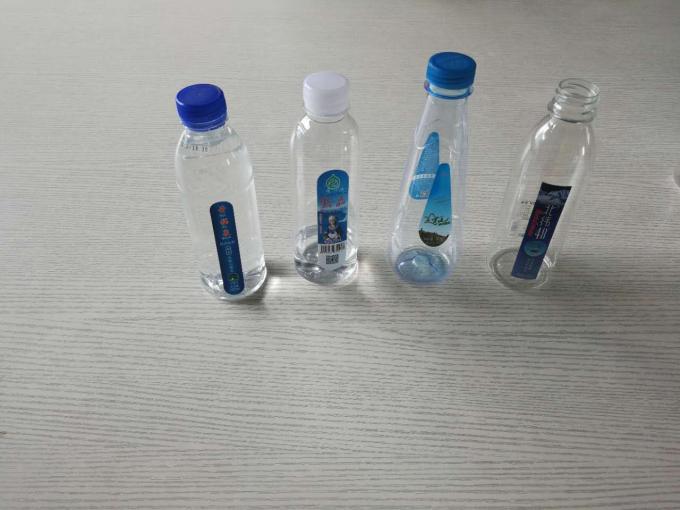

Labeling bottle samples
Tag: can labeling machine, sticker applicator machine
