Detailed Product Description
| Width: | 190mm | Inner Diameter: | 76.2mm |
|---|---|---|---|
| Label: | Adhesive Labels Bottles | Electric Machine: | Imported Motor |
| Superiority: | Various Round Bottles | Place Of Origin: | Shanghai,China. |

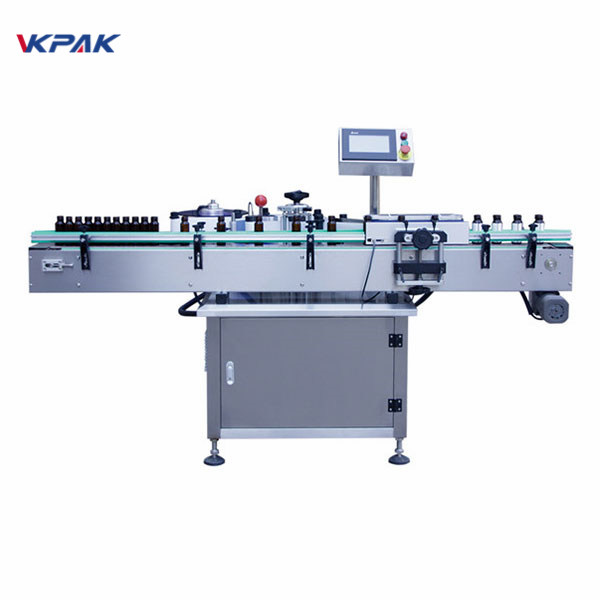

Electric Eyes Reaction Bottle Round Sticker Labeling Machine Beverage Industry
Technical Parameters
| Production speed | 45m/min |
| Labeling accuracy | ±1mm |
| Label max width | 190mm |
| Bottle diameter | 30-100mm |
| Label inner diameter | 76.2mm |
| Label outer diameter | Max330mm |
| Outline size | L2000×W700×1400mm |
| Air source | 4-6KG 30L/MIn |
| Using power | 220V 50HZ 1200W |
Product Characteristic
1 , The production quantities can be controled between 0-2500BS/Hours.Flexible set.
2 , The machine adopts the special structure of air driving and labeling rollers with high labeling accuracy.
3 , The machine is particularly applicable to circular label for big round bottles,high repeat accuracy,without air bladder, with special design, no need the structure of separate bottle it makes the system easier,higher efficiency.
4 , The range of labels is extended because of hign-power servo motor.Solves the common problem of the insufficient strength.
5 , The machine adopts our company patent technology.The inaccurate labeling is eliminated largely because of the structure of three rollers capable of locating labeling position,automatically.
6 , The machine just can label round bottle products,Plastic,Glass and others material,chosen to label one piece or two pieces, and it can label the washing hand liquid bottles in front and back at the same time.
7 , The advanced kind human interface system,on-line helping system,really human-machine communicating, it is easy to operate so the worker can operate the machine in several hours.
Adhibition
1 , The machine is apply to the Daily Chemical and Food Industry.
2 , Labeling max width is 190mm(can be raised according to the require)
3 , 30-100mm Bottle diameter, 76.2mm Label inner diameter, 330mmmax outer diameter.
4 , Air source4-6KG The air pressure pump.
Advantages
1 , Most component are made by aluminum,cutting the weight and cutting the transportation fees.
2 , The production max speed is about 45m/min.Labeling accuracy is ±1mm.
3 , The machine’s Using power,dimension,Weight are customized.
Bottles
Tag: round bottle labeler, wrap around label applicator
