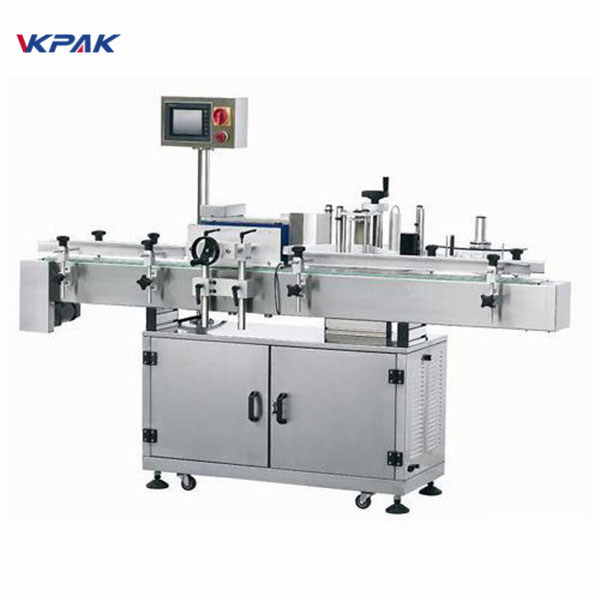

Round Bottle Automatic Labeling Machine For Drinks
Detailed Product Description

Production Speed:45m/minLabeling Accuracy:±1mm
Label Max Width:190mmLabel Inner Diameter:76.2mm
Label Outer Diameter:330mmSpecialty:Adhesive Labels
Electric Machine:Imported MotorDomain:Bevarage/Drinks/Daily Chemical

Rond Bottle Automatic Labeling Machine For Drinks / Daily Chemical

Technical Parameters

Production speed45m/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameter30-100mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL2000×W700×1400mm
Air source4-6KG 30L/MIn
Using power220V 50HZ 1200W

Product Characteristic

1 , The machine is applicable to label cylinder bottles for daily chemicals,beverages,pharmaceuticals etc.

2 , The machine adopts the special structure of air driving and labeling rollers with high labeling accuracy.

3 , The machine is particularly applicable to circular label for big round bottles, high repeat accuracy,without air bladder, with special design,no need the structure of separate bottle it makes the system easier,higher efficiency.

4 , The range of labels is extended because of high-power servo motor.Solves the common problem of the insufficient strength.

5 , The machine adopts our company patent technology. The inaccurate labeling is eliminated largely because of the structure of three rollers capable of locating labeling position, automatically.

6 , It can be chosen to label one piece or two pieces, and it can label the washing hand liquid bottles in front and back at the same time.

7 , The advanced kind human interface system,on-line helping system,really human-machine communicating, it is easy to operate so the worker can operate the machine in several hours.

Application

1 , The machine is apply to the Daily Chemical and Food Industry.

2 , Labeling max width is 190mm(can be raised according to the require)

3 , Bottle diameter:30-100mm, Label inner diameter is 76.2mm, max outer diameter is 330mm.

4 , The air pressure pump of air source is 4-6KG,about 30L/MIn.

Advantages

1 , Most component are made by aluminum,cutting the weight and cutting the transportation fees.

2 , The production max speed is about 45m/min.Labeling accuracy is ±1mm.

3 , The machine’s Using power,dimension,Weight are customized.

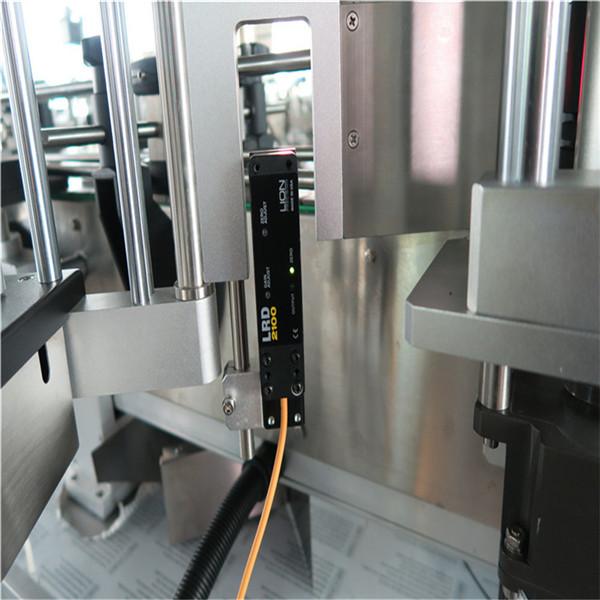

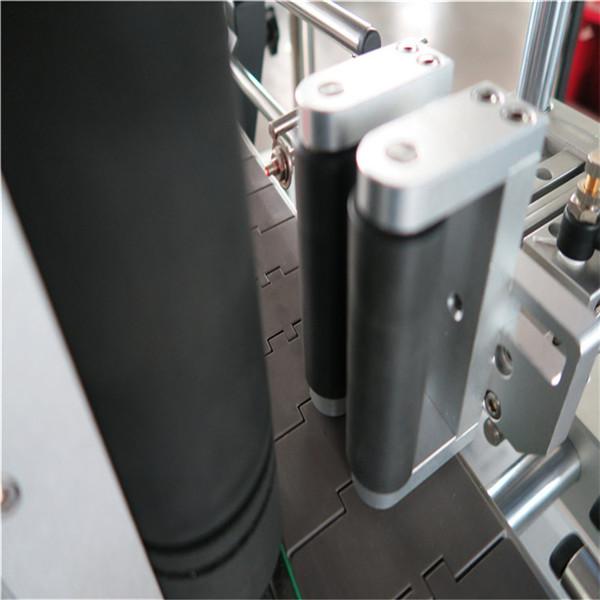

Product details

Rond Bottle Automatic Labeling Machine For Drinks / Daily Chemical

Rond Bottle Automatic Labeling Machine For Drinks / Daily Chemical

Tag: round bottle labeler, pet bottle labeling machine
