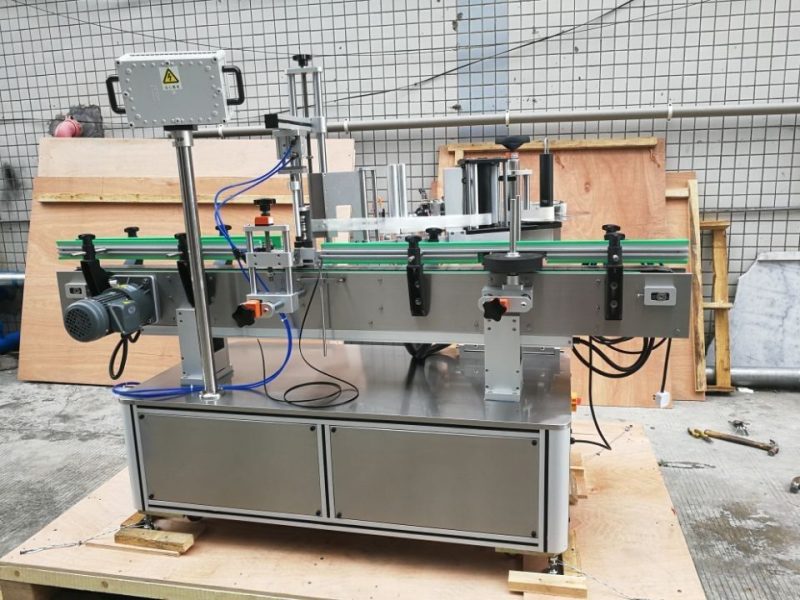

Standard Automatic Round Bottle Labeling Machine Front And Back
Detailed Product Description

Speed Of Producing:45m/minLabeling Accuracy:±1mm
Label Max Width:190mmDiameter Of Label Inner:76.2mm
Diameter Of Label Outer:330mmUsage:Adhesive Labels Bottles

Automatic Self adhesive Front and Back Labeler for Round Products


Standard front and back labelers like the one above have a hard time pressing the label down at the edges so another type of labeler is available that can wrap two identically sized labels onto a round bottle utilizing what is known as a three roll system. Three roll systems are not blazingly fast, topping out at about 50 bottles per minute, but are relatively inexpensive and work well for many installations

Technical Parameters

Production speed45m/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameter30-100mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL2000×W700×1400mm
Air source4-6KG 30L/MIn
Using power220V 50HZ 1200W

Product Characteristic

1 , The machine is applicable to label cylinder bottles for daily chemicals,beverages,pharmaceuticals etc.

2 , The machine adopts the special structure of air driving and labeling rollers with high labeling accuracy.

3 , High repeat accuracy,without air bladder,with special design.

4 , The machine is particularly applicable to circular label for big round bottles.

5 , no need the structure of separate bottle it makes the system easier, higher efficiency.

6 , The range of labels is extended because of hign-power servo motor. Solves the common problem of the insufficient strength.

7 , The machine adopts our company patent technology. The inaccurate labeling is eliminated largely because of the structure of three rollers capable of locating labeling position, automatically.

8 , It can be chosen to label one piece or two pieces,and it can label the washing hand liquid bottles in front and back at the same time.

9 , The advanced kind human interface system,on-line helping system, really human-machine communicating, it is easy to operate so the worker can operate the machine in several hours.

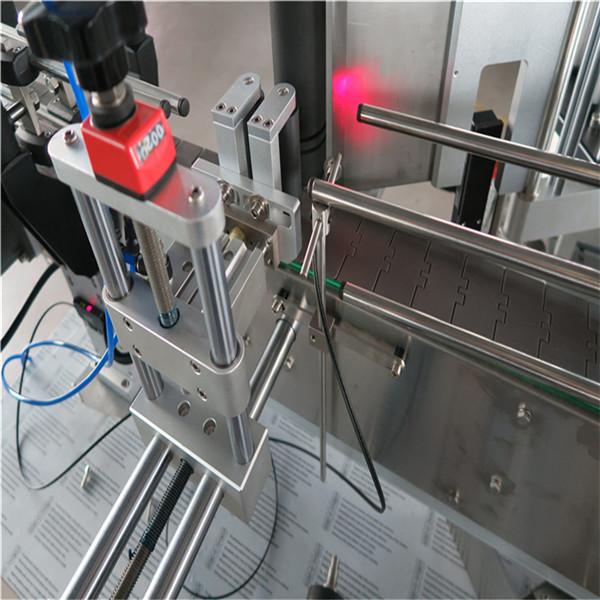

Product details

Standard Automatic Round Bottle Labeling Machine Front And Back

China Standard Automatic Round Bottle Labeling Machine Front And Back supplier

Tag: round bottle labeler, pet bottle labeling machine
