Detailed Product Description
Driver: | Electric | Production Capacity: | 5000-8000B/H |
---|---|---|---|
Labeling Accuracy: | ±1mm | Bottle Width: | 30-110mm |
Label Inner Diameter: | 76.2mm | Label Outer Diameter: | 330mm |
Dimension: | L3048×W1700×1500mm | After Sales: | Overseas Service |
Self adhesive Automatic bottle labeling maschine Front And Back Side
Technical Parameter
Production efficiency | 45m/min |
Labeling accuracy | ±1mm |
Label max width | 190mm(can be raised according to the require) |
Bottle diameter/width | 30-110mm Thickness≥30mm height≤500mm |
Label inner diameter | 76.2mm |
Labels roll outer diameter | Max330mm |
Outline size of machine | L3048×W1700×1500mm |
Weight | 580KG |
Product Characteristic
1 , Double side automatic labeling machine for square bottles or flat bottles with front and back labeling
2 , The machine capacity 5000-8000B/H
3 , The machine can be adjusted successfully in several minutes for any bottle,becausethe shape belt can be inclined,and the labeling head can be adjusted at eight orientations .
4 , Front and back labels are in seperate labels roller
5 , Installed round bottle postion labeling device, can adhesive side or bottom located labeling for round bottle
Application
1 , The machine is apply to the Daily Chemical and Food Industry,
2 , Labeling max width is 190mm(can be raised according to the require),Bottle diameter of Thickness is greater than or equal to 30mm,height is less than or equal to 500mm, Label inner diameter is 76.2mm,max outer diameter is 330mm.
Advantages
1 , Most component are made by aluminum,cutting the weight and cutting the transportation fees.
2 , The production max speed is about 45m/min.Labeling accuracy is ±1mm.The machine’s Using power,dimension,Weight are customized.

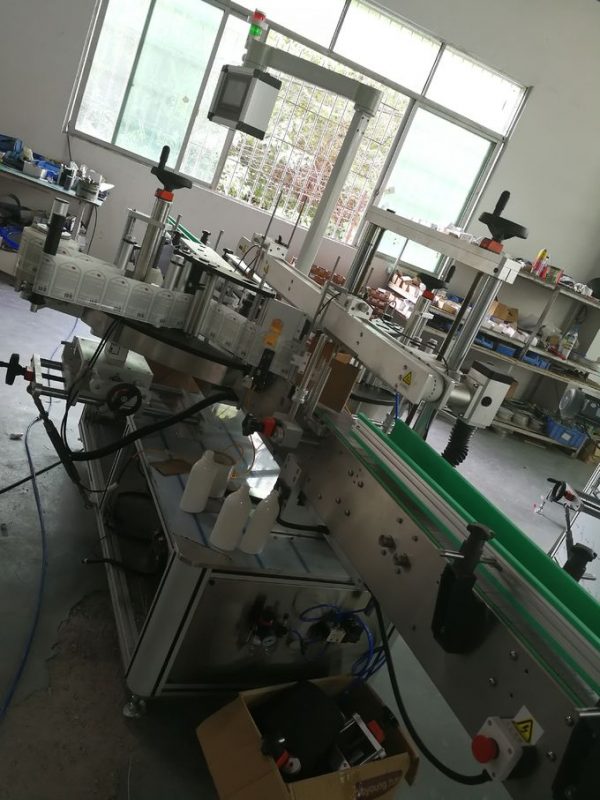

Machine photo
Tag: automated labeling machine, auto labeler machine
