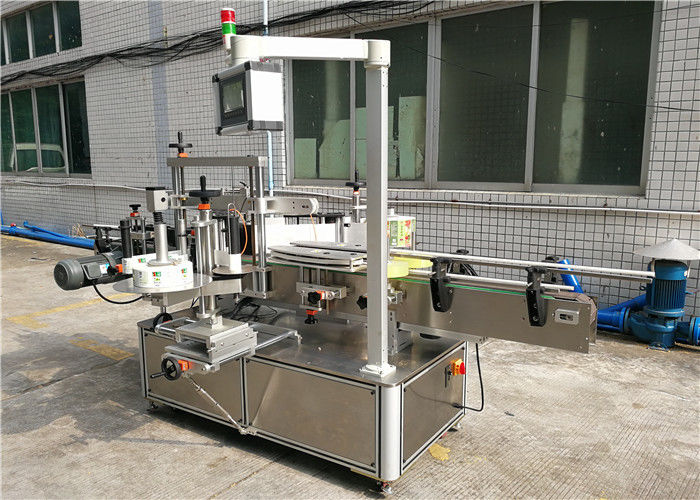

China Shampoo Flat Bottle Labeling Machine , self-adhesive labeling machine front and back supplier
Detailed Product Description

Label Max Width:190mmInner Diameter Of Label:76.2mm
Outer Diameter Of Label:330mmUsage:Adhesive Labels Bottles
Motor:Imported MotorAdvantage:Widely Used

Shampoo Flat Bottle Labeling Machine , self-adhesive labeling machine front and back

Technical Parameters

Production speed45m/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameter30-100mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL3048×W700×1400mm
Air source4-6KG 30L/MIn
Using power220V 50HZ 1200W

Applications

non-clear label sensor

Suit for front and back labeling of the flat bottle and square bottle and round bottles (when the label size is not over 1/3 girth of round bottle)Speed 5000-8000B/H

Conveyor chain board width 114mm,suit for diameter/width of goods 40-150mm

It installed wrap around bottle position labeling device, adhesive wrap round label position labeling for round bottle speed 2500B/H around (up to bottle side and label size)

Working instruction

This machine has fitted chain aligners, top holed and wrap around unit. Containers are carried on the conveyor belt to the chain aligners were the product is centralized and then clamped in position with the top hold belt running at the same speed as the conveyor taking the product to and past the labeling dispensing heads. This is worth the labels or label are accurately positioned and place on to the container.

Product Characteristic

1 , The machine adopts PLC process control, photo electricity bottle checking and label delivery.

2 , The machine composes of high production effiency, labeling precise and reliable, operation convenience, and wide adaptive scope etc.

3 , The machine can be chosen to label one piece or two pieces, and it can label the washing hand liquid bottles in front and back at the same time.

4 , Start-up system: depend on 3-5 pole motor driving, electron control speed, full automatic transmission device.

5 , Electricity source place combine with high precise density steel star gear, including automatic suited machinery safety device

6 ,Label range is extended because of high-power servo motor. Solves the common problem of the insufficient strength.

7 ,The machine adopts our company patent technology. The inaccurate labeling is eliminated largely because of the structure of three rollers capable of locating labeling position, automatically.

8 , The advanced kind human interface system, on-line helping system, really human-machine communicating, it is easy to operate so the worker can operate the machine in several hours.

9 , This machine applies to single side, double side of all kinds round bottles in pharmacy, food beverage, daily chemical industry etc

10 , The machine is particularly applicable to circular label for big round bottles, high repeat accuracy, without air bladder, with special design, no need the structure of separate bottle it makes the system easier, higher efficiency.

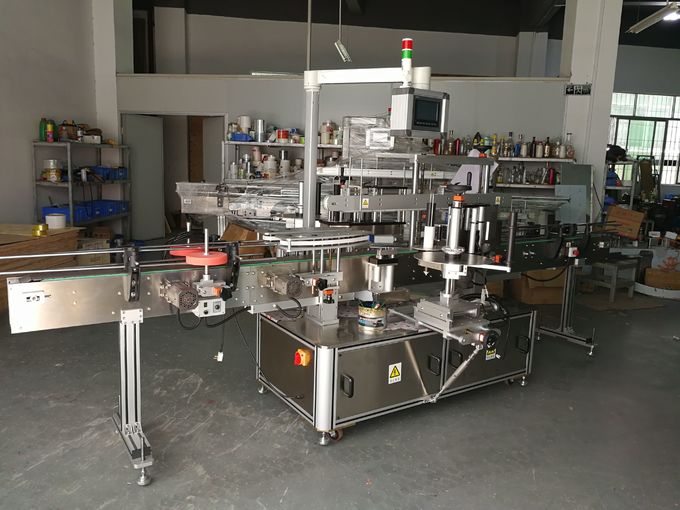

Machine picture

Shampoo Flat Bottle Labeling Machine , self-adhesive labeling machine front and back
