Two-Side Self Adhesive Labeling Machine
Detailed Product Description

Capacity Per Hour:Oval Bottle 5000-8000B/HLabeling Precision:±1mm
Label Height Max.:190mmPaper Roll Inner Diameter:76.2mm
Label Outer Diameter:330mmPackaging Material:Adhesive Labels
Electric Machine:Imported MotorDomain:Bevarage/Drinks/Daily Chemical

Automatic two-side self-adhesive labeling machine front and back

Applications for

1 , This double sides sticker labeling machine suit for front and back labeling of the square bottle,flat bottle and oval bottle and round bottles (when the label size is not over 1/3 girth of round bottle) speed 5000-8000B/H

2 , It can install round bottle institution on it ,realize wrap around labeling of the round bottle,plus one sensor ,can realize orientation labeling of the round bottles. The speed is around 2500B/H, max label high 168mm (accept custom)

3 , Suit for diameter / width 30-110mm bottles, flat bottle, round bottle, square bottle , oval bottle and some irregular bottles. can accept custom according to your labeled samples .

4 , Labeling head: new type, width 200mm,suit max label high 190mm, eight orienation adjustment

5 , We can provide ribbon date printer and injek printer for options

6 , When you have a lot of kinds of bottles, when labeling,only need to adjust institution

7 , If you also have oval bottle, then only need to adjust oval bottle synchronous chain correcting institution , easy to opearate

8 , We can also design according to your requirement

Technical Parameters

Production speed45m/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameter30-100mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL4048×W1400×1650mm
Air source4-6KG 30L/MIn
Using power220V 50HZ 1200W

Our service

1. Installation, training and start-up by Our Factory Service Engineer is available.

2. With VKPAK’s service engineers, you can feel confident in our professional knowledge and years of experience. If you have any service request, spare parts ordering, or other questions, please contact us.

3. We always send our service engineers to customer's factory to install and adjust machine, at the same time our engineers will train the workers of client and teach them knowledge about management machine.

4. The customer pays the travelling expenses, food, and accommodation. We welcome clients send their workers to our company study. It's free to study machine on our factory. Our machines are very easy to operate and manage. Worker can operate and manage these machines after they study.

Labeling bottles

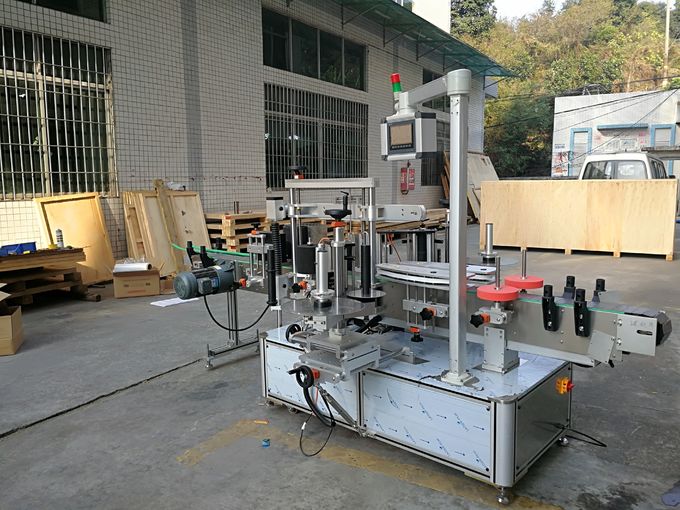

Two-Side Self Adhesive Labeling Machine Front And Back / Bottle Labeling Equipment
