Full Automatic Front And Back Labeling Machine For Round Pet Jars
Detailed Product Description

Speed Of Production:45m/minPrecision Of Labeling:±1mm
Max Width Of Label:190mmLabel Inner Diameter:76.2mm
Label Outer Diameter:330mmUsage:Adhesive Labels Bottles
Motor:Imported MotorAdvantage:Widely Used

Full automatic adhesive side labeling machine for round pet jars


1. This machine suit for one circle labeling ,front and back labeling of the round bottles (Front and back labels must be making into one labels reel,
2. plus one sensor ,can realize orientation labeling of the round bottles.
3. The speed is around 2500B/H
4. Suit for diameter 30-110mm bottles,95% round bottle can use this machineWe can also design according to your requirement

Technical Parameters

Production speed45m/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameter30-110mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL2000×W700×1400mm
Air source4-6KG 30L/MIn
Using power220V 50HZ 1200W

Product Characteristic

1 ,Main Parts Used Imported Brand,increases tablitily and durable of machine.

2 , Share parts with high precision processing, with advanced control system program

3 , The machine is particularly applicable to circular label for big round bottles, high repeat accuracy, without air bladder, with special design, no need the structure of separate bottle it makes the system easier, higher efficiency.

4 , The range of labels is extended because of hign-power servo motor. Solves the common problem of the insufficient strength.

5 , The machine adopts our company patent technology. The inaccurate labeling is eliminated largely because of the structure of three rollers capable of locating labeling position, automatically.

6 , The label station can be chosen to label one piece or two pieces,and it can label the washing hand liquid bottles in front and back at the same time.

7 , With the advanced interface system,on-line helping system, really human-machine communicating, it is easy to operate so the workers can install the machine within 5 hours.

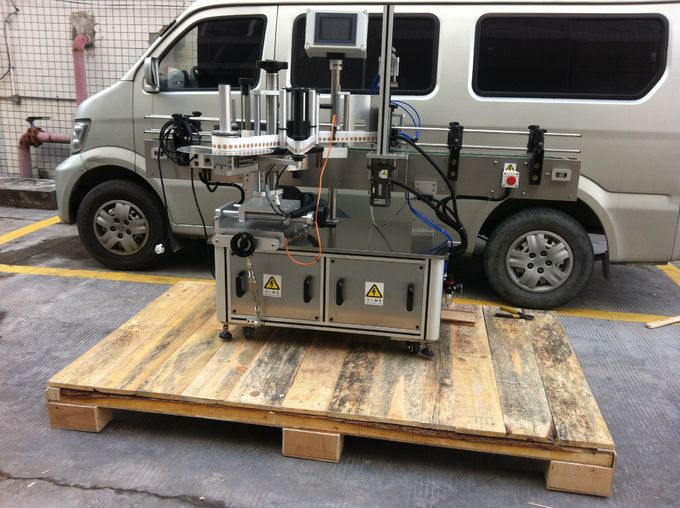

Machine picture

Full automatic Front and Back Labeling Machine for round pet jars
