Round Bottle Labeling Machine For Bround Suger Jar
Detailed Product Description

Product Name:Round Bottle Sticker Labeling Machine Bottling And Lebelling Machine For Bround Suger JarOutput Speed:20-200pcs/min
Is Suitable The Bottle Diameter:30-120mmBottle Height:30-280mm
Power Supply:220V 1.5HP 50/60HZThe Origin Of Photo Eletricity:Germany
The Origin Of Control System:TaiwanHeight Of Label:15-140mm
Lenghth Of Label:25-300mmKey1:Barcode Label Sticker
Key2:Label Sticker In JohorKey3:Polyester Sticker Label

round bottle sticker labeling machine bottling and lebelling machine for bround suger jar

Application

automatic round bottle jar can labeling machine self adhesive sticker with elliptical spoke is suitable for all kinds of round cylinder shape objects asthe pharmaceutical, food, cosmetic and other industries, the circumference of the round object and high precision are (double standard) and the fixed point and position on the back label.

Features

1. Out of the station can be adjusted 3d space,especially suitable for taper type bottle, and easy to adjust different size of the product

2. Adopts for Japanese OMRON imported object detect magic eye and German DANFOSS imported main converter,simple operation,stability running

3. imported the Japannese PLC system, the touch operating system in English and Chinese, man-machine dialogue, operation simple

4. Adopts for screw and star wheel cooperate, ensure high speed operation,products smooth and stable

Technical Parameters

Nameautomatic round bottle jar can labeling machine self adhesive sticker with elliptical spoke
Labeling Speed20-200pcs/min
Height of Object30-280mm
Diameter of bottle can20-120mm
Height of Label15-140mm
Length of Label25-300mm
Label Roller Inside Diameter76mm
Label Roller Outside Diameter380mm
Accuracy of Labeling±0.5mm
Power Supply220V 50/60HZ 0.2KW
Gas Consumption of Printer5Kg/m2(if add coding machine)
Size of Labeling Machine570(L)×250(W)×500(H)mm
Weight of Labeling Machine150kg

work procedure:

Labeling process: bottle into positioning checking cutting absorbing gluing labeling taking bottle out

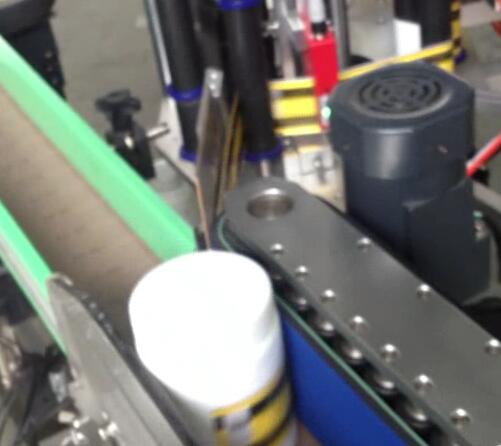

Round Bottle Labeling Machine , bottling and labeling machine for bround suger jarbottle into: no stiker
Round Bottle Labeling Machine , bottling and labeling machine for bround suger jarbottle label
Round Bottle Labeling Machine , bottling and labeling machine for bround suger jarbottle out

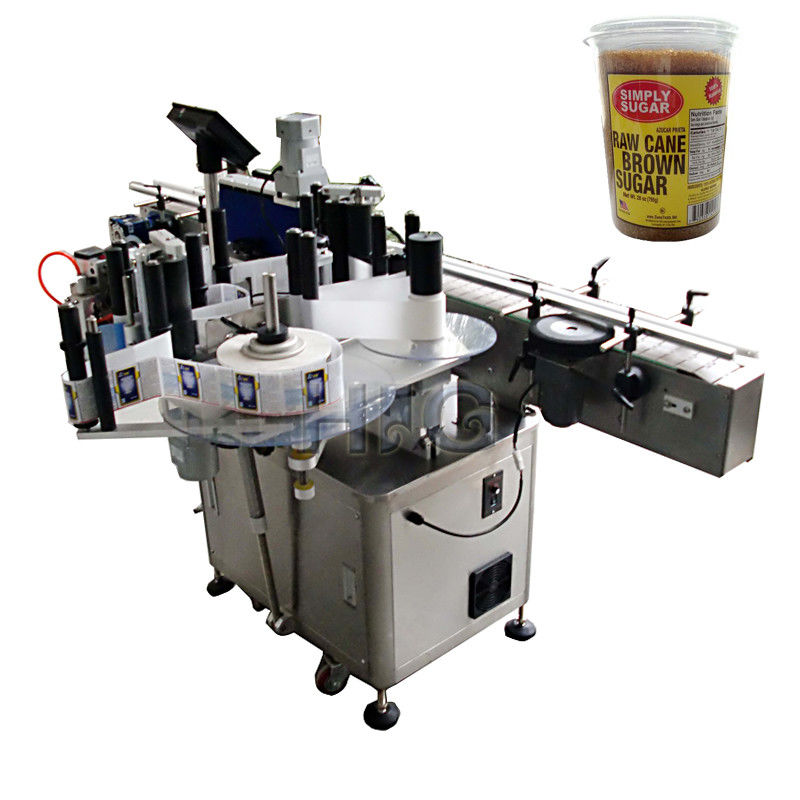

China Round Bottle Labeling Machine , bottling and labeling machine for bround suger jar supplier

Tag: industrial labelling machine, glass bottle labeling machine
