Detailed Product Description

Type:Round Bottle/Square Bottle/flatLabeling Accuracy:±1mm
Driven Type:ElectricBottle Diameter/width:30-110mm
Manufacture Speed:200BS/MinLabel Max Width:190mm
Feature:Self Research And Development

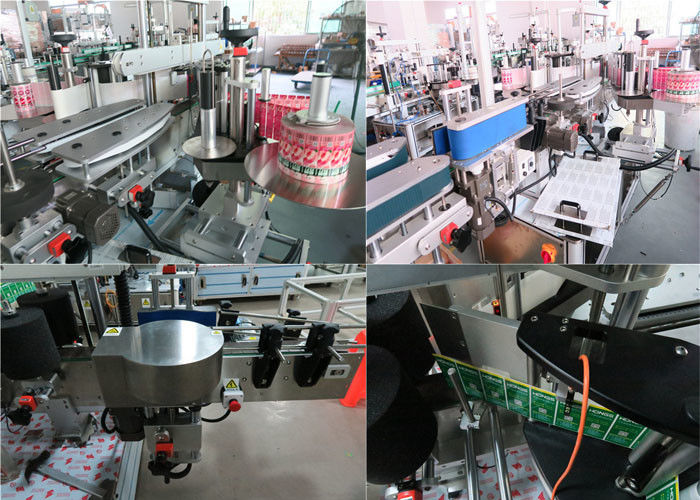

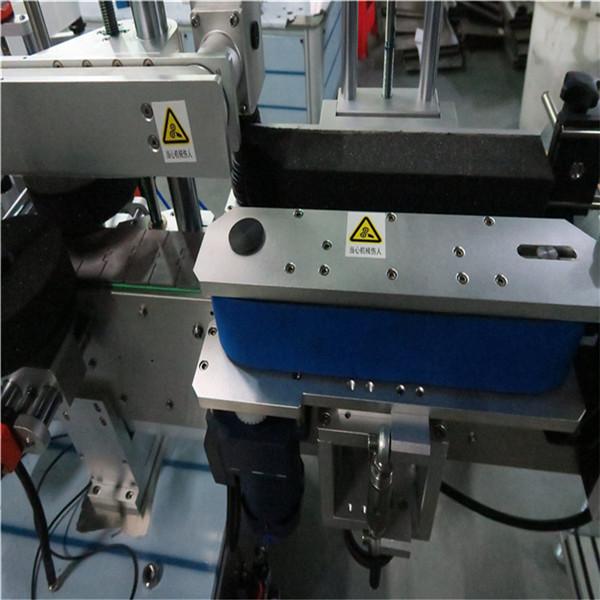

Daily Bottles Front and Back Labeling Machine , Jar Labeling Machine

Application

1 ,For label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.

2 ,Applicable products: Requires the side plane, side sweeping surface, the circumferential surface attached label.

3 ,Industry: Widely used in cosmetics, daily chemical, electronics, pharmaceutical, metal, plastics and other industries.

4 ,Application examples: Head & Shoulders shampoo flat bottle labeling, Shell Lubricants flat bottle labeling, labeling and fresh wine.

Description​

1. Applicable to the pharmaceutical, food, cosmetic and other light industrial products such as oval, square, flat bottles on the single and double sides labeling.

2. The man-machine interface system is advanced and compatible, easy operation, complete functions, has a wealth of online help function

3. The bottle dividing device shaped general, any diameter of the bottle without replacement parts, rapid positioning adjustment; bilateral chain correction device ensure the material on the neutral

4. Special elastic pressing equipment ensure seeding materials stability

5. Automatic optical inspection, have nothing items come without labeling, and without label automatic correction or alarm and automatic detection function, to prevent leakage and waste

6. Labeling speed, conveyor speed, sub-bottle speed stepless speed, adjust as needed

7. The machine has the advantages of simple structure, compact structure, convenient operation and maintenance

Technical Parameters

Production speed200BS/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameter/width30-110mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL23048×W1200×1500mm
Weight480KG
Using power380/220V 50HZ 2300W

Application

1 , The labeling machine is for Daily Chemical and Food Industry, Labeling max width is 190mm.

2 ,Label inner diameter is 76.2mm, max outer diameter is 330mm.

3 , Bottle diameter thickness is Less than or equal to 30mm height is Less than or equal to 500mm.

Focus

Daily Bottles Front and Back Labeling Machine , Jar Labeling Machine

Tag: square bottle label applicator, jar labeling machine
