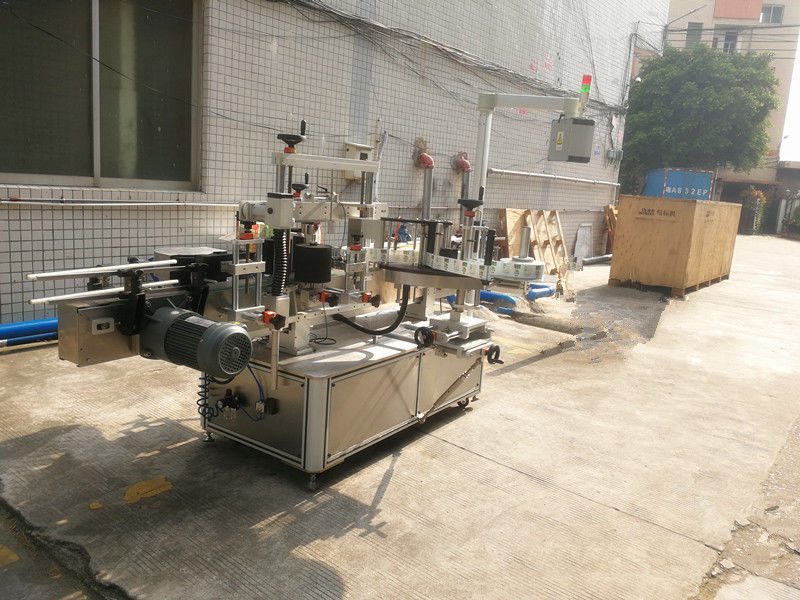

China Square Bottle Labeling Machine , self adhesive labelling machine for hexagonal and square jars supplier
Detailed Product Description

Applications:Sticker LabelingAccuracy Label On Bottle:±1mm
Driven Type:ElectricBottle Diameter/width:30-110mm
Speed Of Labeling:200BS/MinLabel Max Width:190mm
Packaging:Woodcase With PE Firm

Automatic Sticker labeling machine for hexagonal and square jars​


1 ,For label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.

2 ,Applicable products: one side of hex bottle or square bottle, flat bottle, round bottle and some cone bottle ,wrap around for hexagon bottle and square bottle

3 ,Industry: Widely used in cosmetics, daily chemical, electronics, pharmaceutical, metal, plastics and other industries.

4 ,Application examples: Head & Shoulders shampoo flat bottle labeling, Shell Lubricants flat bottle labeling, labeling and fresh wine.

5 ,.Applicable to the pharmaceutical, food, cosmetic and other light industrial products such as oval, square, flat bottles on the single and double sides labeling.

6 ,The HMI is advanced and compatible, easy operation, complete functions, has a wealth of online help function

7 , The bottle dividing device shaped general, any diameter of the bottle without replacement parts, rapid positioning adjustment; bilateral chain correction device ensure the material on the neutral

8 , Speed of labeling 5000-8000 bottles per hour

9 , Automatic optical inspection, have nothing items come without labeling, and without label automatic correction or alarm and automatic detection function, to prevent leakage and waste

10 , Labeling speed, conveyor speed, sub-bottle speed stepless speed, adjust as needed

11 , The machine has the advantages of simple structure, compact structure, convenient operation and maintenance

Technical Parameters

Production speed200BS/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameter/width30-110mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL23048×W1200×1500mm
Using power380/220V 50HZ 2300W


1 , The labeling machine is for Daily Chemical and Food Industry, Labeling max width is 190mm.

2 ,Label inner diameter is 76.2mm, max outer diameter is 330mm.

3 , Bottle diameter thickness is Less than or equal to 30mm height is Less than or equal to 500mm.

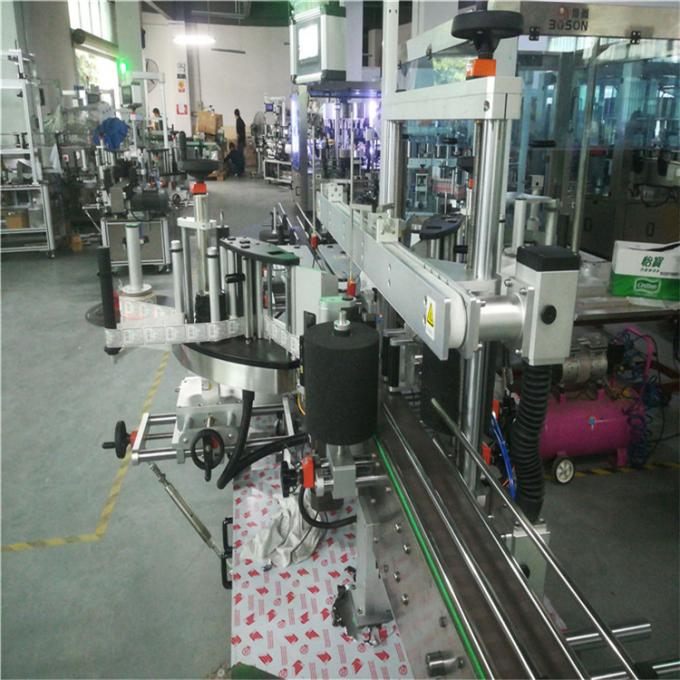

Labeling machine details

Square Bottle Labeling Machine , self adhesive labelling machine for hexagonal and square jars

Tag: square bottle labeler, jar labeling machine
