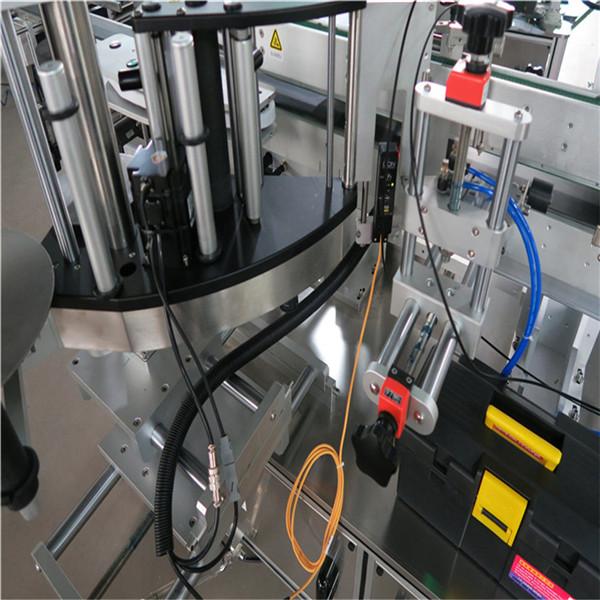

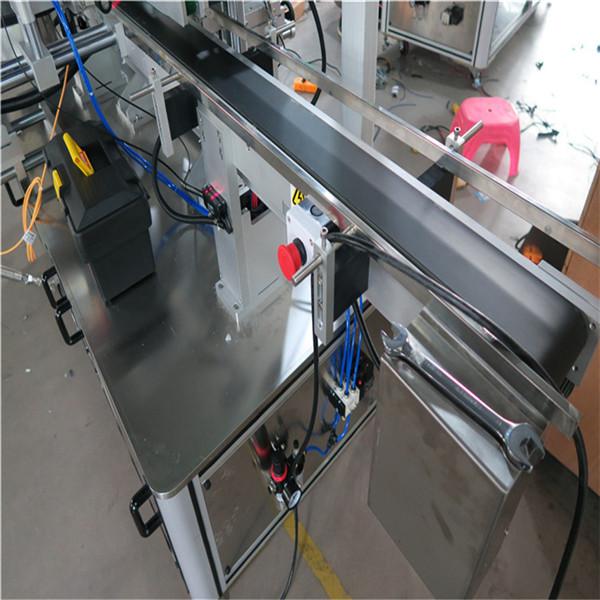

Square Bottle Labeling Machine
Detailed Product Description

Function:Sticker LabelingAccuracy Labeling:±1mm
Driven Type:ElectricBottle Diameter/width:30-110mm
Manufacture Speed:200BS/MinLabel Max Width:190mm
Packaging:Woodcase With PE Firm

Square Bottle Labeling Machine , Double Side Bottle Sticker Labeling Machine

Description

1 ,For label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.

2 ,Applicable products: Requires the side plane, side sweeping surface, the circumferential surface attached label.

3 ,Industry: Widely used in cosmetics, daily chemical, electronics, pharmaceutical, metal, plastics and other industries.

4 ,Application examples: Head & Shoulders shampoo flat bottle labeling, Shell Lubricants flat bottle labeling, labeling and fresh wine.

5 ,.Applicable to the pharmaceutical, food, cosmetic and other light industrial products such as oval, square, flat bottles on the single and double sides labeling.

6 ,The man-machine interface system is advanced and compatible, easy operation, complete functions, has a wealth of online help function

7 , The bottle dividing device shaped general, any diameter of the bottle without replacement parts, rapid positioning adjustment; bilateral chain correction device ensure the material on the neutral

8 , Special elastic pressing equipment ensure seeding materials stability

9 , Automatic optical inspection, have nothing items come without labeling, and without label automatic correction or alarm and automatic detection function, to prevent leakage and waste

10 , Labeling speed, conveyor speed, sub-bottle speed stepless speed, adjust as needed

11 , The machine has the advantages of simple structure, compact structure, convenient operation and maintenance

Features

1 , Suitable for labeling round bottle in different sizes.

2 , Composed by main body, sending paper, receiving paper, bottle orientation etc parts.

3 , Putting the bottle to orientation part by manual and fix the bottle; pressing the off-on switch.

4 , All parts are made of 304 stainless steel with surface finishing and special treatment, which we can guarantee you very good quality.

5 , Small size labeling machine, very easy to operate.

Technical Parameters

Production speed200BS/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameter/width30-110mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL23048×W1200×1500mm
Weight480KG
Using power380/220V 50HZ 2300W

Application

1 , The labeling machine is for Daily Chemical and Food Industry,Labeling max width is 190mm.

2 ,Label inner diameter is 76.2mm,max outer diameter is 330mm.

3 , Bottle diameter thickness is Less than or equal to 30mm height is Less than or equal to 500mm.

Focus

Square Bottle Labeling Machine , Double Side Bottle Sticker Labeling MachineSquare Bottle Labeling Machine , Double Side Bottle Sticker Labeling Machine

Tag: square bottle labeler, square bottle label applicator
