Multi-Function Square Bottle Labeling Machine
Detailed Product Description

Bottle Type:Round Bottle/Square Bottle/ Oval BottleDriven Type:Electric
Automatic Grade:Full AutomaticProduction Speed:200BS/min
Labeling Accuracy:±1mmLabel Max Width:190mm
Bottle Diameter:Thickness≤30mm Height≤500mmUsing Power:380/220V 50HZ 2300W
Bottle Width / Diameter:30-110mmMachine Size:4048mm X 1400mm X 1650mm
Warranty:1 Year

Multi-function labeling system for side labeling on oval or rectangular shaped bottles

Application

1 , The machine is for one side labeling for round bottle ,square bottle ,flat bottle ,oval bottle and some cone bottles in all kinds industries.

2 , Labeling height for standard machine is 190mm ,over this sie,can custom

3 , Speed for flat / square / rectangular / oval / cone bottle 4000-8000B/H

​4, Complete wrap around label for round bottle with high accuracy labeling speed around 2500B/H

​5, Standard labeling machine suit for diameter / width 30-110mm

​6.We can accept custom according to your labeling requirement provide labeling solution

Technical Parameters

Production speed45m/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameterThickness≤30mm height≤500mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL23048×W1200×1500mm
Weight480KG
Using power380/220V 50HZ 2300W

Product Characteristic

1 , The labeling machine with our patent design device of labeling head ,oval bottle correcting device

2 , The independently shape structure is designed specially and independently to label irregular bottles in cosmetic industry. The option air driving and roller labeling set can label round bottles precisely.

3 , The shape belt can be inclined,and the labeling head can be adjusted at eight orientations,so the machine can be adjusted successfully in several minutes for any bottle.

4 , The machine apply the famous server motor,so it realizes real closed loop controlling and it avoids the phenomemnon of the ordinary stepper encoder.All this is designed to improve the accuracy.

5 , Thecorrecting chainstructure is designed specially,so labeled thing is able to be located and labeled precisely.

6 , One labeling head with one PLC ,one motor ,one driver

7 , Mchine can save more than 20sets parameters ,can save for ever

Product's detail

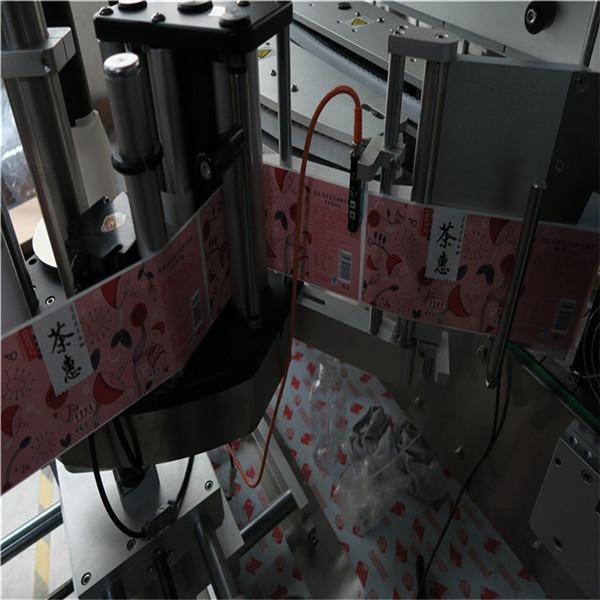

Multi-function Square Bottle Labeling Machine , jar labeling machine

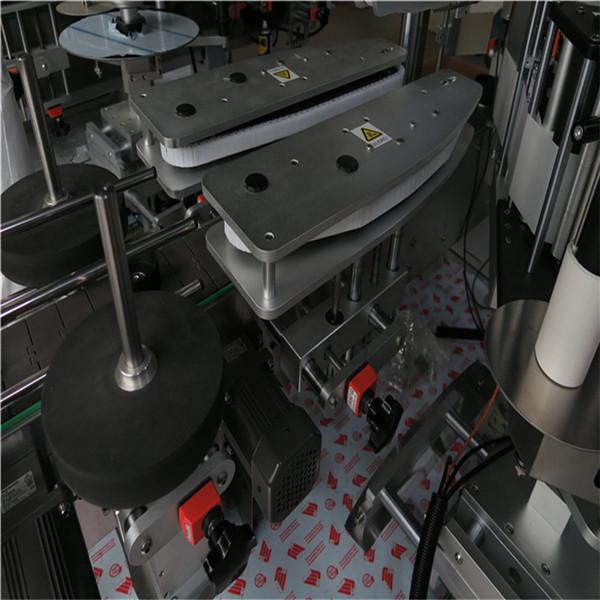

Multi-function Square Bottle Labeling Machine , jar labeling machine
