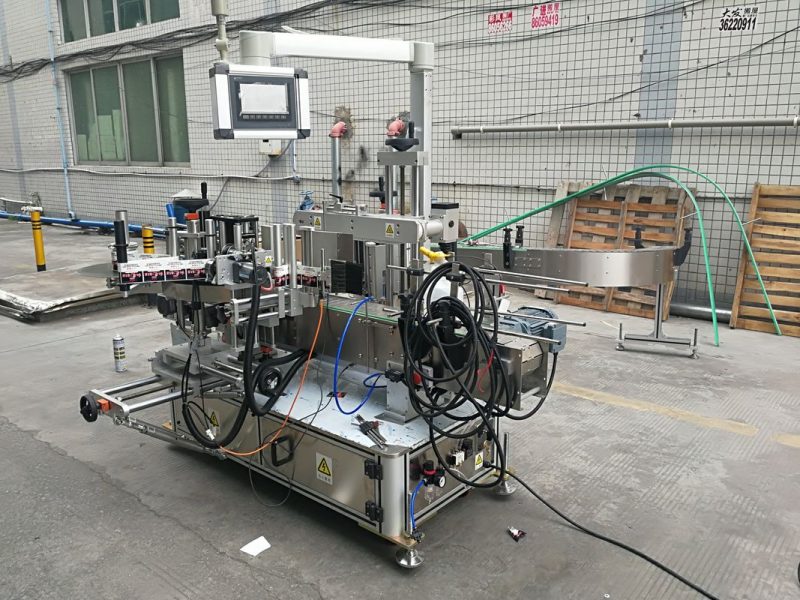

China Full Automatic Adhesive Double Side Bottle Labeling Machine With Coder supplier
Detailed Product Description

Applicable Products:Cosmetics, Drinks, Cleaning, Detergent, Skin Care Products, Hair Care Products, Oil, Tea, Dairy ProductsDelivery:25 Working Days
Label Width Object:190mmCondition:Customized
Accuracy:±1mmInterface:PLC Touch Screen
Jar/ Bottle Width:30-110mmSpeed Of Oval Bottle:5000-8000B/H
Speed Of Flat Bottle:5000-10000B/H

Full automatic Adhesive Double Sides Bottle Labeling Machine with coder

Applications for

1 , This machine suit for double sided labeling of the square bottle,flat bottle and round bottles / jar /container in cosmetic , wine ,beverager, food, detergent, shampoo,pharm industry .

2.The machine is customiezd for customer according to their plant layout .Long 2m

3, Using 82.6mm chain board width ,Suit for diameter / width 30-110mm bottles,flat bottle,round bottle,square bottle and somecone bottles.

4, Labeling head: new design,more stable,width 200mm,suit max label high 190mm,eight orienation adjustment.

5, Machine can work with ribbon date printer and injek printer.

6, When you have a lot of kinds of bottles,when labeling,only need to adjust machine.

7, When you apply label onoval bottle ,only need to adjust synchronous chain correcting device,for oval bottle.other bottle labeling ,stop this device ,very easy and convient

Technical Parameters

Production speed45m/min (5000-8000B/H
Labeling accuracy±1mm
Label max width190mm
Bottle diameter30-110mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL4048×W1400×1650mm
Air source4-6KG 30L/MIn (for round bottle)
Using power220V 50HZ 1200W
Round bottle label height168mm (accept custom)
Weight of machine650kgs

Products Description

1, Adopt mature PLC control system technology, make the whole machine stable and high-speed

2, Use touch screen control system, make operation simple, practical and efficient

3, Upgraded butterfly labeling station design, can be applied for conical bottle labeling

4, Synchronization chain mechanism, to ensure smooth and precise calibration

5, Transparent sticker labeling without bubble, adhesive sticker labeling without wrinkle

6, Widely used and mutil-function with high flexibility

7, Ribbon code printer,laser printeris for options

Tag: automated labeling machine, auto labeler machine
