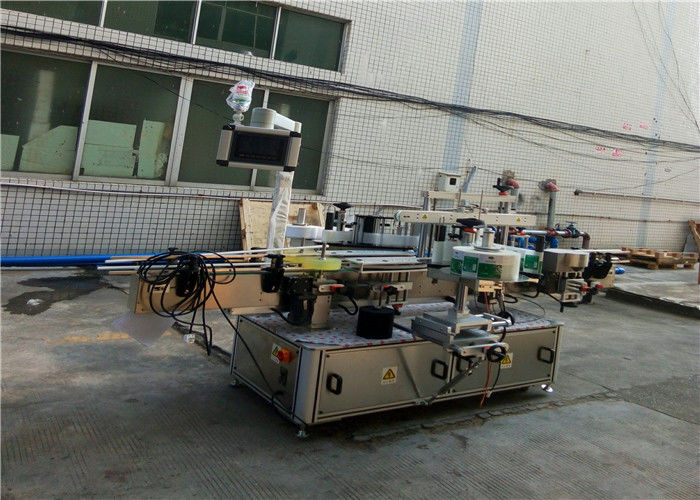

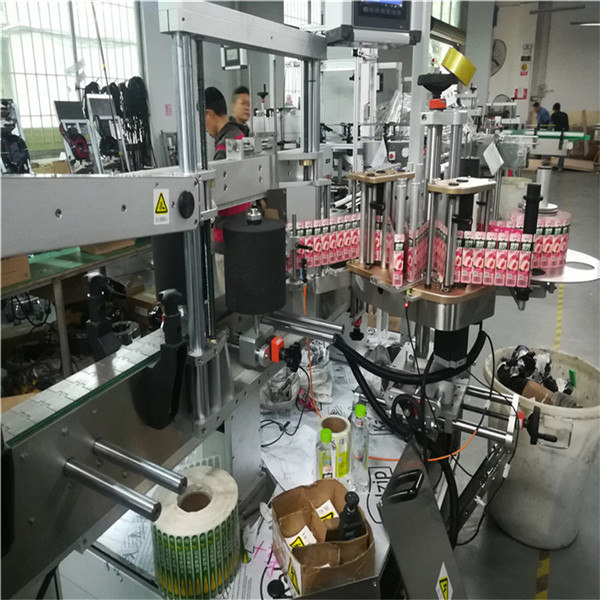

Automatic Two Side Labeling Machine For Flat Square Bottle Jar

Detailed Product Description

Applicable Container Length:	30-100mm	Machine Warranty:	1 Year
Label Width:	190mm	Production Speed:	150pcs
Labeling Accuracy:	±0.5mm	Suttle Weight:	200KG

Automatic Two SideLabeling Machine for Flat Square Bottle Jar

Features

1 , Automatic Self adhesive sticker labeling machine for single side/ two sides label to apply labels on side of square, round or flat products like bottles, glasses bottles, etc.

2 , Automatic Self adhesive sticker labeling machine for single side label to apply labels on single side of square, round or flat products like bottles, glasses bottles, etc.

3 , PCL control system, touch screen operation interface,

4 , Servo motor control labelling head5 , Label sensor for normal self-adhesive label6 , With bottle separating device.7 ,Stainless steel machine construction

Application

1 , The machine applys to sigle side, double and facade labeling of all kinds of quadrate & flat bottles in pharmacy, food beverage, daily chemical industry etc.

2 , The machine adopts PLC process control, photo-electricity bottle checking and label delivery.

3 , The machine are composes of high production effiency, labeling precise and reliable, operation convenience, and wide adaptive scope etc.

4 , Full automatic transmission device, electrcity source place conbine with high precise density steel star gear, including automatic suited machinery safty device.

Advantages

1 , This machine suit for double sided labeling of the square bottle,flat bottle and round bottles.

2 , Installed round bottle institution on it ,realize round bottle labeling ,plus one sensor ,can realize orientation labeling of the round bottles.The speed is around 2500B/H,max label high 168mm (accept custom).

3 , Using 82.6mm chain board width ,Suit for diameter / width 30-110mm bottles,flat bottle,round bottle,square bottle and some irregular bottles.

4 , Labeling head: new design,more stable,width 200mm,suit max label high 190mm,eight orienation adjustment.

5 , Machine can work with ribbon date printer and injek printer.

6 , When you have a lot of kinds of bottles,when labeling,only need to adjust machine.

7 , Only need to adjust oval bottle synchronous chain correcting device,for oval bottle.

Technical Parameters

Production speed	45m/min
Labeling accuracy	±1mm
Label max width	190mm
Bottle diameter	30-100mm
Label inner diameter	76.2mm
Label outer diameter	Max330mm
Outline size	L2000×W700×1400mm
Air source	4-6KG 30L/MIn
Using power	220V 50HZ 1200W

Product Details

Tag: automated labeling machine, auto labeler machine
