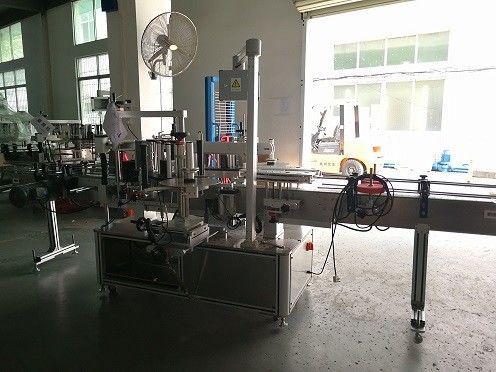

China Full Automatic Self Adhesive Label Applicator Equipment Double Side supplier
Detailed Product Description

Composition:LabelingElectricity:Siemens Schneider
Material Of Labelling:Plastic/GlassMachine Specification:L3048×W1700×1600mm
Label Core Core:76.2mmLabel Core Diameter:330mm

Full Automatic self adhesive label applicator equipment double side


1 , The two electric control system is controlled by PLC, touch operation interface in English. It is convenient and intuitive

2 , It has the function of memory stored program, which can store 20 groups of parameters and can be named for different programs. If you need replace different specifications or use different production capacity, it just simply adjust the different parameters, no need to adjust again, greatly improve the work efficiency.

3 , The labeling head can be adjusted for multi-direction, just convenient operation.

4 , Label position and the stop lever can be adjusted based on the size of posted content, to adapt to a variety of product labeling in the same machine.

5 , The equipment with higher stability and reliability to control motor, so it can realize frequency control of motor speed.

6 , With the method of correlation electric eye, which can ensure the stability of the detected objects, and is not affected by surface color, reflective height inequality, thus ensuring stable stick mark, and without mistake.

7 , All accessories including cabinets, conveyor belt, lever block, and even small screws are all made by stainless steel or aluminum materials, never rust, no pollution to ensure compliance with environmental requirements.

8 , All system control components are all inspected by incoming inspection test strictly, to ensure all functions stable and reliable.

Our Advantages

1 ,Our company has many experienced and professional designers who can provide customized designs of machines for your products according to your requirements.

2 ,Our professional workers are with at least five years of machine production experience, who help to manufacture high quality of machines for your products.

3 ,Also, we have professional engneers who ensures correct manufacturing for the machines according to designs and if the customer needs, they will provide professional after sales service.

4 ,We carry out careful inspection and running and debugging for each machine before they are delivered to the customers, to ensure we maintain the highest customer satisfaction of the machine. Therefore, our company enjoys high level of business credit among our customers in the industry for our high quality of machines delivered.

5 ,Also, we provide excellent after sales service for each customer whenever the customer has any question with the machine. And even after they have bought the machines for many years, we still provide necessary help for the machine to run normally.

6 ,If the client needs customized design of machines for your products, please kindly inform us your material viscosity, power voltage, the speed you require, the size of your vessels, etc. We sincerely welcome your inquiry and visit.


Automatic round bottle self adhesive labeling machine can apply to PET round bottle, plastic bottle, glass bottle for product which have circumferential surface, conical surface and square surface. Adhesive labeling machine widely used in food, toy, chemical, cosmetic, medical and plastic industries.

1 , The main engine adopts servo motor drive, Delta (Taiwan) PLC control system, Delta (Taiwan) touch-type man-machine interface, God as optical fiber (Japan Keyence) devices and other original imported parts, brings together many leading technologies,

2 , The industry has become one of the products of technological superiority. Microcomputer automatic control, user-friendly touch-screen interface, sophisticated mechanical structure, so that simple, powerful; can achieve the number of labels set, labeling count, print control, labeling control, off standard, Tape and other abnormal conditions such as automatic detection and alarm functions; random capacity display and label quantity management; label elastic adjustment; label length and clearance calculation; host height and position adjustment; optional ribbon coding machine.

3 , Label detection photoelectric sensor sensitivity adjustment. The machine is made of high-quality T6 aluminum alloy and SUS304 stainless steel, work well, in line with GMP norms. MPC-AS vertical adhesive labeling machine is a very cost-effective products.

4 , The different packaging objects into the conveyor belt, the conveyor belt to drive the bottle into the sub-region, the transport mechanism continued to move, depending on the optical fiber to detect the bottle, the optical signal to the PLC, the PLC will be processed after the output The signal is transmitted to the stepping motor, which is marked by the stepping motor. The label is pasted to the bottle through the rolling mechanism. The object after the labeling is conveyed by the labeling machine conveyor belt into the next process or container.


1 , Designed for the application of front and/or back panel labels with the capability to label containers

that are round, square, oval or rectangular.

2 ,Heavy-duty construction utilizes oversized drive components combined with an aluminum and stainless steel base frame for years of dependable service.

3 , Various product infeed systems are available that provide precise product spacing and orientation. It can be used stand alone or integrated in-line and matching filling equipment speeds.


1,The bottle labeling is suitable for pharmaceutical, food, cosmetic and other industries, can be attached to the whole week and half circle labeling labeling.

2 ,Optional automatic turntable machine, can be directly connected to the front end of the production line, automatic feeding bottle into the labeling machine, increase efficiency.

Technical Parameters

Production speed45m/min
Labeling accuracy±1mm
Label max width190mm(can be raised according to the require)
Bottle diameterThickness≥30mm height≤500mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL3048×W1700×1600mm
Using power220V 50HZ 1500W

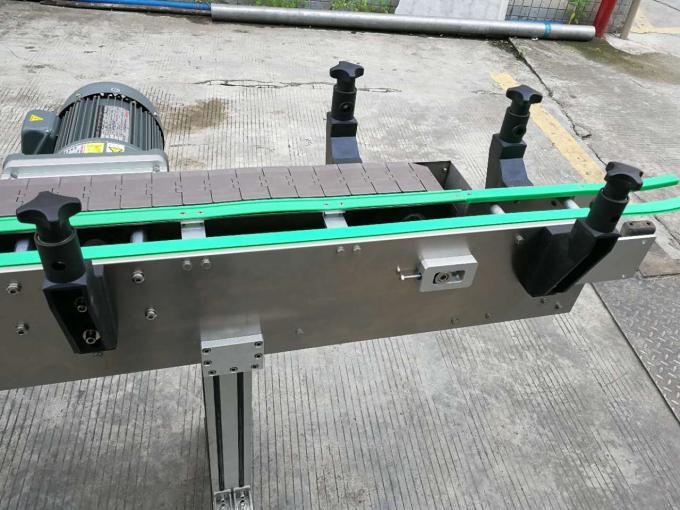

It can provide double line conveyor to connect existing production line ,picture as following

Full Automatic Self Adhesive Label Applicator Equipment Double Side

Automatic turntable can work with labeling machineFull Automatic Self Adhesive Label Applicator Equipment Double Side

Tag: high speed label applicator, automatic bottle labeler
