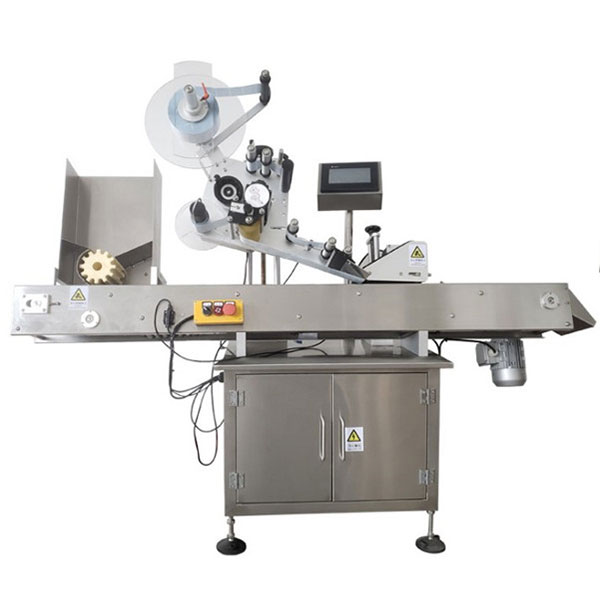

High Speed Servo Labeling Motor Driver Vial Labeling Machine
Detailed Product Description

Model Number:HAWLabeling Objects:Plastic Round Bottle, Plastic Bottle, Plastic And Glass Bottle
Packaging Details:Wooden Case Export PackingAccuracy Of Labeling:±0.5mm
Business Type:Manufacturer, Trading CompanyWeight Of Labeling Machine:150kg

High speed Delta servo labeling motor driver vial labeling machine for small round bottles

Application

This servo motor economy automatic penicillin bottle labeling machine is applicable for all kinds of flat objects such as round containers, pp bottle andpet bottle. In order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.

Features

Touch screen operation ,a truly human-machine communication system is easy to learn and simple to manage.AndPLC control system makes labeling machine easy to operate. The whole machine is made of high class stainless steel and aluminum alloy using anodizing treatment ,it will never rust, which conform to GMP requirements. Our labeling machines adopt well known Japanese, German, American, Korean or Taiwan brand parts.We can also add automatic feeding facility to machinery in accordance with customers special requests.

Technical Parameters

NameVial Labeling Machine
Labeling Speed60-300pcs/min
Height of Object25-95mm
Thickness of Object12-25mm
Height of Label20-90mm
Length of Label25-80mm
Label Roller Inside Diameter76mm
Label Roller Outside Diameter350mm
Accuracy of Labeling±0.5mm
Power Supply220V 50/60HZ 2KW
Weight of Labeling Machine150kg

FAQ

1. What kind of labeling machine do you have?

►Dear Customer, we have automatic and semi-automatic labeling machine for round containers and flat surface. Some modelfor one label and others for two labels or even more. And we can design the machine according to your specific labeling situation.

Thus, pls fell free to send us your labeling requirements, we'll provide you satisfying labeling solution.

2.What should we notice when we make the labels?

►The maximum size of the label roller out side diameter is 320mm; the minimum of the label roller inside diameter is 76mm.

► The direction of the labels: the image should be upward, if without coding the data and exp, the labels roll follow clockwise direction; if with coding, the labels roll should follow anti-clockwise direction.

High speed Delta servo labeling motor driver vial labeling machine for small round bottles

Tag: horizontal labeling machine, small bottle labeling machine
