China High speed small round cans label adhesive machine , eye black bottle label sticker machine for cosmetics supplier
Detailed Product Description

Type:Conveyor Motor Vial Labeling Machine, 7th Battery Label Sticker Machine For ElectronicsLabeling Speed:60-200pcs/min
Packaging Material:WoodBrand Of Object Feeding Motor:GPG（Taiwan）
Object Detect Magic Eye:OMRON（Japan）Height Of Label:20-90mm
Length Of Label:25-80mmHeight Of Object:25-95mm
Thickness Of Label:12-25mm

High speed small round cans label adhesive machine, eye black bottle label sticker machine for cosmetics

Technical Parameters:

NameHigh speed small round cans label adhesive machine, eye black bottle label sticker machine for cosmetics
Height of Label25-95mm
Length of Label25-80mm
Gas Consumption of Printer5Kg/m2(if add coding machine)
Label Roller Inside Diameter76mm
Label Roller Outside Diameter280mm
Height of Object20-90mm
Length of Label25-80mm
The packaging details:wooden case export packing
Power Supply220V 50/60HZ 2KW
Accuracy of Labeling±1mm
Labeling Speed60-200pcs/min
The port of shippingShanghai, China
Shipping days10-25days

Mechanical adjustment

1. Test Labeling, put the bottles on the conveyor belt and Conveyor belt to be placed in the labeling on the bottles, and adjust the transmission speed. Under the condition of machine shut down, adjusted the label and labeling the location of the bottles needed to conduct a trial after the above adjustments labeling.

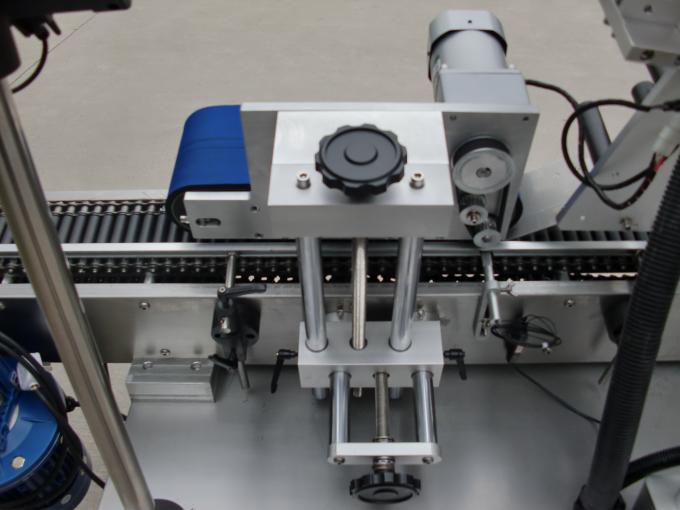

High speed small round cans label adhesive machine , eye black bottle label sticker machine for cosmetics

2. Object detect magic eye:

Requirement of thread in the label tapes: First, check flexibility of all rollers on the line which label will pass; please adjust it until it can work smoothly. For thread in method, please take the sketch map on the next page as reference, arrow direction refers to the direction which labels go through. please take a special note that labels must go through in the middle of the opposed photo-sensor to insure the photo-transmission device is keep running.(up and down position of photo-transmission device can be adjusted to ensure electrical eye can irradiate the gap between labels.

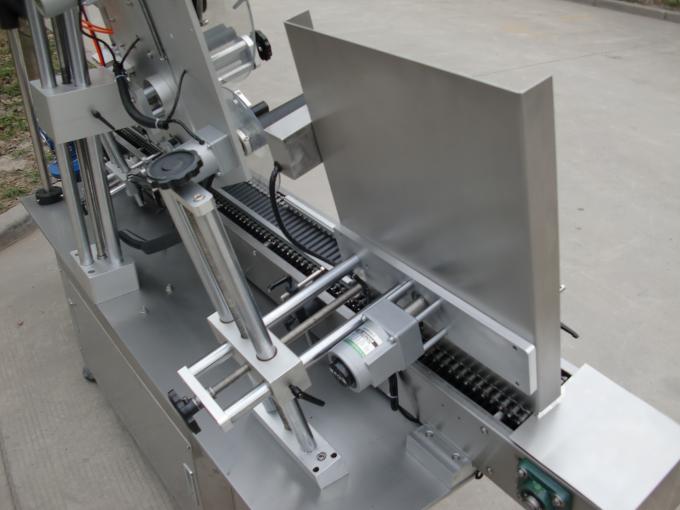

High speed small round cans label adhesive machine , eye black bottle label sticker machine for cosmetics

FAQ:

Used label rolling can not scroll tight

1. reasons: Conveyor belt was too loose or break off between scroll label wheel and used label roll

2. Ways:

Inspect the conveyor belt (round conveyor belt with green color), you can loose the screw and make conveyor belt tighter if it's too loose. Please change the new conveyor belt if it's broken off or connect the break conveyor belt together via heating sintering method.

Brand:

1. The photo electricity and control system adopts advanced component from Germany or Japan or Taiwan.

2. Use PLC man-machine interface control system, which is easy to operate.

PLC:MITSUBISHI(Japan)

Tag: vial sticker labeling machine, small bottle labeling machine
