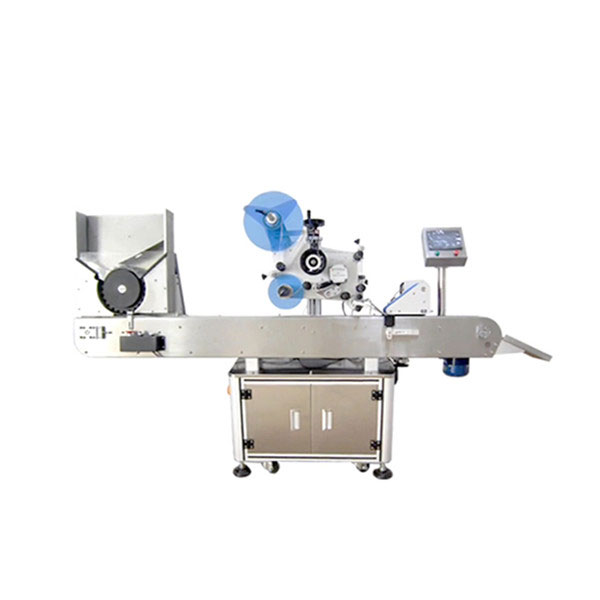

Penicillin Bottle Automatic Labeling Machine

Detailed Product Description

Type:	PLC Changed The Labeling Speed Self Adhesive Sticker Automatic Labeling Machine For Penicillin Bottle	Labeling Speed:	60-300pcs/min
Packaging Material:	Wood	Height Of Object:	25-95mm
Diameter Of Bottle:	12-25mm	Label Roller Inside Diameter:	76mm
Label Roller Outside Diameter:	280mm	Power Supply:	220V 50/60HZ 2KW
Weight Of Labeling Machine:	150kg	Brand Of Label Feeding Motor:	GPG（Taiwan）
Brand Of Label Feeding Magic Eye:	OMRON（Japan）	Brand Of Paper Receiving Proximity Switch:	GPG（Taiwan）

PLC changed the labeling speed self adhesive sticker automatic labeling machine for penicillin bottle

Application :

1. Apply labels: the non-drying label, dry film, electronic supervision code, bar code, etc.
2. Applicable products: demand in big radian on the side of the lateral plane, surface, circular surface attached with a tag of the product.
3. Application industry: widely used in cosmetics, daily chemical, electronics, medicine, hardware, plastic and other industries.
4. Application: shampoo flat bottle labeling, lubricating oil bottle labeling flat, shampoo bottle labeling, etc.

Technical Parameters:

Name : PLC changed the labeling speed self adhesive sticker automatic labeling machine for penicillin bottle
Label Roller Inside Diameter : 76mm
Label Roller Outside Diameter : 280mm
Accuracy of Labeling : ±0.5mm
Power Supply : 220V 50/60HZ 2KWLabeling Speed : 60-300pcs/min
Height of Object : 25-95mm
Diameter of Object : 15-25mm
Height of Label : 20-90mm
Length of Label : 25-80mm
Gas Consumption of Printer : 5Kg/m2(if add coding machine)
Size of Labeling Machine : 2800(L)×1650(W)×1500(H)mm
Weight of Labeling Machine : 180kg

Configuration:

We VKPAK specializes in making labeling machine for about 20 years. We have a lot of well-known partners which brand is popular for all over the world. The horizonal labeling machine parts have PLC, Conveyor , spokes governor, labeling motor driver, Conveyor motor gearbox, label feeding motor, spoke motor etc. There are some object for hozizonal labeling machine, as follows:



Tag: vial sticker labeling machine, small bottle labeling machine
