Cosmetic Square Bottle Labeling Machine
Detailed Product Description

Bottle Shape:Round Bottle/Square BottleDriven Type:Electric
Machine Weight:600kgsProduction Speed:5000-8000B/H
Labeling Accuracy:±1mmLabel High Range:15-190mm
Bottle Size:30-110mmPower:380/220V 50HZ 2300W

Self Adhesive Cosmetic Square Bottle Labeling Machine 600kgs Weight


1, This machine is specially designed to labeling on cylindrical, oval and square containers for cosmetic, household, medical, chemical, food etc..

2, Each module machine is independent and synchronous drive, stable and reliable performance

3, Controlled by PLC and touch screen, with kinds of monitor system to ensure the machine running stable at high speed.

4, We can customize machine according to the special products.

VKPAK machine most important features

1. Spare parts making stickly according to food savety

2. share parts with high precision processing

3. each labeling head use one control system,labeling more stable

4. using new style machine head (patent design),convient to adjust,new design,good stability

5. advanced control system program, high precision of label stop

6. main parts used imported brand,increase stablitily and durable of machine

7.Strickly according to your requirement,including material

8. Change different size bottles,only need to adjust the machine

Technical Parameters

Production speed200BS/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameter/width30-110mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL23048×W1200×1500mm
Using power380/220V 50HZ 2300W

Product Characteristic

1 , Be applicable to square bottles or flat bottles in single side mark.

2 , The independently shape structure is designed specially and independently to label irregular bottles in cosmetic industry.The option air driving and roller labeling set can label round bottles precisely.

3 , The shape belt can be inclined,and the labeling head can be adjusted at eight orientations,so the machine can be adjusted successfully in several minutes for any bottle.

4 , The machine apply the famous server motor,so it realizes real closed loop controlling and it avoids the phenomemnon of the ordinary stepper encoder.All this is designed to improve the accuracy.

5 , The shape structure is designed specially,so labeled thing is able to be located and labeled precisely.

6 , The label is pressed by a flap after applying on bottle and is pressed by the active and passive sponge rollers.So when the label is stuck it hasn’t any air bladder,It is especially applicable to the crystal bottles labeled with transparent labels.

Product's detail

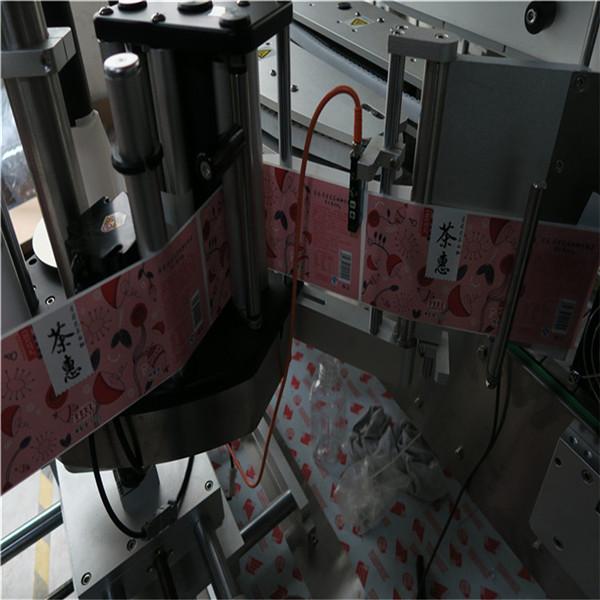

Self Adhesive Cosmetic Square Bottle Labeling Machine 600kgs Weight

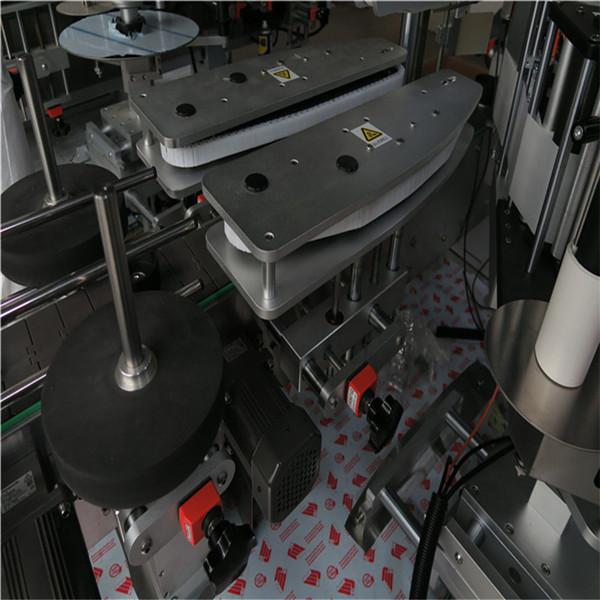

Self Adhesive Cosmetic Square Bottle Labeling Machine 600kgs Weight
