Multi Function Bottle Labeler Labeling Machine / Juice / Cosmetic / Pharma

Detailed Product Description

Warranty Of Machine:	12 Months	Labeling Precision:	±1mm
Label Height Max.:	190mm	Machinery Kinds:	Self Adhesive Labeling Machine
Size Of Equipment:	3048mm X 1700mm X 1600mm	Labeling Goods:	Glass Bottle ,plastic Bottle ,container
Applications:	Bevarage/Drinks/Daily Chemical

Multi Function Bottle Labeler Labeling Machine / Juice / Cosmetic / Pharma

Special Note

1 , Labeled bottle surface must be cleaning ,without water drop or other material

2 , We can provide special connector for front and back termial production line according to your requirement

3 , During machine production,the buyer need provide lots bottles and labels rollers to manufacturer for machine test

4 , For tapered bottle,labels must be making accoring to cone surface strickly

Advantages

1. This machine suit for one side or double sided labeling of the square bottle,flat bottle and round bottles

2 , Installed round bottle labeling device ,adhesiving labeling for round bottles , plus one sensor ,can realize orientation labeling of the round bottles.The speed is around 2500B/H,max label high 168mm (accept custom)

3 , Using 82.6mm chain board width ,applications to bottle diameter / width 30-110mm for flat bottle,round bottle,square bottle and some irregular bottles

4 , Labeling head: Width 200mm,suit max label high 190mm,eight orienation adjustment

5 , Ribbon date printer and injek printer for options

6 , Labeling all kinds of bottles ,only need to adjust machine

7 , For oval bottle, only need to adjust oval bottle labeling device.

Technical Parameters

Production speed	45m/min
Labeling accuracy	±1mm
Label max width	190mm
Bottle diameter	30-100mm
Label inner diameter	76.2mm
Label outer diameter	Max330mm
Outline size	L2000×W700×1400mm
Air source	4-6KG 30L/MIn
Using power	220V 50HZ 1200W

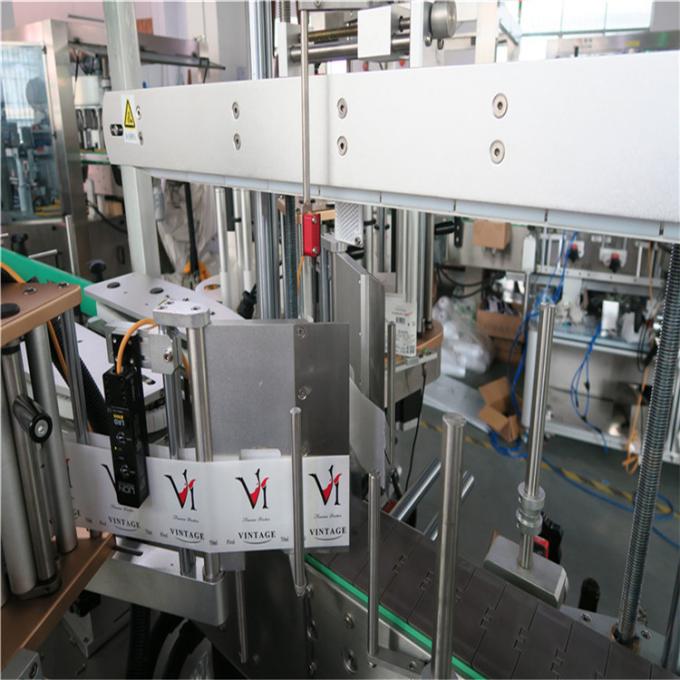

Labeling device

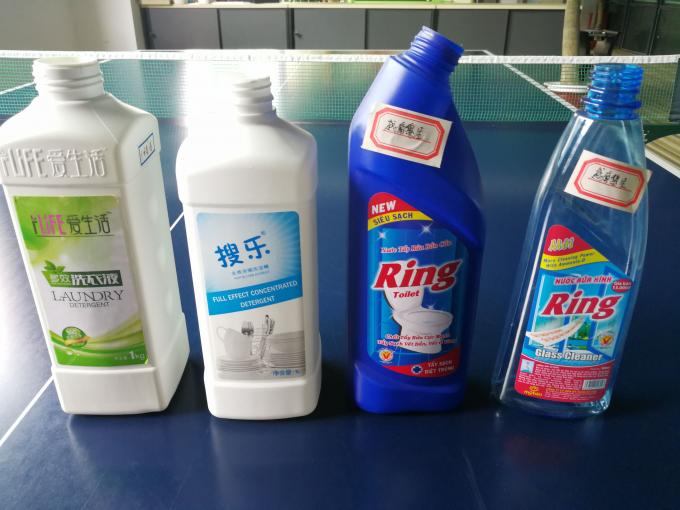

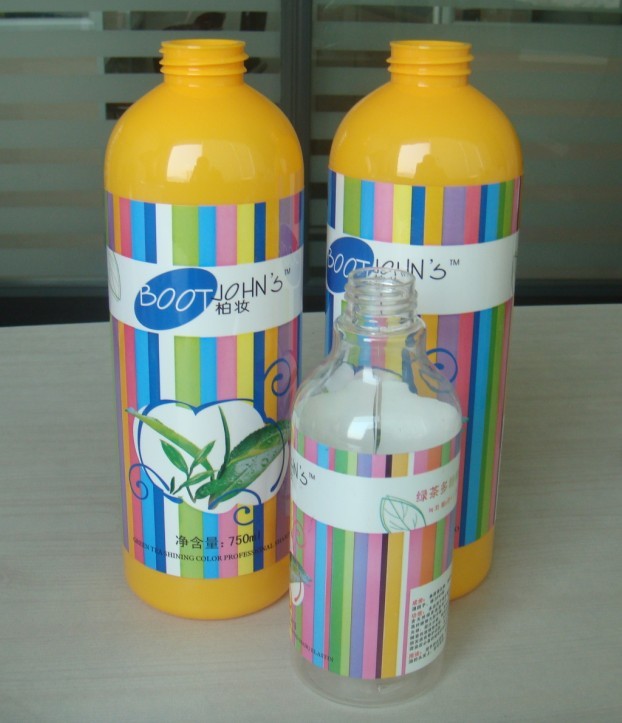

Labeling bottle samples

Tag: automated labeling machine, automated label applicator
