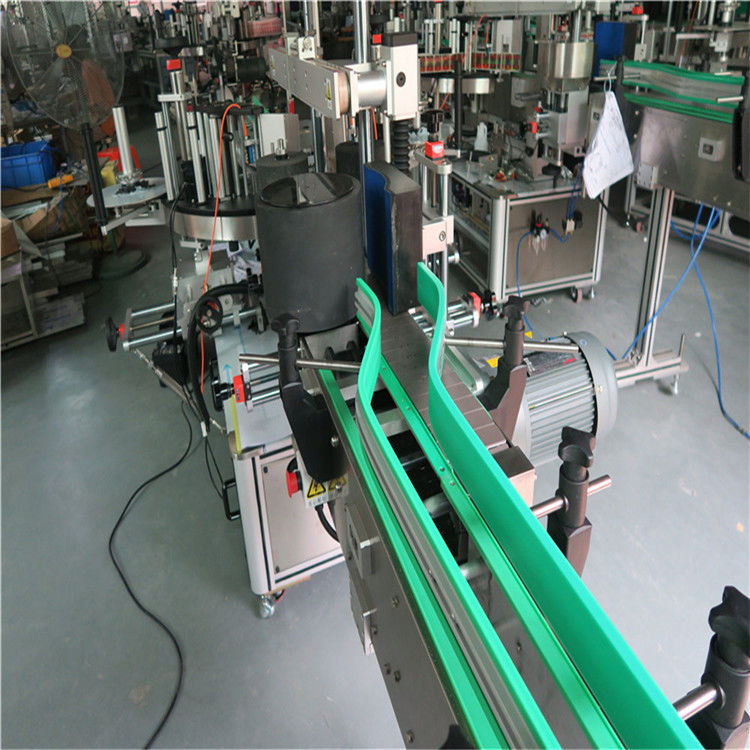

Two Automatic Sticker Labeling Machine Dual Sided Labeler 6000-8000 B/H

Detailed Product Description

Capacity:	Flat Bottle 6000-8000B/H	Precision Of Labeling:	±1mm
Label Height Max.:	190mm	Packaging Label:	Adhesive Labels
Applications:	Bevarage/Drinks/Daily Chemical	Options:	Single Side/Double Sides

Two Automatic Sticker Labeling Machine Dual Sided Labeler 6000-8000 B/H

Features

Specialty:

1. Automatically label 1 or 2 side, or label around bottles.

2. Adopting Germany SIEMENS PLC control unit

3. Adopting easy operation large touch sensitive screen

4. Adopting Germany label sensor

5. Adopting Japan object sensor

6. The machine body is SUS304 stainless steel and 6063 aluminum alloy structure.

7. Labeling head suit for tapered bottles and normal bottle,jar,container

8. Can be equipped with coding machine or printing machine, print clearly. (optional )

9. Such machine is multi-functions, it fit for round bottles, flat bottles, square bottles, oval bottles or other shape products, only have some adjustment is ok.

10. High labeling speed and high precision

11. Can be operated alone or contract with the production line.

12. Such machine can label one circle around on the round bottles, and can locate label.

Application

1 , The machine applys to sigle side, double and facade labeling of all kinds of quadrate & flat bottles in pharmacy, food beverage, daily chemical industry etc.

2 , The machine adopts PLC process control, photo-electricity bottle checking and label delivery.

3 , The machine are composes of high production effiency, labeling precise and reliable, operation convenience, and wide adaptive scope etc.

4 , Start-up system: depend on 3-5 pole motor driving, electronic control speed, full automatic transmission device, electrcity source place conbine with high precise density steel star gear, including automatic suited machinery safty device.

Advantages

1. This machine suit for double sided labeling of the square bottle,flat bottle and round bottles (when the label size is not over 1/3 girth of round bottle

3. Using 82.6mm chain board width ,Suit for diameter / width 30-110mm bottles,flat bottle,round bottle,square bottle and some irregular bottles

4. Labeling head: new design,more stable,width 200mm,suit max label high 190mm,eight orienation adjustment

5. Machine can work with ribbon date printer and injek printer

6. When you have a lot of kinds of bottles,when labeling,only need to adjust machine

7. For oval bottle, only need to adjust oval bottle synchronous chain correcting device

Technical Parameters

Production speed	45m/min
Labeling accuracy	±1mm
Label max width	190mm
Bottle diameter	30-100mm
Label inner diameter	76.2mm
Label outer diameter	Max330mm
Outline size	L2000×W700×1400mm
Air source	4-6KG 30L/MIn
Using power	220V 50HZ 1200W

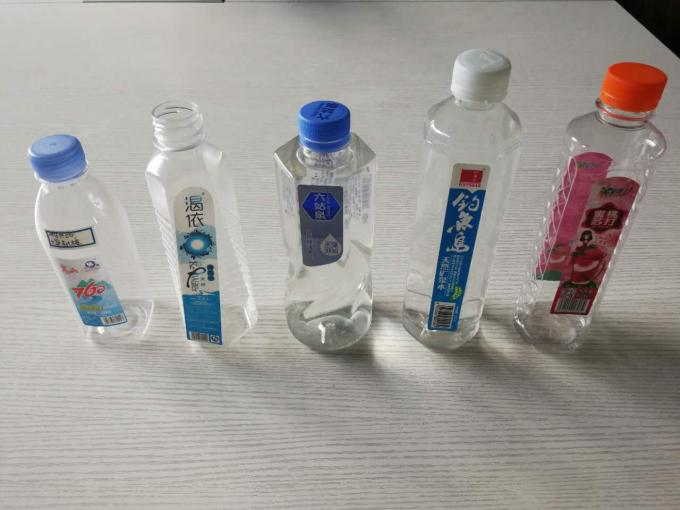

Labeling bottle samples
