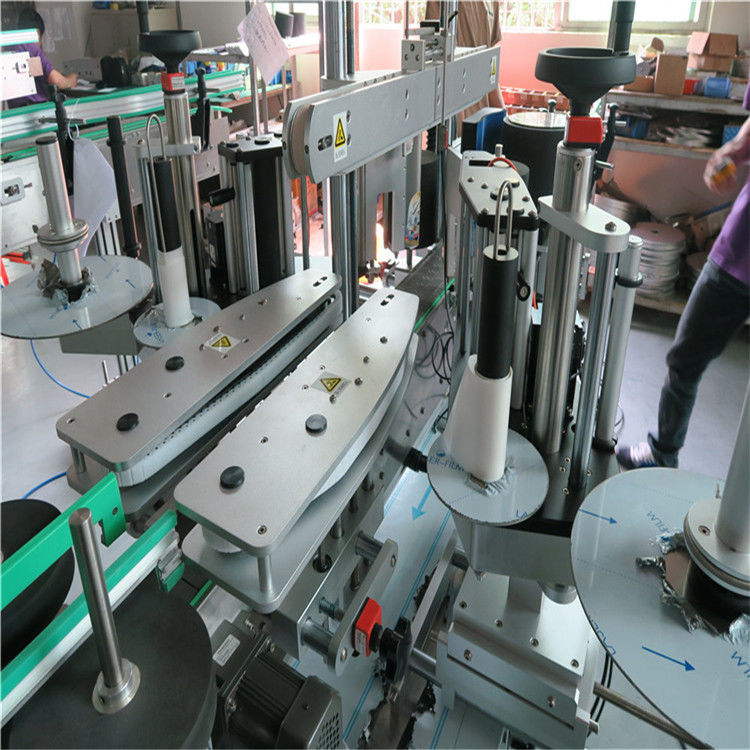

Water Bottle Front And Back Labeling Machine

Detailed Product Description

Configuration:	Double Sides/Single Sides	Object Of Speed:	45m/Min
Objest Of Label Width:	190mm	Condition:	Customized
Accuracy:	±0.5mm	Suttle Weight:	400KG

Full Automatic Sticker Labeling Machine , Water Bottle Front And Back Labeling Machine

After sales service

The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer.

Features

1 , The machine adopts imported PLC control system, or touch switch knob control, elected Japanese Omron (Germany transparent) photoelectric device, variable speed motors, conveyor chain board and imported belt related parts.

2 , Host design absorbed import machines’ labeler transmits way, solving the general domestic labeling unstable factors.

3 , The machine is suitable for different bottles, easy adjustment, can be finished in a short time.

4 , The quick printer adopts the motor drive, gas drive. The words in the ribbon are clear and clean.

5 ,The whole machine is designed to meet GMP standard.

6 , This machine is suitable for medicine, chemical, food, commodity etc. Labeling for bottle and box of flat, square, circle, elliptic, tapered, single orientation etc.

Application

1 , The machine applys to sigle side, double and facade labeling of all kinds of quadrate & flat bottles in pharmacy, food beverage, daily chemical industry etc.

2 , Start-up system: depend on 3-5 pole motor driving, electronic control speed, full automatic transmission device, electrcity source place conbine with high precise density steel star gear, including automatic suited machinery safty device.

3 , The machine adopts PLC process control, photo-electricity bottle checking and label delivery.

4 , The machine are composes of high production effiency, labeling precise and reliable, operation convenience, and wide adaptive scope etc.

Technical Parameters

Production speed	45m/min
Labeling accuracy	±1mm
Label max width	190mm
Bottle diameter	30-100mm
Label inner diameter	76.2mm
Label outer diameter	Max330mm
Outline size	L2000×W700×1400mm
Air source	4-6KG 30L/MIn
Using power	220V 50HZ 1200W

Advantages

1 , This machine suit for double sided labeling of the square bottle,flat bottle and round bottles.

2 , Installed round bottle institution on it ,realize round bottle labeling ,plus one sensor ,can realize orientation labeling of the round bottles.The speed is around 2500B/H,max label high 168mm (accept custom).

3 , Using 82.6mm chain board width ,Suit for diameter / width 30-110mm bottles,flat bottle,round bottle,square bottle and some irregular bottles.

4 , Labeling head: new design,more stable,width 200mm,suit max label high 190mm,eight orienation adjustment.

5 , Machine can work with ribbon date printer and injek printer.

6 , When you have a lot of kinds of bottles,when labeling,only need to adjust machine.

7 , Only need to adjust oval bottle synchronous chain correcting device,for oval bottle.

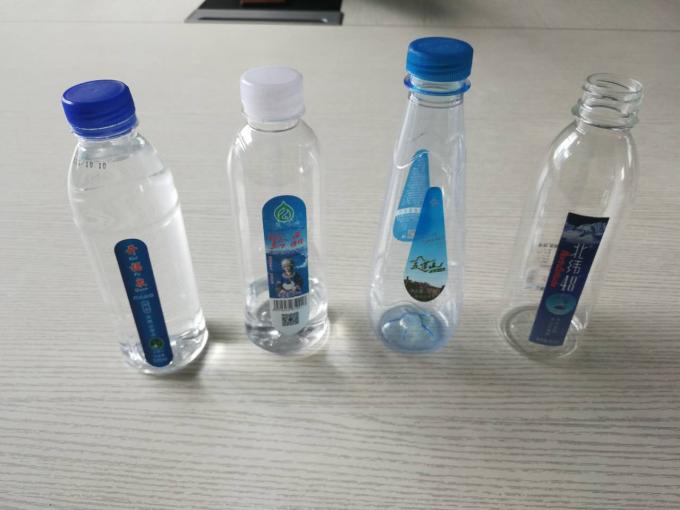

Labeled bottle sample
