Around Automatic Sticker Labeling Machine Flat And Round Bottle
Detailed Product Description

Capacity / H:Round Bottle 2500B/H Around , Flat Bottle 6000-8000B/HLabeling Precision:±1mm
Label Height Max.:190mmPackaging Machinery:Self Adhesive Labeling Machine
Size Of Equipment:3048mm X 1700mm X 1600mmPackaging Label:Adhesive Labels
Applications:Bevarage/Drinks/Daily Chemical

2500B/H Around Automatic Sticker Labeling Machine Flat And Round Bottle

Special Note

1 , Labeled bottle surface must be cleaning ,without water drop or other material

2 , We can provide special connector for front and back termial production line according to your requirement

3 , During machine production,the buyer need provide lots bottles and labels rollers to manufacturer for machine test

4 , For tapered bottle,labels must be making accoring to cone surface strickly

Advantages

1 , This machine suit for double sided labeling of the square bottle,flat bottle and round bottles

2 , Installed round bottle institution on it ,realize round bottle labeling ,plus one sensor ,can realize orientation labeling of the round bottles.The speed is around 2500B/H,max label high 168mm (accept custom)

3 , Using 82.6mm chain board width ,Suit for diameter / width 30-110mm bottles,flat bottle,round bottle,square bottle and some irregular bottles

4 , Labeling head: new design,more stable,width 200mm,suit max label high 190mm,eight orienation adjustment

5 , Machine can work with ribbon date printer and injek printer

6 , When you have a lot of kinds of bottles,when labeling,only need to adjust machine

7 , For oval bottle, only need to adjust oval bottle synchronous chain correcting device

Technical Parameters

Production speed45m/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameter30-100mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL2000×W700×1400mm
Air source4-6KG 30L/MIn
Using power220V 50HZ 1200W

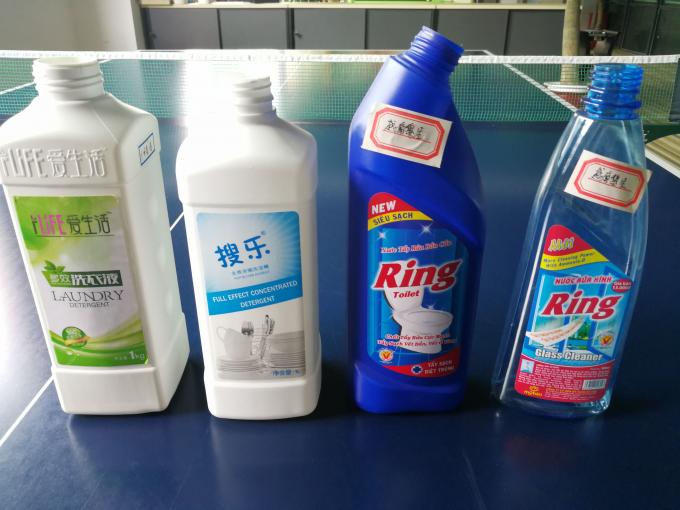

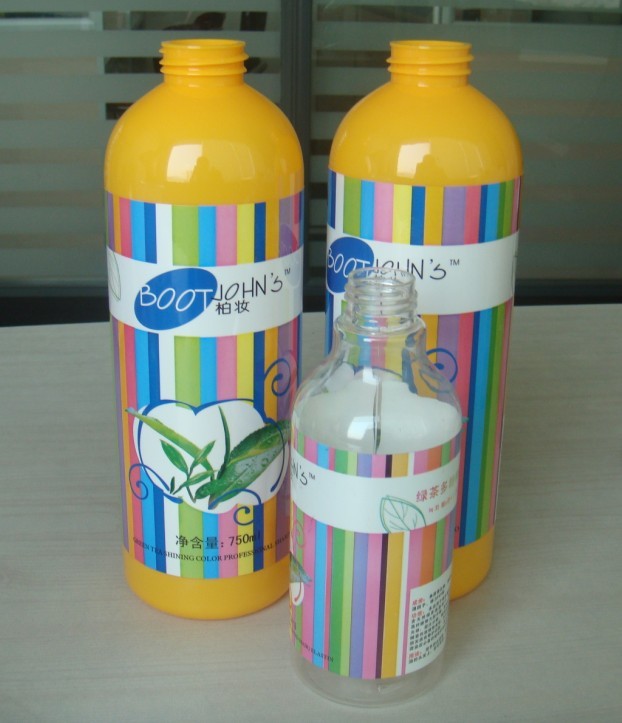

Labeling bottle samples

2500B/H Around Automatic Sticker Labeling Machine Flat And Round Bottle

2500B/H Around Automatic Sticker Labeling Machine Flat And Round Bottle
