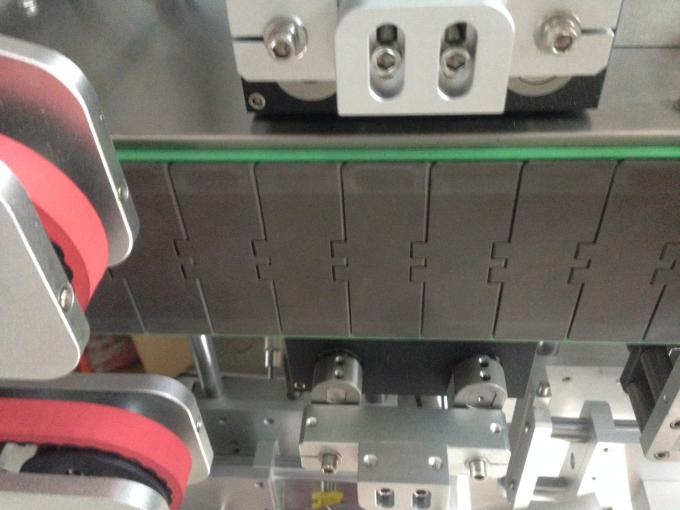

China Sticker Label Applicator , Single / Double Side Round Bottle Labeling Machine supplier
Detailed Product Description

Composition:LabelingKey Electricity:Siemens Schneider
Labelling Material:Plastic/GlassSpecification:L2000×W700×1400mm
Label Roll Core:76.2mmLabel Roll Diameter:330mm

Bottle Label Applicator , Single / Double Side Round Bottle Labeling Machine

Working principle of labeling machine:

1 , The machine can packing different objects into labeling machine belt conveyor, by driving a bottle into the bottle conveying institutions, continuous motion by depending on fiber detected after bottle.

2 , Photoelectric signal transmission to PLC, by PLC output signal processing will lose to the stepping motor, the standard of stepping motor, through the rolling institutions will stick son, tag labeling of objects by labeling machine conveyor belt into the next procedure or containers.

3 , Main machine running adopts stepping motor driver, sets of PLC control system, sets of touch screen, keyence fiber device etc imported components, gathers numerous leading technology, make it become the industry has the advantage of technology products.

4 , Microcomputer automatic control, interface screen friendly human-machine interface, ingenious mechanical structure, make the operation simple and powerful function, Can realize tag number, counting, set print control, labeling, lack of control, marking, colorless such abnormalities automatic detection and alarm functions, Random capacity and the quantity management label, Adjust tightness labels,

5 , The length and tags, Host height and adjust position before, Optional ribbon typewriter one, Labeling and tag with reaction degree detection.

6 , The machine adopts high-quality aluminum and stainless steel, well made, in conformity with the requirements of GMP.


1 , The different packaging objects into the conveyor belt, the conveyor belt to drive the bottle into the sub-region, the transport mechanism continued to move, depending on the optical fiber to detect the bottle, the optical signal to the PLC, the PLC will be processed after the output The signal is transmitted to the stepping motor, which is marked by the stepping motor. The label is pasted to the bottle through the rolling mechanism. The object after the labeling is conveyed by the labeling machine conveyor belt into the next process or container.

2 , The main engine adopts servo motor drive, Delta (Taiwan) PLC control system, Delta (Taiwan) touch-type man-machine interface, God as optical fiber (Japan Keyence) devices and other original imported parts, brings together many leading technologies, The industry has become one of the products of technological superiority. Microcomputer automatic control, user-friendly touch-screen interface, sophisticated mechanical structure, so that simple, powerful; can achieve the number of labels set, labeling count, print control, labeling control, off standard, Tape and other abnormal conditions such as automatic detection and alarm functions; random capacity display and label quantity management; label elastic adjustment; label length and clearance calculation; host height and position adjustment; optional ribbon coding machine; Label detection photoelectric sensor sensitivity adjustment. The machine is made of high-quality T6 aluminum alloy and SUS304 stainless steel, work well, in line with GMP norms. vertical adhesive labeling machine is a very cost-effective products.


1 , Designed for the application of front and/or back panel labels with the capability to label containers that are round, square, oval or rectangular.

2 , Heavy-duty construction utilizes oversized drive components combined with an aluminum and stainless steel base frame for years of dependable service.

3 , Various product infeed systems are available that provide precise product spacing and orientation. It can be used stand alone or integrated in-line and matching filling equipment speeds.

4 , Advanced high torque micro-stepping driven applicators include ratio-offset and speed-following capability for accurate and reliable application of a wide variety of label materials.


1, Round bottle labeling is suitable for pharmaceutical, food, cosmetic and other industries, can be attached to the whole week and half circle labeling labeling.

2 , Optional automatic turntable machine, can be directly connected to the front end of the production line, automatic feeding bottle into the labeling machine, increase efficiency.

Working principle

1 , The control system is provided with a control system to send out the label and attach to the product to be in the position of the label, the product flows through the marking device, the marking belt drives the product to rotate, the label is rolled and a label attached to the action is completed.

2 , The core work principle: the bottle body will be separated from the product, the sensor detects the product passed, the signal back to the label control system, in the appropriate place.

3 , Operation process: put the product (can be connected line) - > product delivery (equipment automatically realized) - > product range - > Product Detection - Labeling - > cover label - collection has been labeling products.

Scope of application

1 , Applicable labels: self adhesive labels, adhesive film, electronic regulatory code, bar code, etc..

2 , Applicable products: products that require a label or film on the circumferential surface.

3 , Application industry: widely used in food, medicine, cosmetics, daily chemical, electronic, metal, plastic and other industries.

4 , Application examples: PET round bottle labeling, plastic bottle labeling, food cans, etc..


1 , Range experienced senior engineer come to client company for installation .

2 , If quality problems arise, the supplier provide technical support and timely supply wearing parts.

3 , Supply systematic operation training for client workers.

4 , client usedthe machine for several years, we can provide a detailed refurbishment program, the original equipment and replacement of hardware and software upgrades, extend machine service life for more than 3-4 years.

5 , Guarantees all equipment (except human factors) within one year, lifetime maintenance sevices.

Apply to

1 , Label inner diameter is 76.2mm,max outer diameter is 330mm.

2 , The machine is apply to the Daily Chemical and Food Industry,

3 , Labeling max width is 190mm(can be raised according to the require).

4 , Bottle diameter of Thickness is greater than or equal to 30mm,height is less than or equal to 500mm.

Technical Parameters

Production speed45m/min
Labeling accuracy±1mm
Label max width190mm(can be raised according to the require)
Bottle diameterThickness≥30mm height≤500mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL2000×W700×1400mm
Using power220V 50HZ 1500W


1 , Most component are made by aluminumofanodizing3.0 side board,cutting the weight and cutting the transportation fees.

2 , The production max speed is about 45m/min.Labeling accuracy is ±1mm.

3 , The machine’s Using power,dimension,Weight are customized.


Sticker Label Applicator , Single / Double Side Round Bottle Labeling Machine

Tag: bottle labeling machinery, bottle labeler machine
