Single Or Double Side Sticker Labelling Machine
Detailed Product Description

Label Speed:60-350pcs/min(Depending On The Length Of Label And Thickness Of Bottle)Thickly Label Object:20-120mm
Label 1:HAS3500Label 2:HAS3510
Height Of Object:30-350mmHeight Of Label:5-180mm
Label Roller Inside Diameter:76mmLabel Roller Outside Diameter:420mm
Power Supply:220V 50/60HZ 3.5KW Single-phaseWeight Of Machine:450kg
Key Word:Self Adhesive Label Printing Machine

self adhesive label printing machine with single or double sides,110/220V 1.5H label sticking machine for square objects

Application:

Self adhesive label printing machine with single or double sides,110/220V 1.5H label sticking machine for square objects is suitable forround, flat, square, cone shape products in Cosmetic, food, pharmaceutical and other light industries, labeling on one size one two sides all ok as client need.

Features:

1. Client can choose to add printer or code machine.

2. It can work separately or work connecting with conveyer.

3. Client can choose to add round bottles mechanism

4. Main body is made of SUS304 &processing by anode of aluminum metal.

5. Head of label is import from japan motor driving.

6. The high-grade photo sensor and control system made in Japan,America and Taiwan

7. PLC control system match human machine interface, it is simple to operation

Configuration:

No.partbrandquantity
1PLCMITSUBISHI(Japan)1
2Main converterDANFOSS(Denmark)1
3HMIWEINVIEW(Taiwan)1
4Servo labeling motorDELTA(Taiwan)2
5Servo labeling motor driverDELTA(Taiwan)2
6Conveyor motorH.Y(Taiwan)1
7Conveyor motor gearboxH.Y(Taiwan)1
8Label feeding motorGPG(Taiwan)2
9Label feeding motor gear boxGPG(Taiwan)2
10Paper receiving motorGPG(Taiwan)2
11Paper receiving motor gear boxGPG(Taiwan)2
12Bottle separating motorGPG(Taiwan)2
13Bottle separating motor gear boxGPG(Taiwan)2
14Bottle separating frequency convertorDELTA(Taiwan)1
15object detect magic eyeOMRON(Japan)1
16optical fiberOMRON(Japan)1
17Label feeding magic eyeOMRON(Japan)1
18paper receiving magic eyeOMRON(Japan)1
19No label alarm magic eyeOMRON(Japan)2
20Label outing detect magic eyeLEUZE(Germany)2

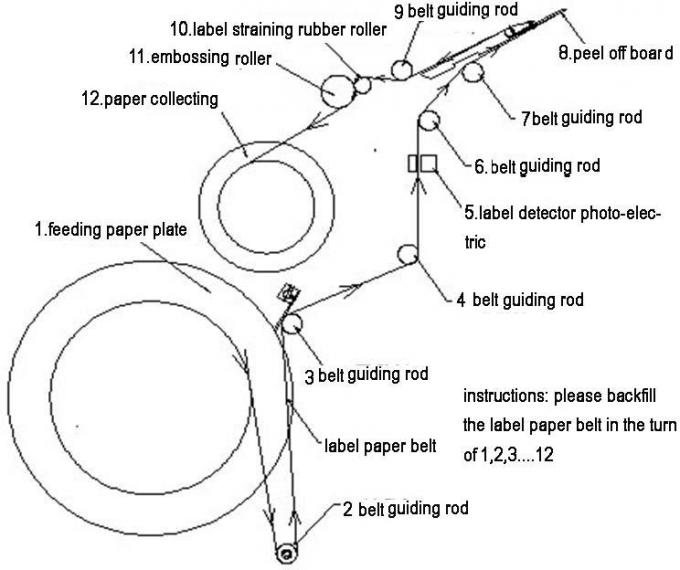

Feeding in labels:

Single or Double Side Sticker Labelling Machine , 110/220V 1.5H self adhesive label printing machine

1. Check and confirm the frontal side and reverse side.

2. Move the guiding ring to a proper position.

3. Cincture the labels paper belt according to routing in the indicated picture.

4. Strain out the labels and make sure the label paper belt is smooth.

5. Fix the end of the label paper band on the paper collecting plate.

6. Push the upside guide ring until it is at the same level with the label edge.

7. After cincturing the label paper band, please lock the label outputting/collecting pressure wheel. Then press the labeling button, manually check the working piece then you will get label output. It is automatic for controller to calculate the exact labeling length and clearance, you can adjust the position and length of labeling output position by way of adjusting the labeling output photoelectric detector.

Suitable product:

Single or Double Side Sticker Labelling Machine , 110/220V 1.5H self adhesive label printing machine
