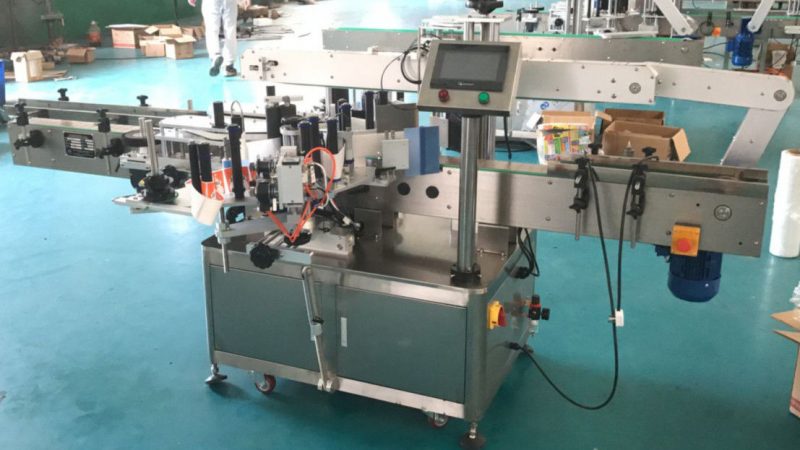

Front And Back Sides Label Applicator Machine With Correcting Mechanism

Detailed Product Description

Sides Of Product:	Single Or Double Sides	Size Of Machine:	2800(L)×1450(W)×1360(H)mm
Labeling Speed:	60-200pcs/min	Height Of Object:	30-280mm
Thickness Of Object:	20-200mm	Length Of Label:	25-300mm
Accuracy Of Labeling:	±1mm	Label Roller Outside Diameter:	320mm
Power Supply:	220v	Transform:	380v, 110v
The Brand Of Server Motor:	TALTA

Front and back sides label applicator with correcting mechanism, automatic double side sticker labeling Machine

Features:

1. The design of special tilting loading material method and conveying by idler wheel makes the objects to label to be located automatically;

2. With widely applicability, which can labeling on the whole or the half of the round bottles, if you want to change the type of the bottle, the adjustment is very simple;

3. With flexible labeling application, the bottles are vertical when labeling, we use the split device to separate the bottles, the machine can operate independently, can also connect with the other machines, such as the filling or capping;

Application:

Automatic bottle labeler double side sticker labeling Machine for pouches standing upis one of the most user friendly. The Machine incorporates latest sophisticated Micro Processor Control Label Dispensing system with user friendly Sensing system for Label and Product. The Machine is suitable for Labeling on Square Bottle, Jars or double pouches. It is capable of Labeling up to 250 products per minute depending on products diameter and label size.

Techinical parameter:

No.	part	brand	quantity
1	PLC	MITSUBISHI(Japan)	1
2	Main converter	DANFOSS(Denmark)	1
3	Bottle separating frequency convertor	DELTA(Taiwan)	1
4	HMI	WEINVIEW(Taiwan)	1
5	Servo labeling motor	DELTA(Taiwan)	2
6	Servo labeling motor driver	DELTA(Taiwan)	2
7	Conveyor motor	H.Y(Taiwan)	1
8	Conveyor motor gearbox	H.Y(Taiwan)	1
9	Spoke motor	GPG(Taiwan)	1
10	Spoke motor gearbox	GPG(Taiwan)	1
11	Bottle separating motor	GPG(Taiwan)	2
12	Bottle separating motor gear box	GPG(Taiwan)	2
13	object detect magic eye	OMRON(Japan)	1
14	optical fiber	OMRON(Japan)	1
15	Powder	DELTA(Taiwan)	1
16	No label alarm magic eye	OMRON(Japan)	2
17	Label outing detect magic eye	LEUZE(Germany)	2

Example for two sides labeling machine:

a. 250g 195mm (L)x 125mm (W)

b. 500g 265mm (L) x 135mm (W)

c. 1kg 335mm (L) x 145mm (W)

the size of square pouches: 100-110mm

the labeling speed: 200pcs/min
