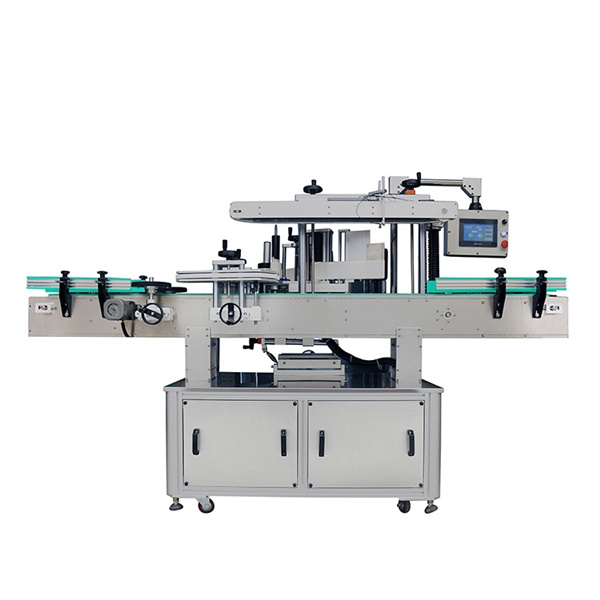

Two Sides Self Adhesive Labeling Machine
Detailed Product Description

Capacity Per Hour:Oval Bottle 5000-8000B/HLabeling Precision:±1mm
Label Height Max.:190mmPaper Roll Inner Diameter:76.2mm
Label Outer Diameter:330mmPackaging Material:Adhesive Labels
Electric Machine:Imported MotorDomain:Bevarage/Drinks/Daily Chemical

Fully Automatic Two Sides Self-adhesive Labeling applicator

Applications for

1 , This double sides sticker labeling machine suit for front and back labelslabeling of the square bottle,flat bottle and round bottles (when the label size is not over 1/3 girth of round bottle) speed 5000-8000B/H

2 , It can install round bottle institution on it ,realize wrap around labeling of the round bottle,plus one sensor ,can realize orientation labeling of the round bottles. The speed is around 2500B/H, max label high 168mm (accept custom)

3 , Suit for diameter / width 30-110mm bottles, flat bottle, round bottle, square bottle and somecone bottles. can accept custom according to your labeled samples .

4 , Labeling head: new type, width 200mm, suit max label high 190mm, eight orienation adjustment

5 , We can provide ribbon date printer and injek printer for options

6 , When you have a lot of kinds of bottles,when labeling,only need to adjust institution

7 , If you also have oval bottle,then only need to adjust oval bottle synchronous chain correcting institution , easy to opearate

8 , We can also design according to your requirement

9. The machine suits for the sticking of the one-side and two-side self-adhesive on the all kinds of square (flat) bottle for the industry of pharmacy, foodstuff, daily chemicals, cosmetics and culture products.

10. The machine used PLC programmable control, photo electricity detection label-sending, has high production efficiency, accurate and reliable label-sticking, convenient operation and wide suitability.

RFA

1. Q: Can you do customized labeling machine?

A: Yes, of course. We are a labeling machine manufacturer with more than 10 years experience, we can do labeling machine according to customer's special requirements.

2. Q: Is there any installation direction after we receive the machine?

A: Yes, we have a proffesional technical team and warm after service, we will solve any problem you meet during the installation and labeling production in time.

Technical Parameters

Production speed45m/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameter30-100mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL4048×W1400×1650mm
Air source4-6KG 30L/MIn
Using power220V 50HZ 1200W

Major Characteristics

1, This labeling machine is suitable for foodstuff, daily chemical, pharmaceutical, pesticide and other lines. For rectangle bottle, oval bottle with double sides labeling or single side labeling.

2, Automatically controlled by computer (PLC), touch screen control panel, easily operation.

3, No bottle no labeling. Meanwhile it can save ten group labeling parameters. Change different specifications of bottles for labeling fast.

4, It adopts servo motor to realize closed type controlling, low malfunction rate, high efficiency as well as fast speed.

5, All parts which contact materials are made of good quality stainless steel, the surface of machine is well polished, friendly environmental, meet GMP standard.

Labeling bottles

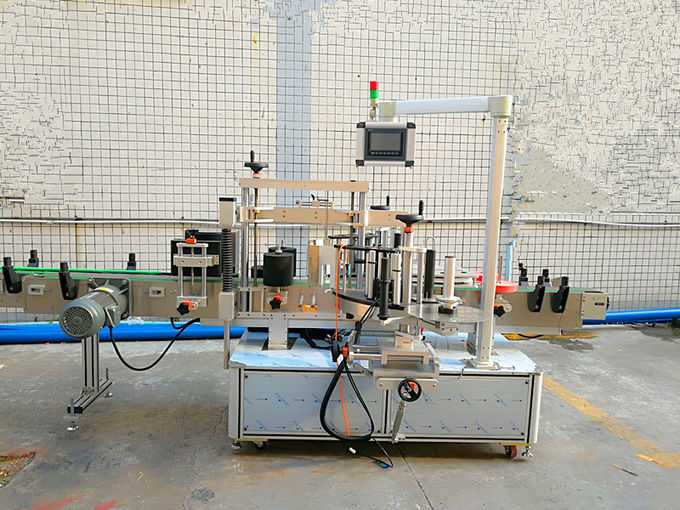

Two Sides Self Adhesive Labeling Machine , Fully Automatic Label Applicator

Tag: self adhesive sticker labeling machine, self adhesive labeler
