550KG Self Adhesive Labeler For Flat
Detailed Product Description

Applicable Container Length:30-100mmMachine Warranty:1 Year
Conveyor Height:950mmProduction Speed:5000-8000B/H
Labeling Accuracy:±1mmM.W:550KG

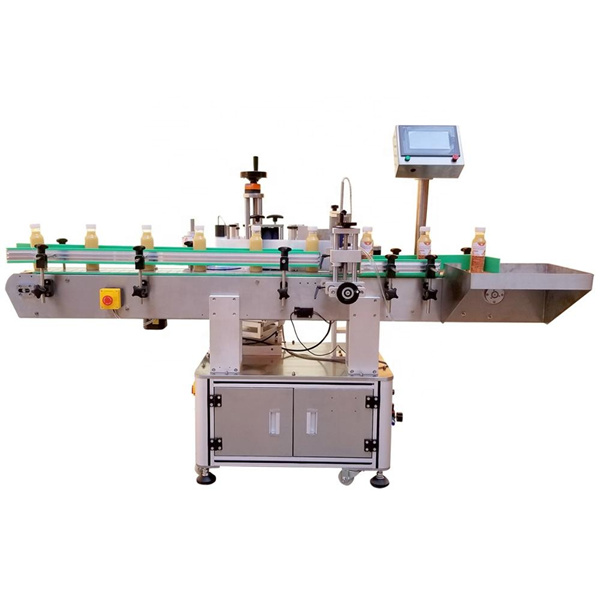

550KG Self Adhesive Labeling Machine For Flat / Oval / Square / Round Bottle

Features

1 , Suitable for applying Front and Back Labels on Flat/Oval/Square/Round shape containers with output Up to 120 Labels per minute depending on products and label size.

2 , Machine suitable for Vials and Small Sizes of Bottles from Glass, Plastic, PET, HDPE, PP etc. Machine with higher speed operation in overall compact size

3 , It is capable of Labelling up to 5000-8000B/H, depending on product diameter and label size.

Function

1 , This machine can automatically attach adhesive labels or stickers film on the side surface of the product/ large curvature, circumference, and square surface, etc.

2 , Attached location is accuracy and stable; to avoid manual labeling, inefficient film, attached skew, foaming and folds, and irregular attached location problems, reduce cost, make product more nice, so that improve product competitiveness.

3 , Labeling smooth, not wrinkled, no bubbles, labeling accuracy, high efficiency, good stability.

4 , Use the flexible adjustment of the pressure the top agencies and guides, ingenious design for combination of mechanical and structural adjustment and the winding labels. labeling location can be fixed after adjustment, so that it is simple and time-saving for adjustment of the conversion between different products and labels Winding.

5 , For flat bottles, square bottles, arc bottles, this machine use double sides rigid with simultaneous oriented chain, can make sure the bottles on the middle automatically.

6 , Use PLC control system, touch screen, has standard sensor electronic control system, human control interface show prompted comments and complete function, operation function, easy to use and maintain.

Application

1 , The machine applys to sigle side, double and facade labeling of all kinds of quadrate & flat bottles in pharmacy, food beverage, daily chemical industry etc.

2 , The machine adopts PLC process control, photo-electricity bottle checking and label delivery.

3 , The machine are composes of high production effiency, labeling precise and reliable, operation convenience, and wide adaptive scope etc.

4 , Start-up system: depend on 3-5 pole motor driving, electronic control speed, full automatic transmission device, electrcity source place conbine with high precise density steel star gear, including automatic suited machinery safty device.

Advantages

1 , This machine suit for double sided labeling of the square bottle, flat bottle and round bottles.

2 , Installed round bottle institution on it ,realize round bottle labeling ,plus one sensor ,can realize orientation labeling of the round bottles. The speed is around 2500B/H, max label high 168mm (accept custom).

3 , Using 82.6mm chain board width ,Suit for diameter / width 30-110mm bottles, flat bottle, round bottle, square bottle and some irregular bottles.

4 , Labeling head: new design, more stable, width 200mm, suit max label high 190mm, eight orienation adjustment.

5 , Machine can work with ribbon date printer and injek printer.

6 , When you have a lot of kinds of bottles, when labeling, only need to adjust machine.

7 , Only need to adjust oval bottle synchronous chain correcting device, for oval bottle.

Technical Parameters

Production speed45m/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameter30-100mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL2000×W700×1400mm
Air source4-6KG 30L/MIn
Using power220V 50HZ 1200W

Product Details

550KG Self Adhesive Labeler For Flat / Oval / Square / Round Bottle

Tag: self adhesive sticker labeling machine, self adhesive labeler
