Detailed Product Description
Applicable Products: | Cosmetics, Drinks, Cleaning, Detergent, Skin Care Products, Hair Care Products, Oil, Tea, Dairy Products | Delivery: | 15 Working Days |
---|---|---|---|
Label Width Object: | 190mm | Condition: | Customized |
Accuracy: | ±1mm | Interface: | PLC Touch Screen |
Jar/ Bottle Width: | 30-110mm | Speed Of Oval Bottle: | 5000-8000B/H |
Speed Of Flat Bottle: | 5000-10000B/H |

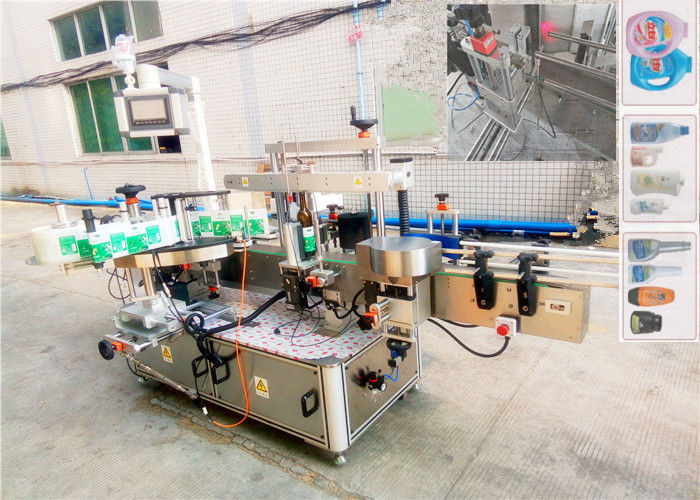

Automatic Self-Adhesive labeling machine for Shampoo & Detergents
Applications for
1 , This machine suit for double sided labeling of the square bottle,flat bottle and round bottles / jar /container in cosmetic ,wine ,beverager, food, detergent, shampoo,pharm industry .
2 , Installed round bottle institution on it ,realize round bottle labeling ,plus one sensor ,can realize orientation labeling of the round bottles.The speed is around 2500B/H,max label high 168mm (accept custom).
3 , Using 82.6mm chain board width ,Suit for diameter / width 30-110mm bottles,flat bottle,round bottle,square bottle and somecone bottles.

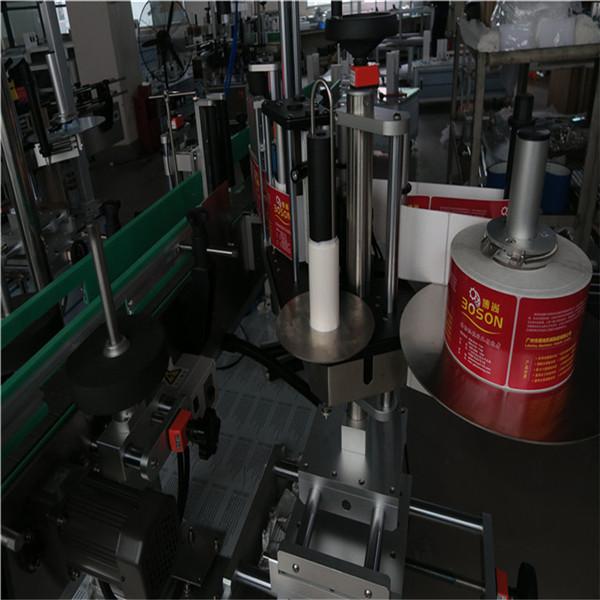

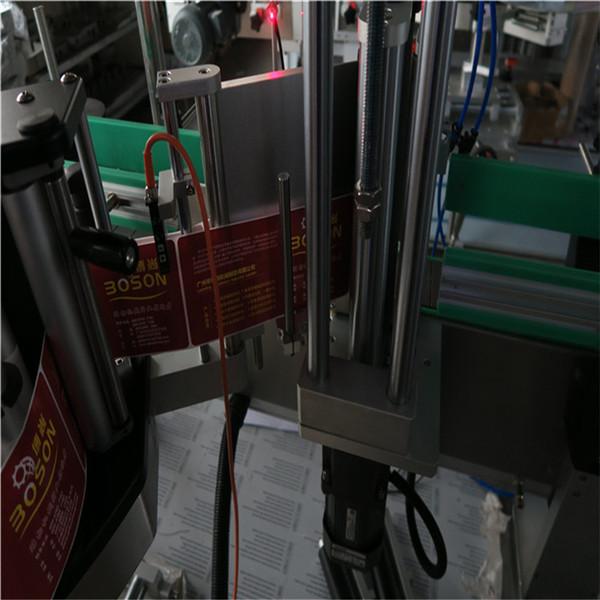

4 , Labeling head: new design,more stable,width 200mm,suit max label high 190mm,eight orienation adjustment.
5 , Machine can work with ribbon date printer and injek printer.
6 , When you have a lot of kinds of bottles,when labeling,only need to adjust machine.
7 ,When you apply label onoval bottle ,only need to adjust synchronous chain correcting device,for oval bottle.other bottle labeling ,stop this device ,very easy and convient
Technical Parameters
Production speed | 45m/min (5000-8000B/H |
Labeling accuracy | ±1mm |
Label max width | 190mm |
Bottle diameter | 30-110mm |
Label inner diameter | 76.2mm |
Label outer diameter | Max330mm |
Outline size | L4048×W1400×1650mm |
Air source | 4-6KG 30L/MIn (for round bottle) |
Using power | 220V 50HZ 1200W |
Round bottle label height | 168mm (accept custom) |
Weight of machine | 650kgs |
Products Description
1 ,Adopt mature PLC control system technology, make the whole machine stable and high-speed
2 ,Use touch screen control system, make operation simple, practical and efficient
3 ,Upgraded butterfly labeling station design, can be applied for conical bottle labeling
4 ,Synchronization chain mechanism, to ensure smooth and precise calibration
5 ,Transparent sticker labeling without bubble, adhesive sticker labeling without wrinkle
6 ,Widely used and mutil-function with high flexibility
7 ,Ribbon code printer,laser printeris for options
Product Details
Tag: oval labeling machine, double side sticker labelling machine
