China Self Adhesive Cylindrical / Oval Bottle Labeling Machine with PLC Touch Screen supplier
Detailed Product Description

Applicable Products:Cosmetics, Drinks, Cleaning, Detergent, Skin Care Products, Hair Care Products, Oil, Tea, Dairy ProductsDelivery:15 Working Days
Label Width Object:190mmCondition:Customized
Accuracy:±1mmInterface:PLC Touch Screen
Jar/ Bottle Width:30-110mmSpeed Of Oval Bottle:5000-8000B/H
Speed Of Flat Bottle:5000-10000B/H

Self Adhesive labeling machine for elliptical bottles / cylindrical / flat / square / rectangular

Applications for

1 , This machine suit for double sided labeling of the square bottle,flat bottle and round bottles / jar /container in cosmetic , wine , beverager, food, detergent, shampoo,pharm industry .

2 , Installed round bottle institution on it ,realize round bottle labeling ,plus one sensor ,can realize orientation labeling of the round bottles.The speed is around 2500B/H,max label high 168mm (accept custom).

3 , Using 82.6mm chain board width ,Suit for diameter / width 30-110mm bottles,flat bottle,round bottle,square bottle and somecone bottles.

4 , Labeling head: new design,more stable,width 200mm,suit max label high 190mm,eight orienation adjustment.

5 , Machine can work with ribbon date printer and injek printer.

6 , When you have a lot of kinds of bottles,when labeling,only need to adjust machine.

7 ,When you apply label onoval bottle ,only need to adjust synchronous chain correcting device,for oval bottle.other bottle labeling ,stop this device ,very easy and convient

Technical Parameters

Production speed45m/min (5000-8000B/H
Labeling accuracy±1mm
Label max width190mm
Bottle diameter30-110mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL4048×W1400×1650mm
Air source4-6KG 30L/MIn (for round bottle)
Using power220V 50HZ 1200W
Round bottle label height168mm (accept custom)
Weight of machine650kgs

Products Description

1 ,Adopt mature PLC control system technology, make the whole machine stable and high-speed

2 ,Use touch screen control system, make operation simple, practical and efficient

3 ,Upgraded butterfly labeling station design, can be applied for conical bottle labeling

4 ,Synchronization chain mechanism, to ensure smooth and precise calibration

5 ,Transparent sticker labeling without bubble, adhesive sticker labeling without wrinkle

6 ,Widely used and mutil-function with high flexibility

7 ,Ribbon code printer,laser printeris for options

Product Details

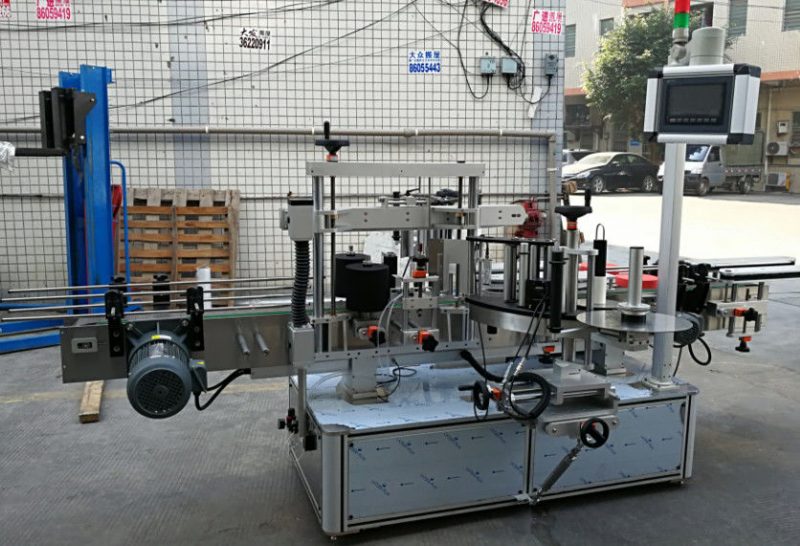

Self Adhesive Cylindrical / Oval Bottle Labeling Machine with PLC Touch Screen

Tag: oval labeling machine, double side sticker labelling machine
